Ultra Vision Lighting

Toyota 200 Series Land Cruiser In-Grille Light Bar Integration Kit

Toyota 200 Series Land Cruiser In-Grille Light Bar Integration Kit

Regular price $995.00
Regular price Sale price $995.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $248.75 AUD fortnightly with More info

Toyota 200 Series Land Cruiser In-Grille Light Bar Integration Kit

Boost your lighting set-up on the front of your Toyota 200 Series Land Cruiser without investing in a bull bar.

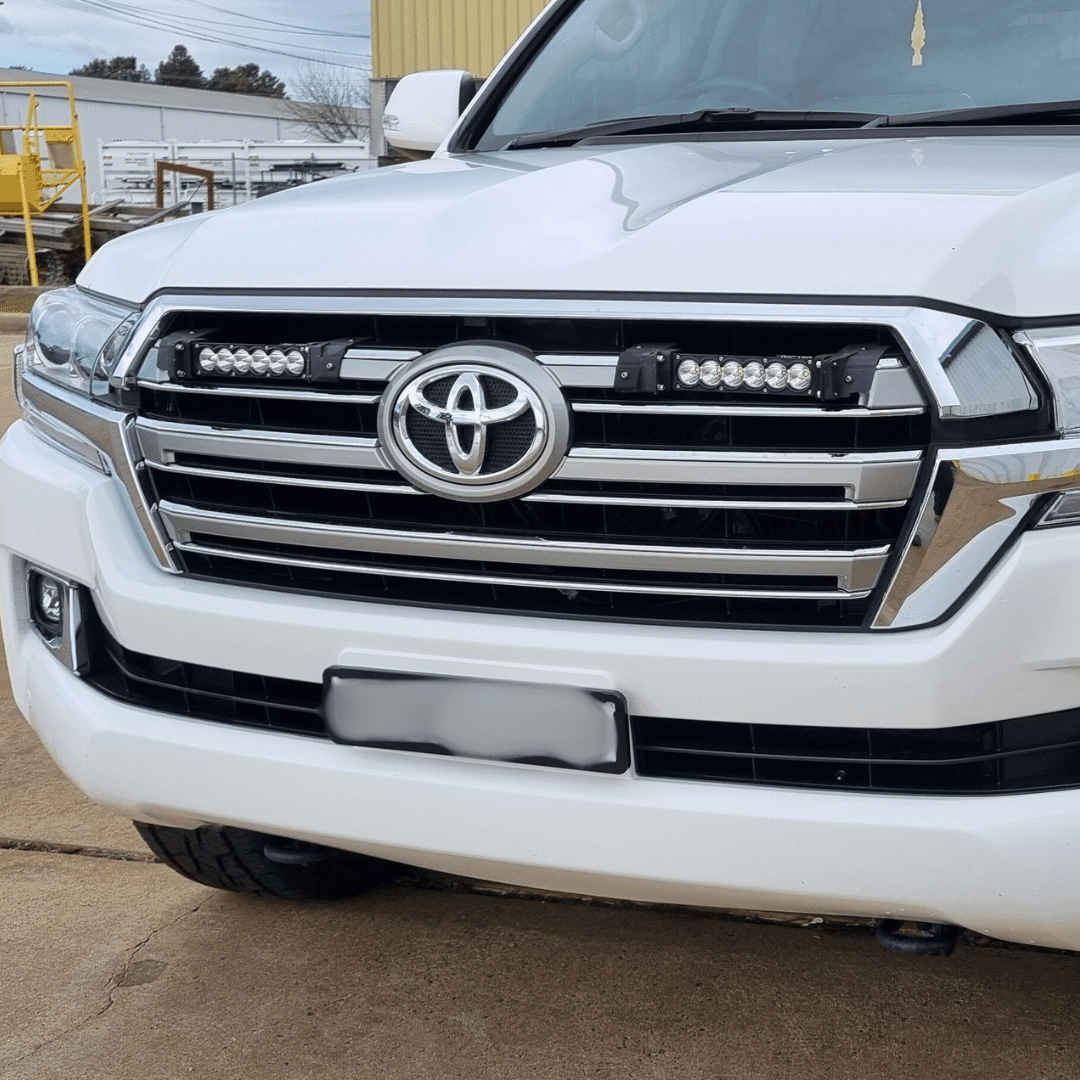

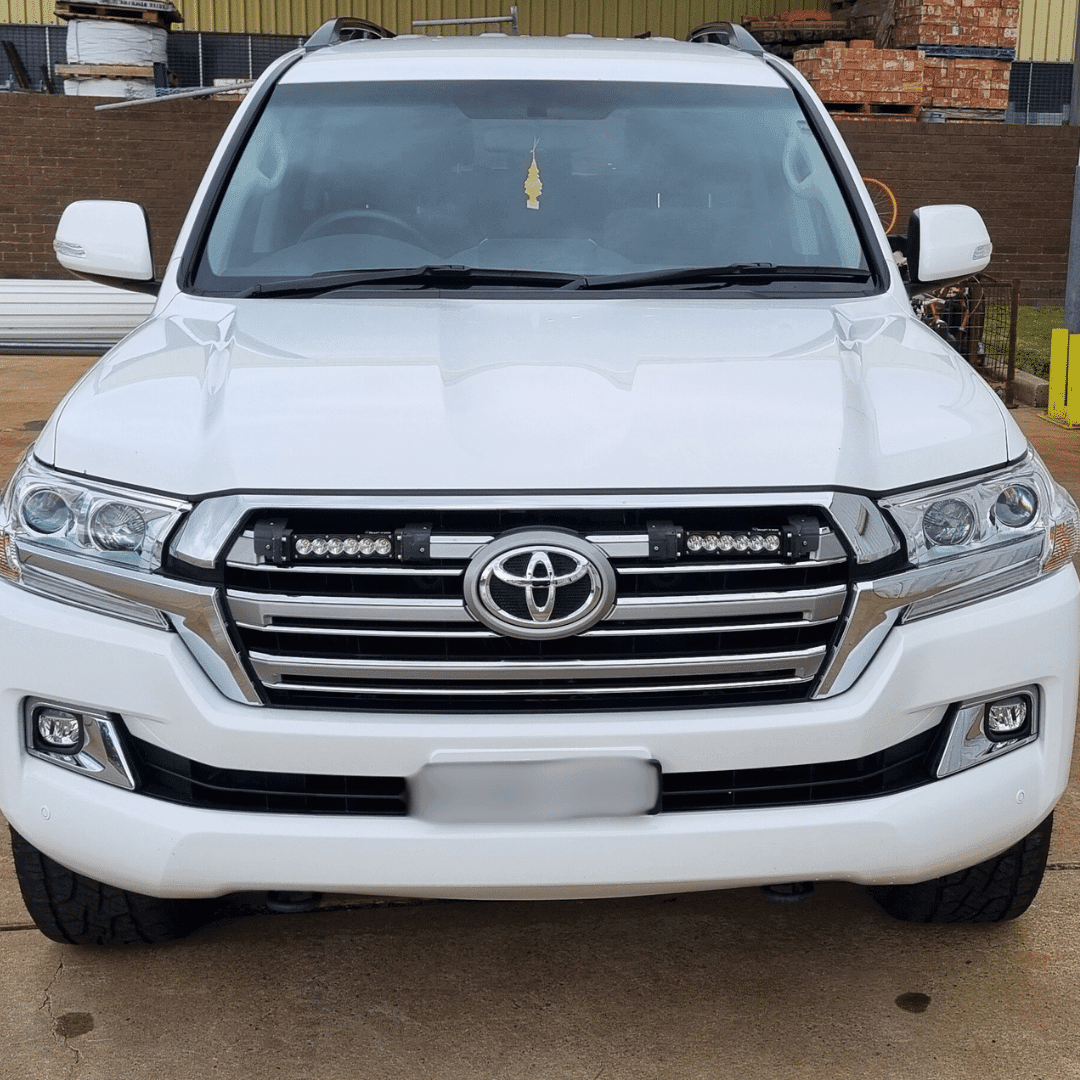

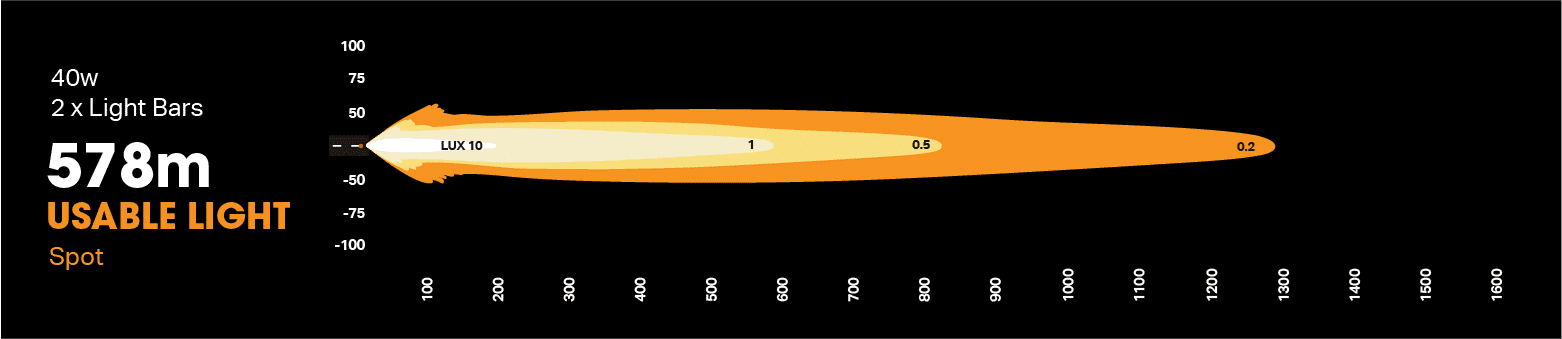

Our In-Grille Light Bar kit seamlessly integrates two Raptor 40w 8.5-inch light bars into the front of your grille. This set of light bars provide an excellent 578m of distance at 1-Lux (usable light). Some removal of the factory grille is required for the installation of these light bars, step-by-step instructions are included to help guide you through this process.

The kit also includes black brackets which are made of nylon composite material ensuring strength and durability and are fully weather resistant.

Features

  • Designed specifically for the Toyota 200 Series Land Cruiser
  • No bull bar required
  • Includes 2 x Raptor 40w 8.5-Inch LED Light Bars with 578m beam distance at 1 Lux
  • Includes purpose-built Toyota 200 Series Land Cruiser black bracketry
  • 3-Year warranty
  • Designed and made in Australia
Each kit comes complete with:
  • 2x Raptor 40w 8.5-Inch LED Light Bars
  • 1x Purpose-built Toyota 200 Series LC Light Bar black bracket kit
  • 1x 200 Series LC High-beam plug & play wiring adaptor
  • 1x OEM-Style switch to fit into factory switch blank
  • 1x Mounting hardware kit (nuts, bolts, and brackets)
  • Fitting and wiring instructions

Specifications

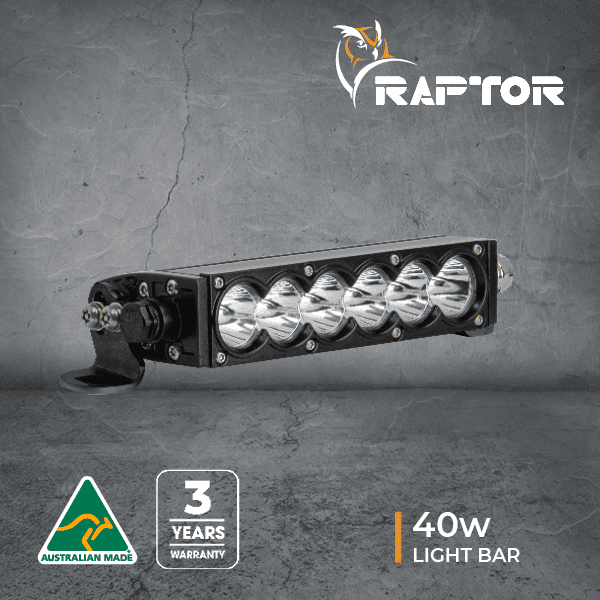

40W Raptor Light Bar Specifications (1x Light Bar)
Wattage 40 Watts
Light Source 6 High Power LEDs
Light Output – Raw 4,652 Lumens
Light Output – Effective 3,810 Lumens
Voltage 9-36V
Current Draw 3.25A @ 13.5
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plugs 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel powdered-coated black
Colour Temperature 5700K
Lifespan 50,000 Hours
Dimensions 213 x 45 x 73mm
Net Weight 640g
Mounting Suitable Side Mount
Beam Type Spread or Combo
Warranty 3 Years
