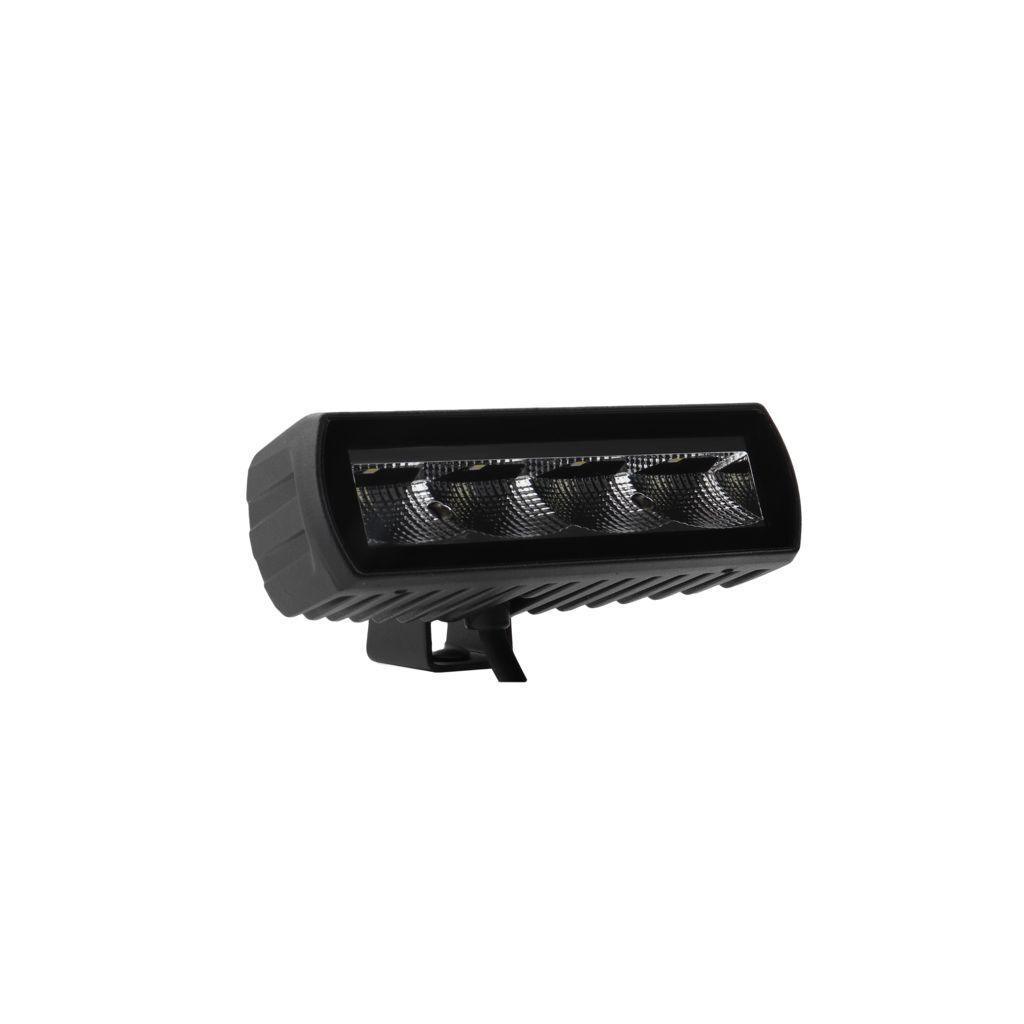

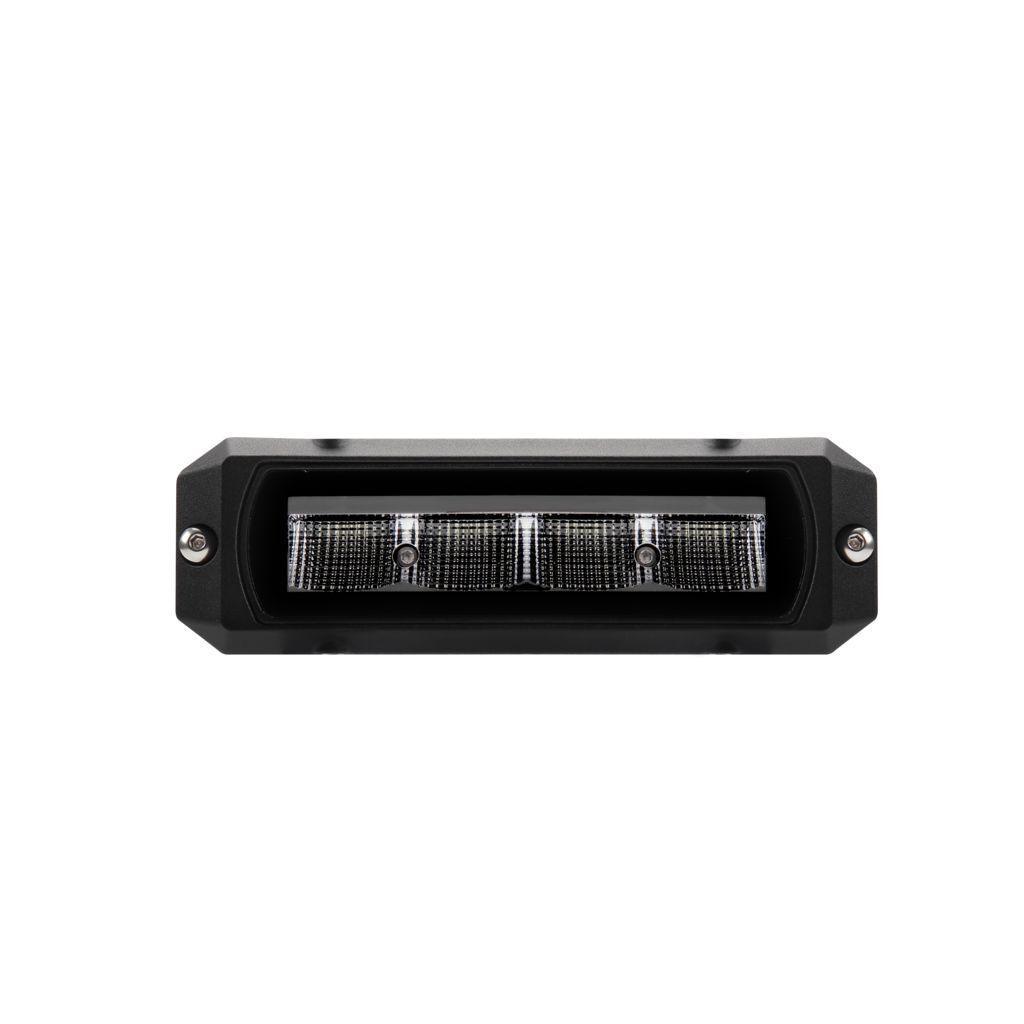

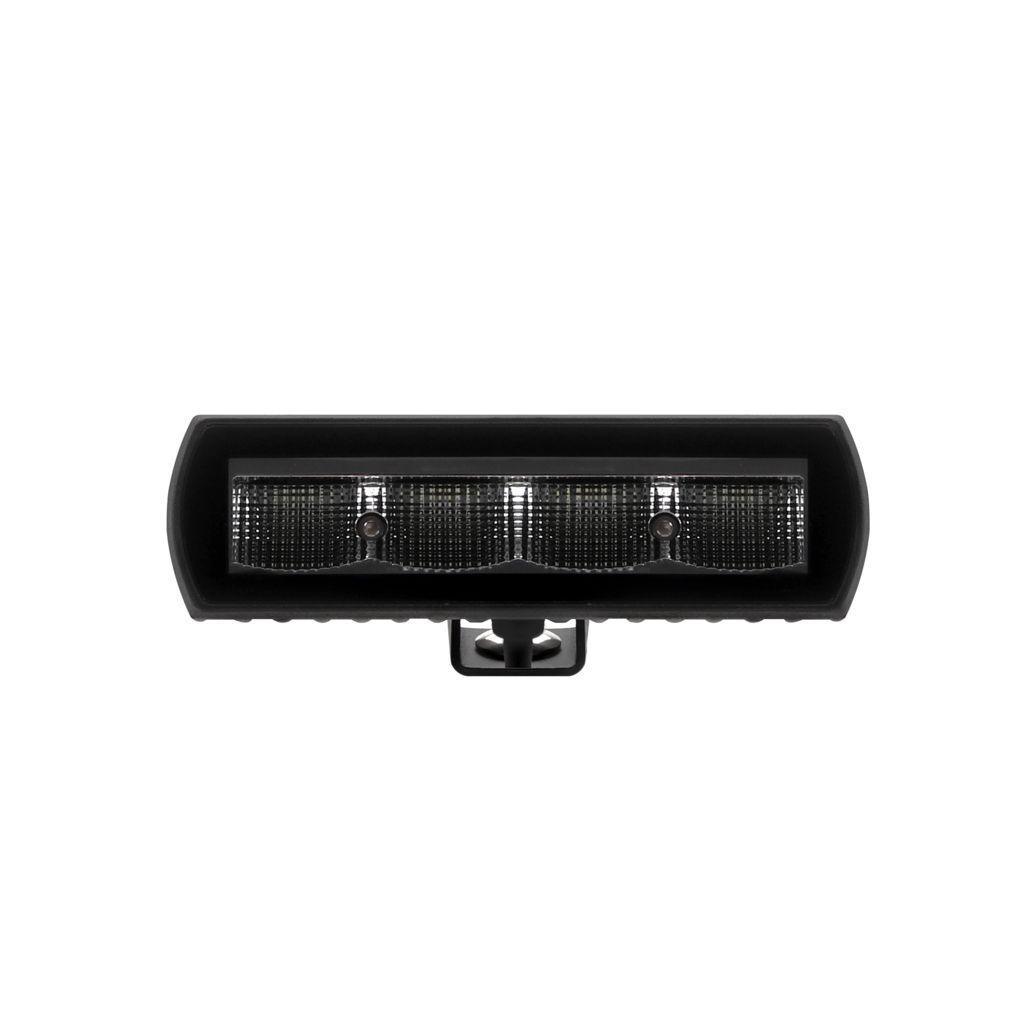

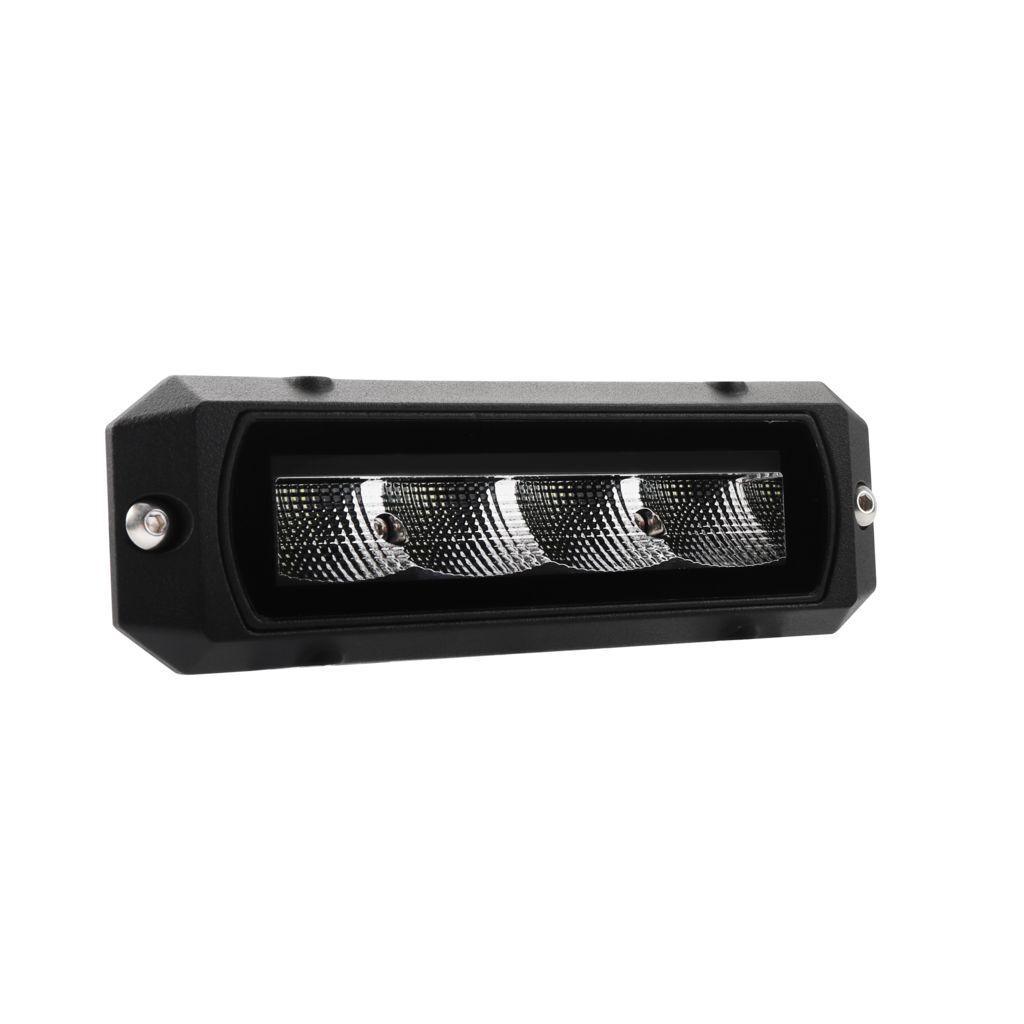

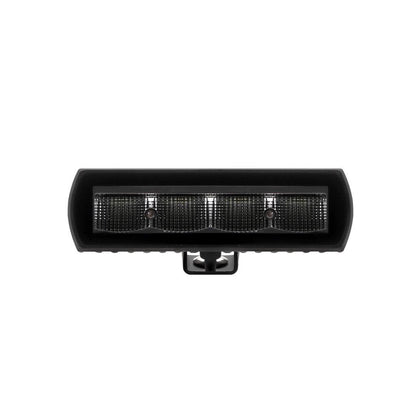

Rectangle Led Worklamp / Reverse LMP 80x60deg 9-36V 24W 4 LEDs Blk HSNG 3,200LMNS

Features

• Ignite 5.5" Rectangular LED Worklamp / Reverse Lamp 9 - 36 Volt 32 Watt
• Light Transmittance >95%
• Integrated Electronic Thermal Management (ETM)
• Black Anondised Polyester Powder Coated Die-Cast ADC12 Aluminium Alloy Housing with integrated
• Extruded 6061 Aluminium Heat-Sink and Pressure Equalising Vent
• Flush Mount or Surface Mount; Provided with Stainless Steel Bolts and Black Anondised Polyester
• Powder Coated Die-Cast ADC12 Aluminium Alloy embedded fascia for flush mounting. Also supplied
• with Stainless Steel U Metal Bracket with Stainless Steel Bolt for Surface mounting
• 80° x 60° Flood (Spread) Beam Pattern
• 300mm Lead with 2 Pin Deutsch Plug
• Over and Under Voltage Protection
• Reverse Polarity Protection
• UV, Water and Shock resistant up to 20G
• Anti Rust, corrosion and freezing resistance
• 50,000 Hours LED Lifespan
• ECE R10, R23 CE Approved and EMC Compliant, CISPR 25 Class 3 Certified
• IP68 and IP69K Rating
• Environment Temperature: -40°C ~ +60°C
• 5 Years Warranty
• 3,200 Raw Lumens, 2,700 Effective Lumens and 6,000K

Can be used in may different applications such as; Worklamp, Awning Lamp, Interior Lamp, Courtesy
Lamp, Deck Lamp, Tub Lamp, also ECE approved as a Reverse Lamp
4 x 8 Watt High Intensity LP LED's
1 Lux @ 49m and 2,400cd Peak Beam Density
Current Draw: 1.9amp @ 12 Volt and 1amp @ 24 Volt
Side Reflector Optic System Technology with Lexan Polycarbonate Lens
