Ultra Vision Lighting

90 LED 20.5″ Light Bar Number Plate Kit

90 LED 20.5″ Light Bar Number Plate Kit

Regular price $539.00
Regular price Sale price $539.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $134.75 AUD fortnightly with More info

Color
  • Designed & made in Australia
  • 3-year warranty
  • Tough powder coated stainless steel mounting bracket
  • Simple Installation
  • Universal fitment, no modifications required

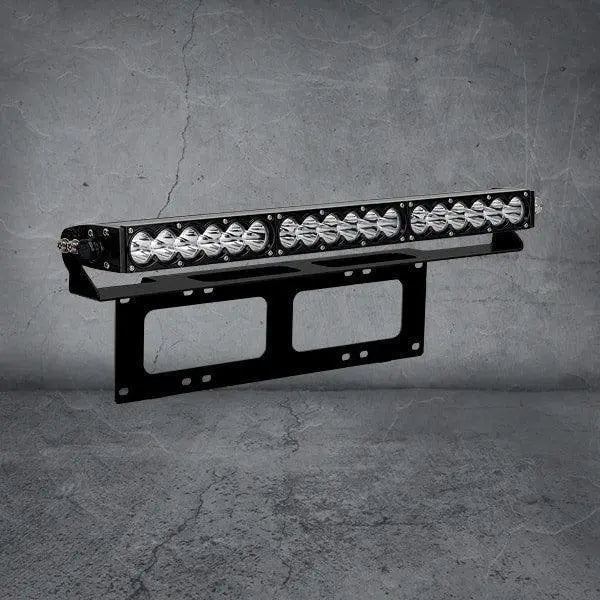

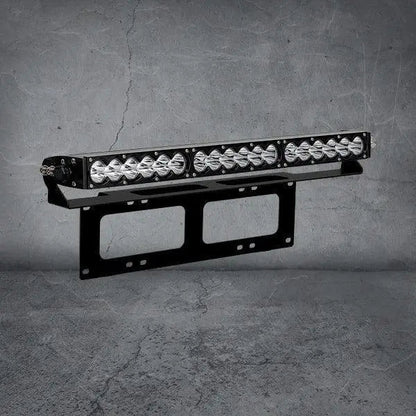

The 90 LED 20.5″ Light Bar number plate kit comes complete with a Light Bar, wiring harness and a number plate mount.

The LED Light Bar is manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the light bar exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.

To ensure maximum driver comfort, the light bars are available with either 4000k or 5700k Colour Temperature.

All lamps come complete with stainless steel pivot mounting brackets and stainless-steel fixings. As with all products, the light bar is manufactured in Australia and covered by a 3-year warranty for total peace of mind.

The number plate mount allows simple fitment of a powerful light bar for vehicles that have no bull bar or nudge bar.  Simply remove the number plate, position the mount and screw back into place. Wiring up is the same as for any light bar or driving light set.

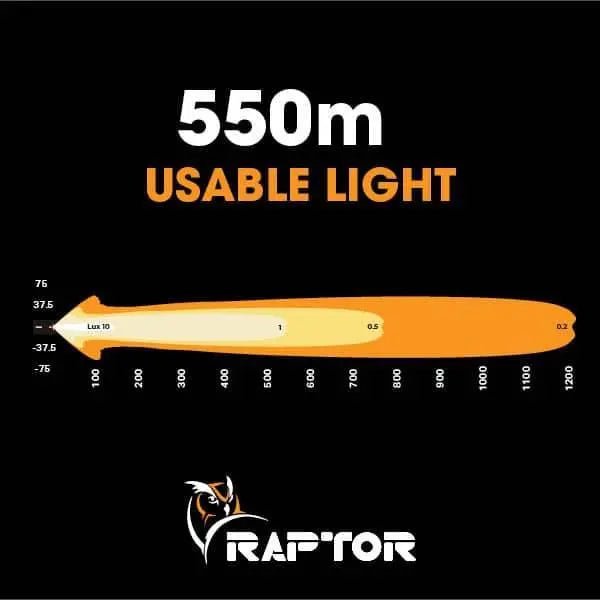

Beam Pattern

90W LIGHT BAR SPECIFICATIONS
Wattage 90 Watts
Light Source 18 x 5w LED's
Light Output – Raw 10,800 Lumens
Light Output – Effective 8,650 Lumens
Voltage 9-36V
Current Draw 6.7A @ 13.5V
Operating Temp. -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plugs 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours

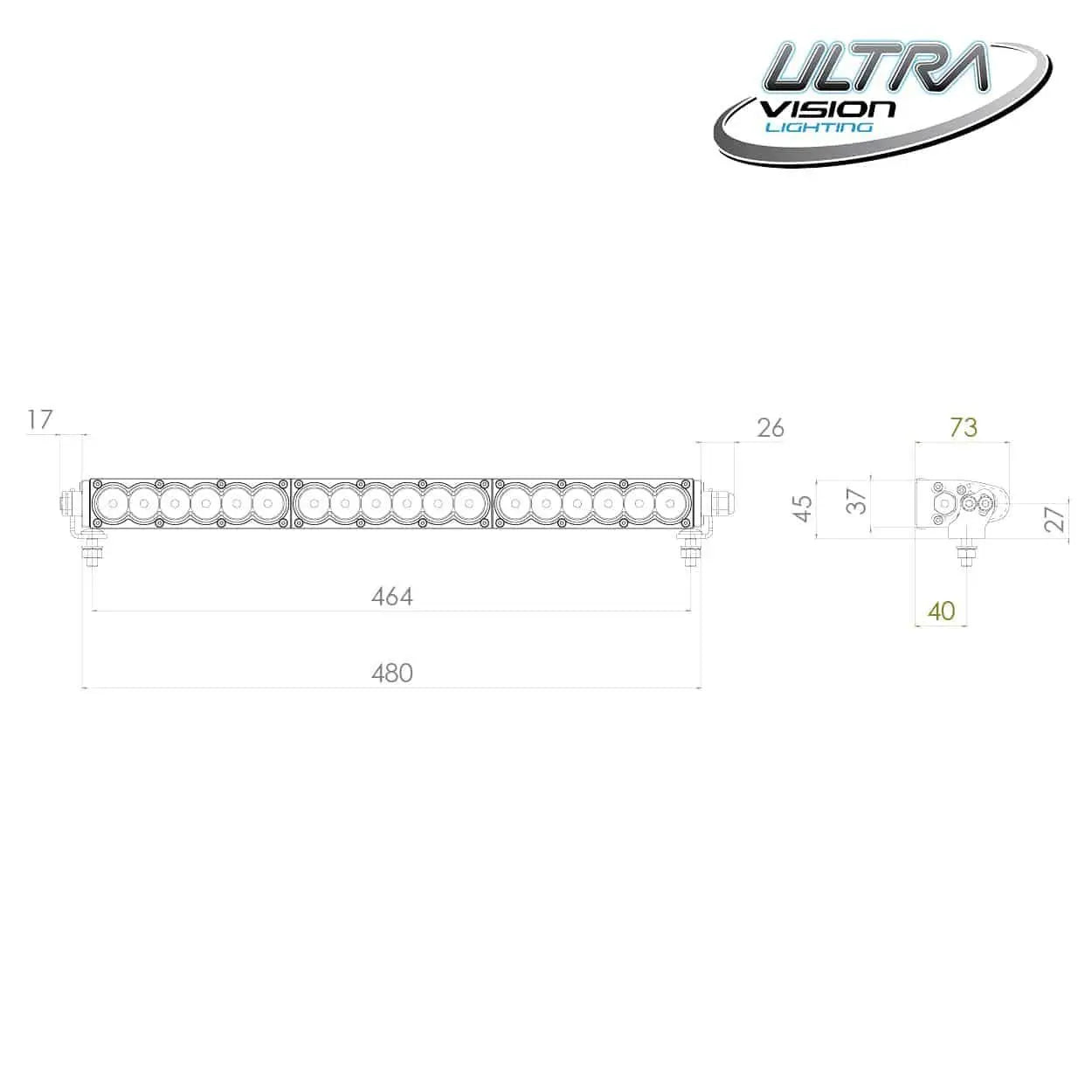

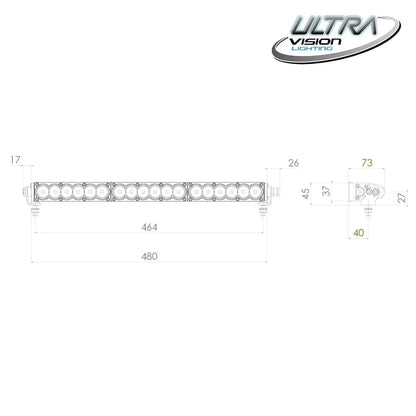

Dimensions 523 x 45 x 73mm
Net Weight 1.7kg
Mounting Suitable Side Mounts
Warranty 3 Years
