Ultra Vision Lighting

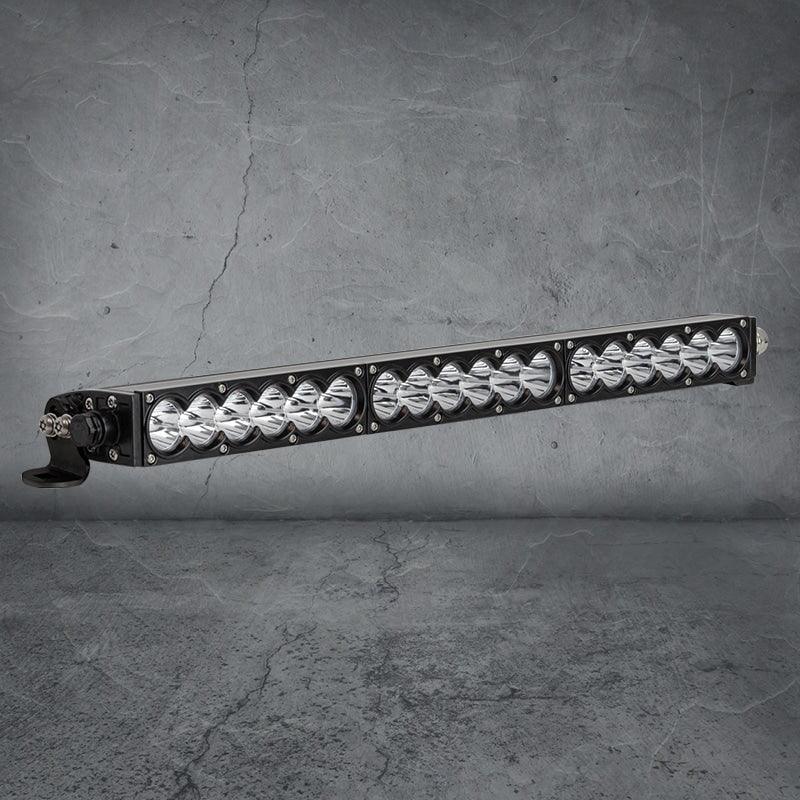

90 LED 20.5″ Light Bar
90 LED 20.5″ Light Bar
or make 4 interest-free payments of
$102.25 AUD
fortnightly with
More info
Couldn't load pickup availability
- Made in Australia – Designed and built for some of the toughest environments on earth.
- Available with either 4000k or 5700k Colour Temperature
- 3 Year Warranty
- Suits DV12H Harness – Sold Separately
The LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.
To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.
All lamps come complete stainless steel pivot mounting brackets and stainless steel fixings. As with all products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.

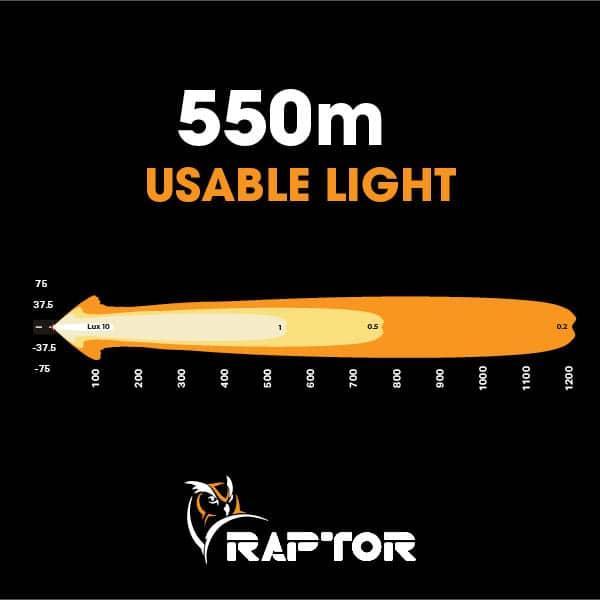

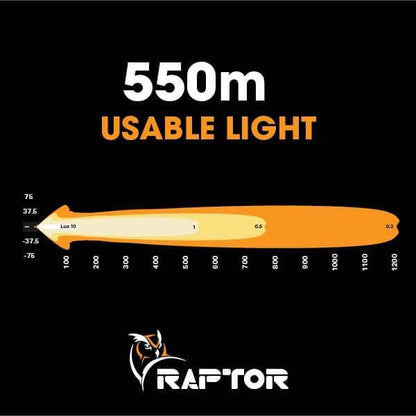

Beam Pattern
| 90W LIGHT BAR SPECIFICATIONS | |
|---|---|
| Wattage | 90 Watts |
| Light Source | 18 x 5w LED's |
| Light Output – Raw | 10,800 Lumens |
| Light Output – Effective | 8,650 Lumens |
| Voltage | 9-36V |
| Current Draw | 6.7A @ 13.5V |
| Operating Temp. | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plugs | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |

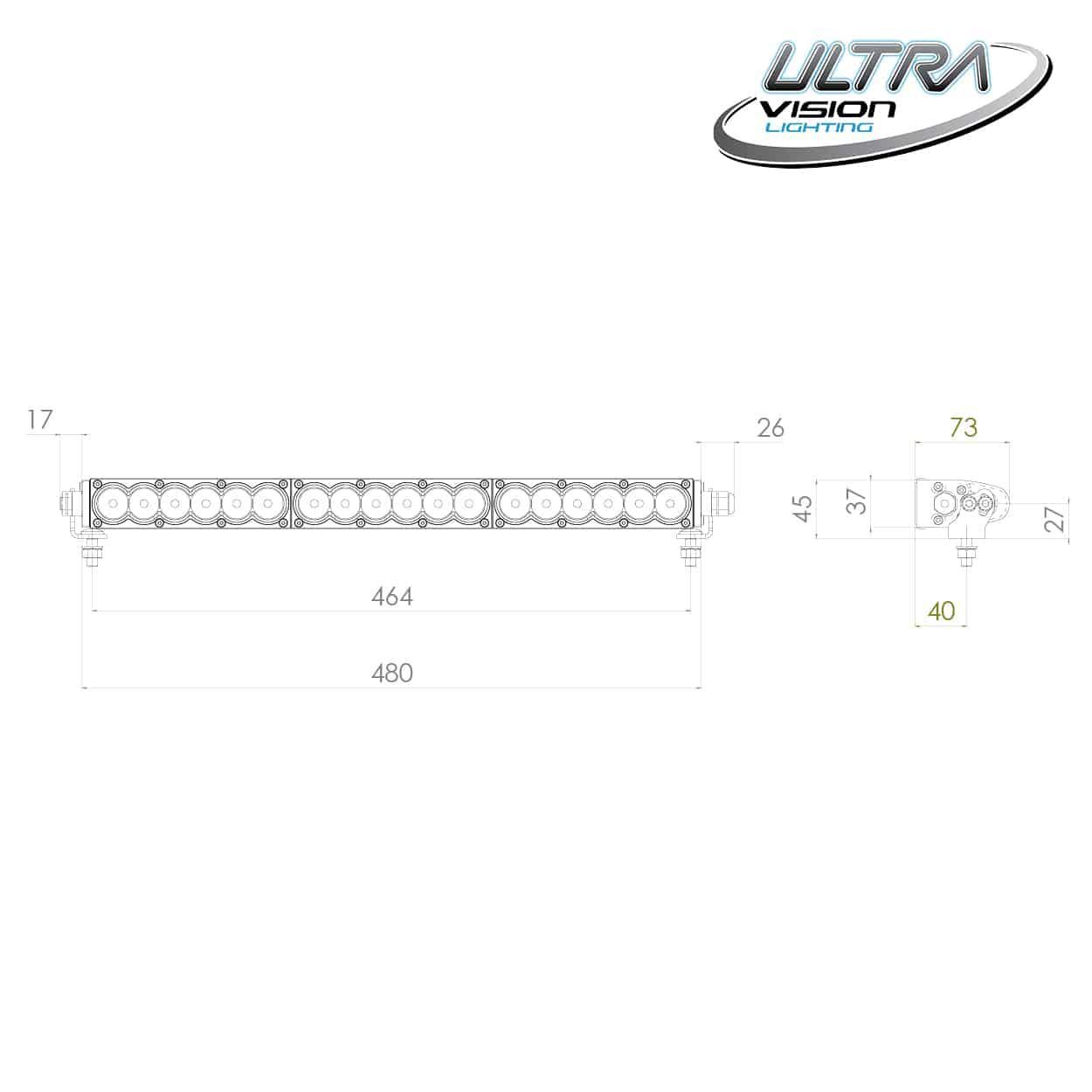

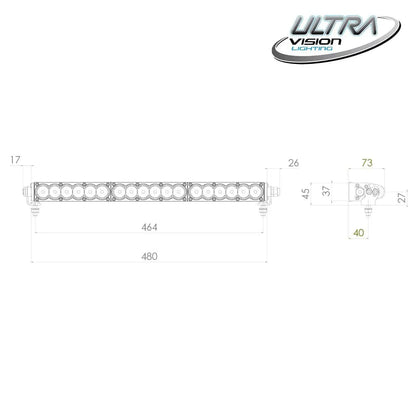

| Dimensions | 523 x 45 x 73mm |
| Net Weight | 1.7kg |
| Mounting Suitable | Side Mounts |
| Beams Type | Combo or Spread |
| Warranty | 3 Years |
| Harness | Harness not included, purchased separately. Harness to suit: DV12H |
