Ultra Vision Lighting
180 LED 39″ Light Bar
180 LED 39″ Light Bar
or make 4 interest-free payments of
$177.25 AUD
fortnightly with
More info
Couldn't load pickup availability
- Made in Australia – Designed and built for some of the toughest environments on earth.
- Available with either 4000k or 5700k Colour Temperature
- 3 Year Warranty
- Suits DV12HD Harness – Sold Separately

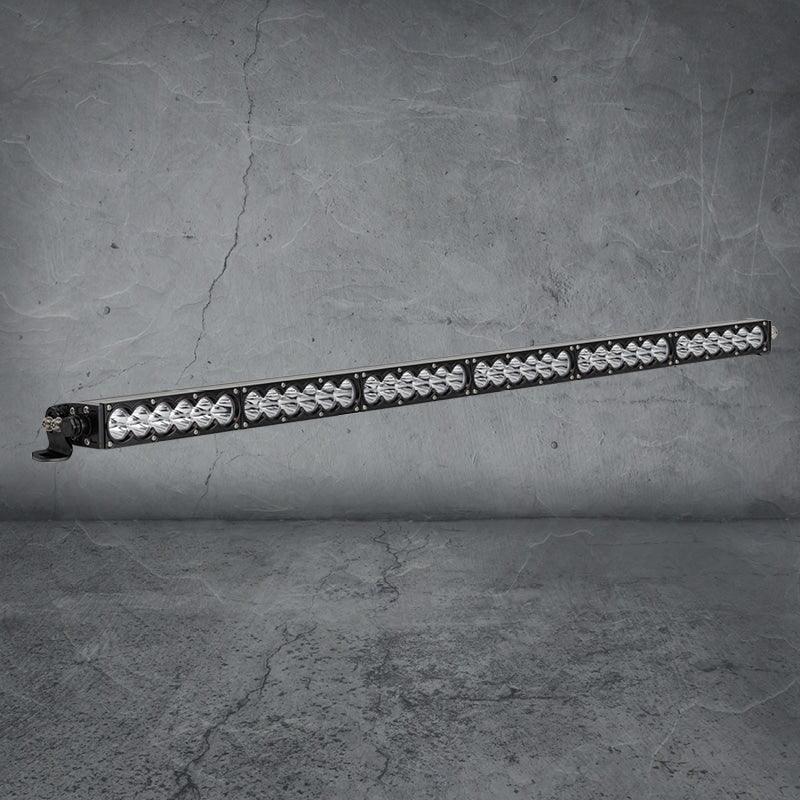

The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of over 100° from one lamp type.
To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.

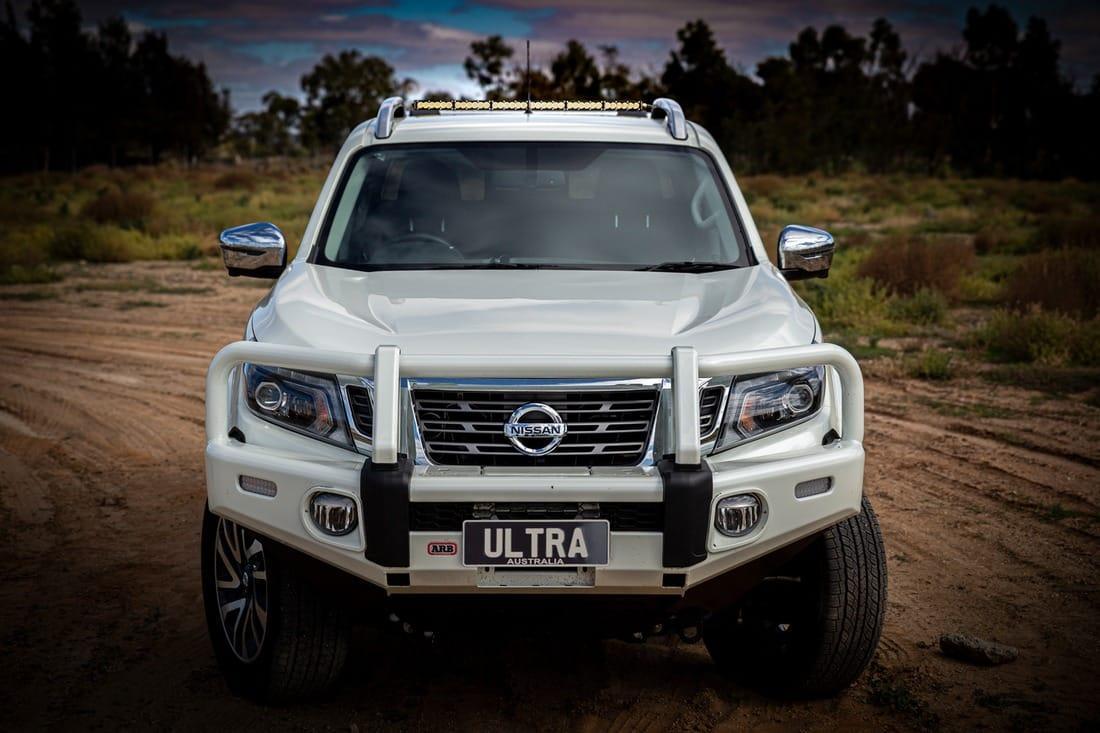

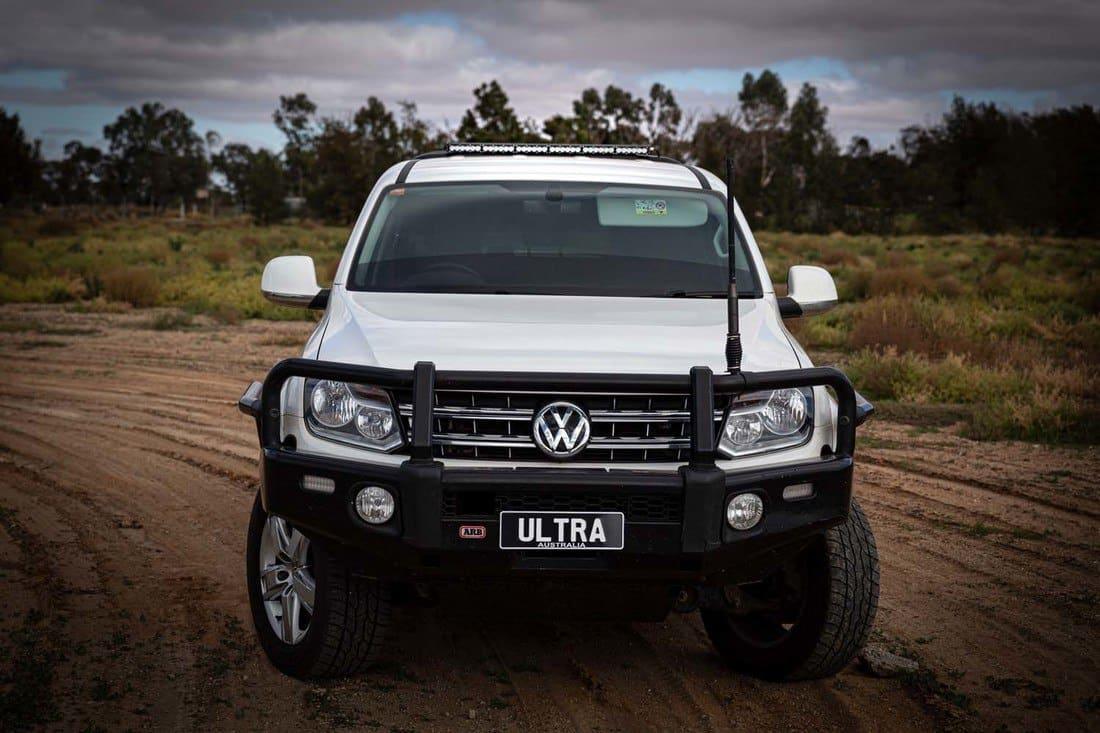

The RAPTOR 180 light bar comes complete with stainless steel pivot mounting brackets, stainless steel fixings and a 3-metre lead for mounting onto roof rack systems. As with all Raptor products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.

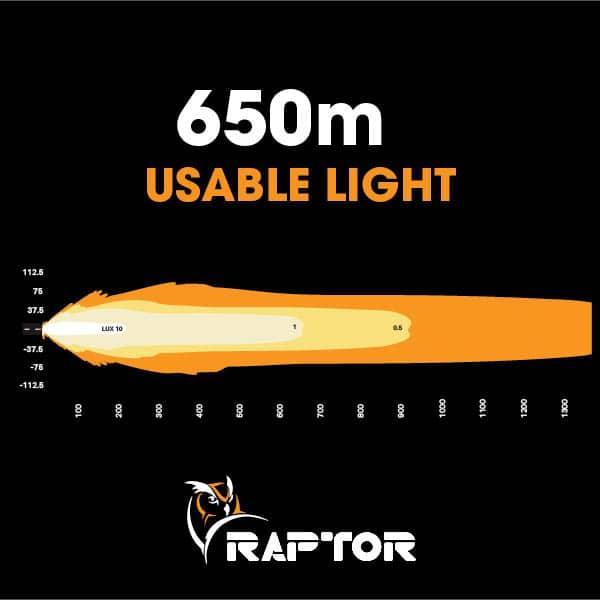

Beam Pattern
| 180W RAPTOR LIGHT BAR SPECIFICATIONS | |
|---|---|
| Wattage | 180 Watts |
| Light Source | 36 x 5w LED's |
| Light Output – Raw | 21,600 Lumens |
| Light Output – Effective | 17,300 Lumens |
| Voltage | 9-36V |
| Current Draw | 13A @ 13.5V |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plug | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |

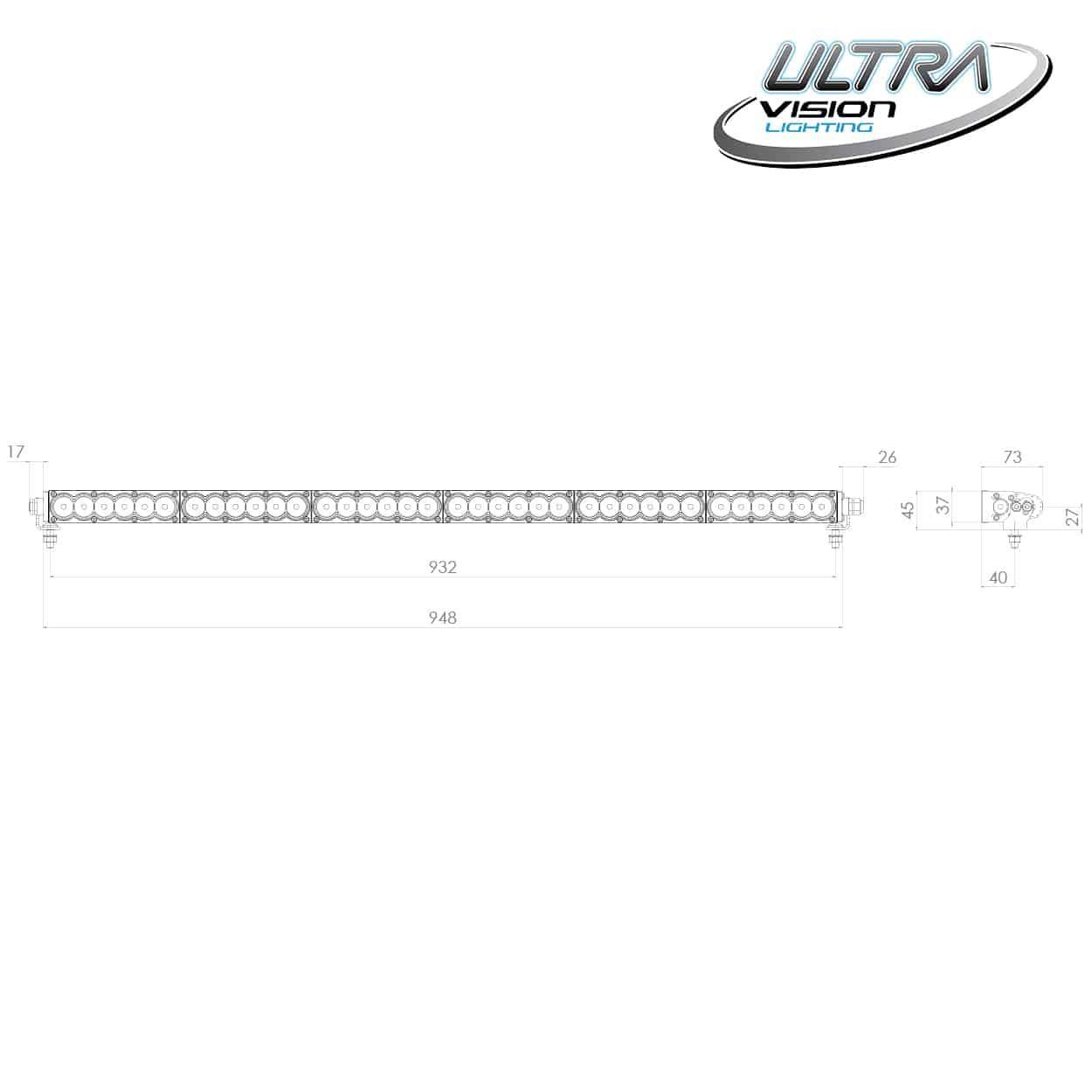

| Dimensions | 991 x 45 x 73mm |
| Net Weight | 3kg |
| Mounting Suitable | Side Mounts |
| Beams Type | Combo or Spread |
| Warranty | 3 Years |
| Harness | Harness not included, purchased separately. Harness to suit: DV12HD |
