Ultra Vision Lighting

Nissan Navara Series 5 NP300 D23 2021-on Behind Grille Light Bar Kit

Nissan Navara Series 5 NP300 D23 2021-on Behind Grille Light Bar Kit

Regular price $798.00
Regular price Sale price $798.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $199.50 AUD fortnightly with More info

Nissan Navara Series 5 NP300 D23 2021-on Behind Grille Light Bar Kit

Get the power of Ultra Vision behind the grille of your Nissan Navara with our light bar kit specifically designed for the Series 5 NP300 D23 2021-on models.

There is no cutting or drilling required as the purpose-built brackets have been designed to mount to existing points behind the grille allowing a very strong fitment, with no vibration or shaking on the roads.

This kit includes everything you need, including a quality and Australian-made Raptor 125w 20.5-inch LED single row light bar, which provides an excellent additional amount of light at 708m of usable beam distance.

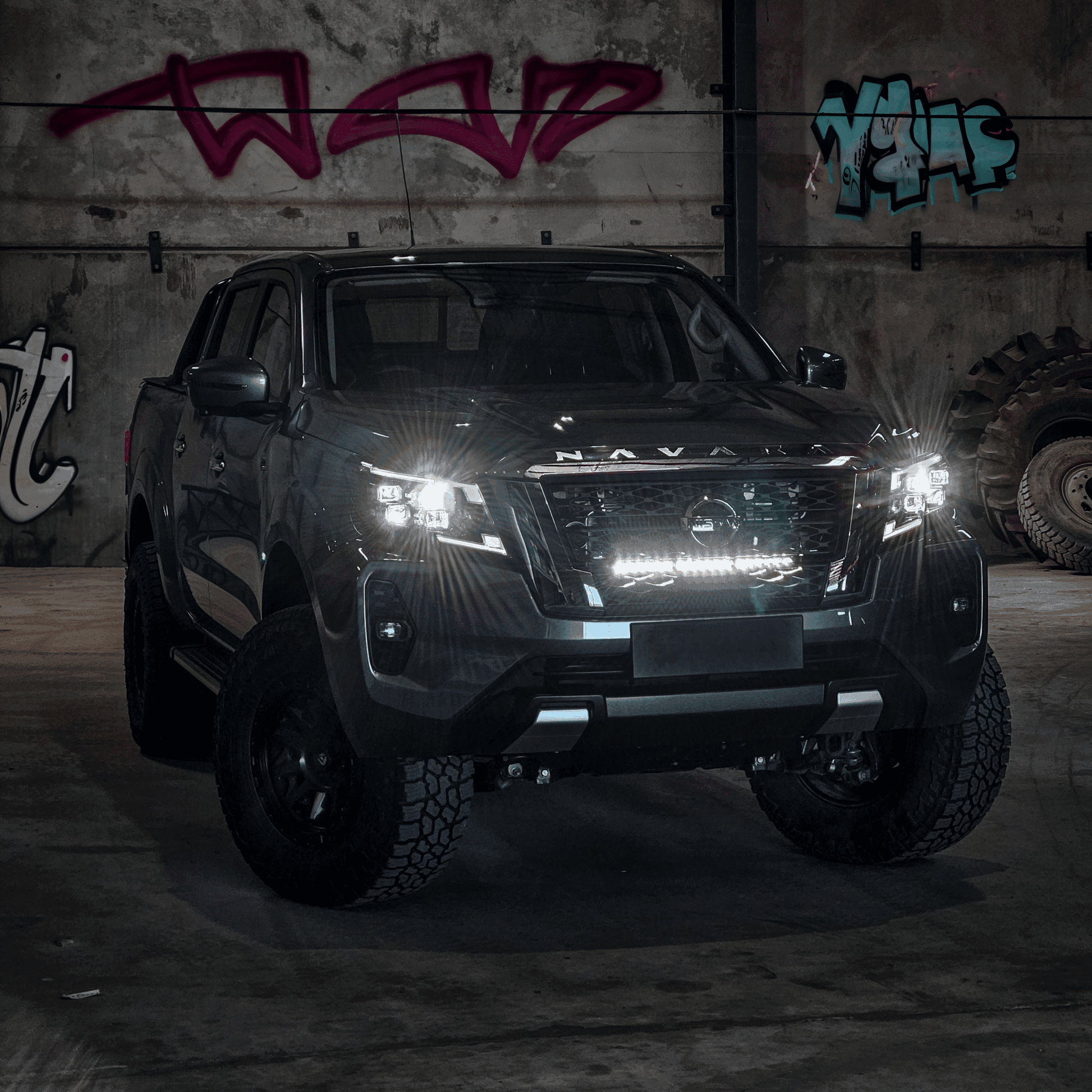

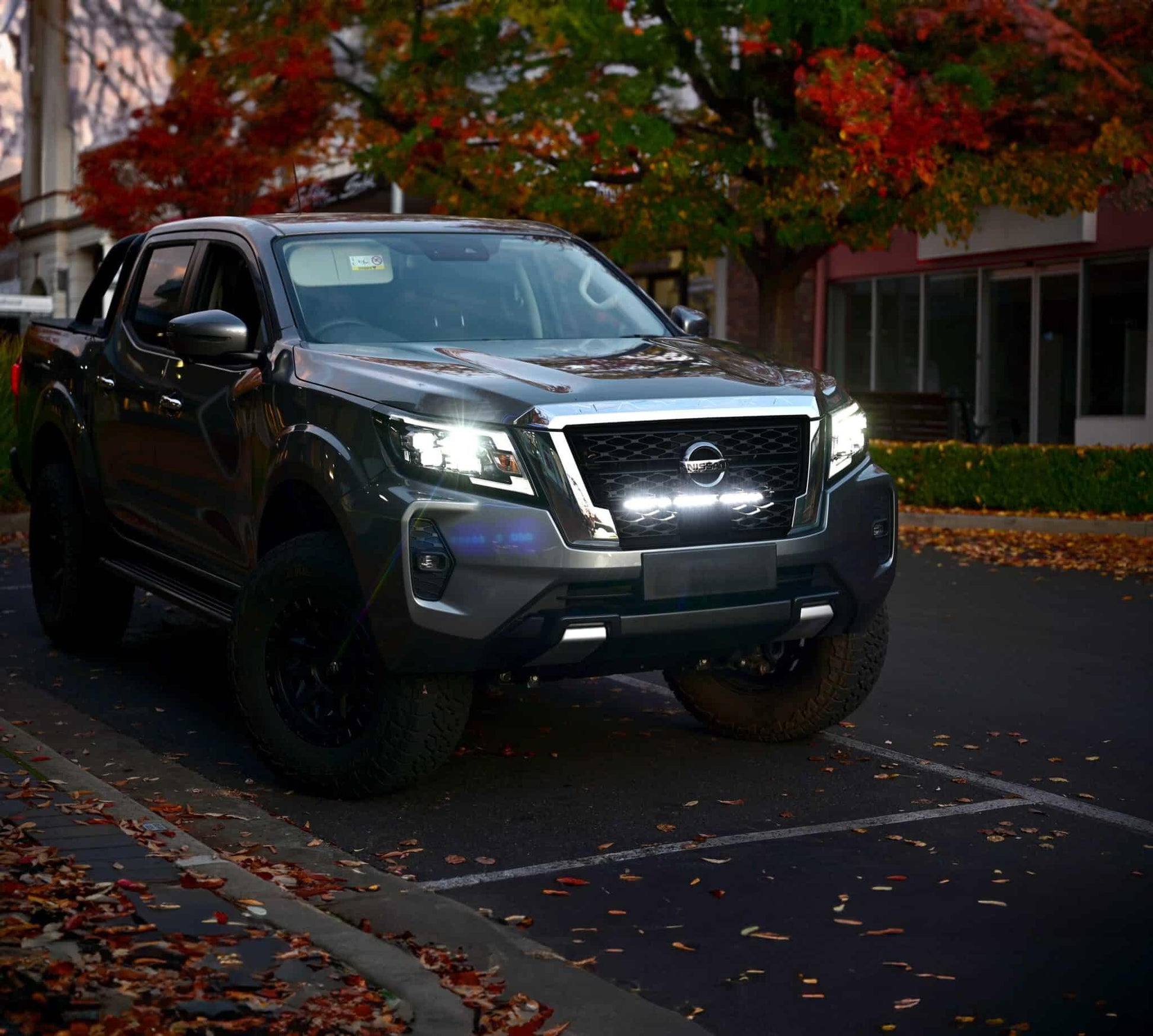

Even better, the grille has the perfect sized opening below the Nissan badge allowing the light to have almost 100% effectiveness and does not visually restrict the distance or spread of the beam.

Features

  • Designed specifically for the Nissan Navara Series 5 NP300 D23 2021-on models
  • No bull bar required
  • No cutting or drilling required

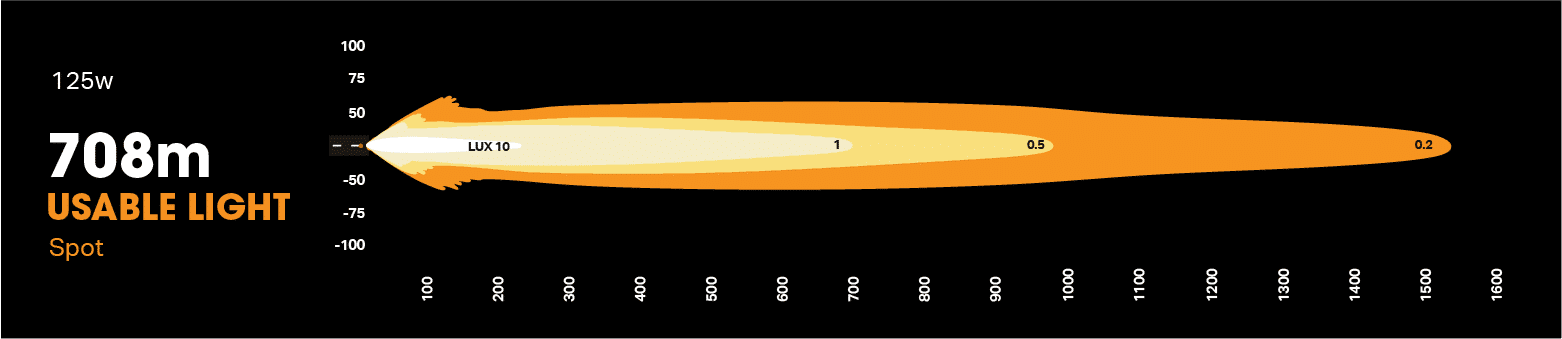

  • Includes 1x Raptor 125w LED light bar with 708m beam distance at 1 lux.
  • Brackets powder-coated black for sleek design and rust preservation
  • 3-year warranty
  • Designed and made in Australia
Each kit comes complete with:

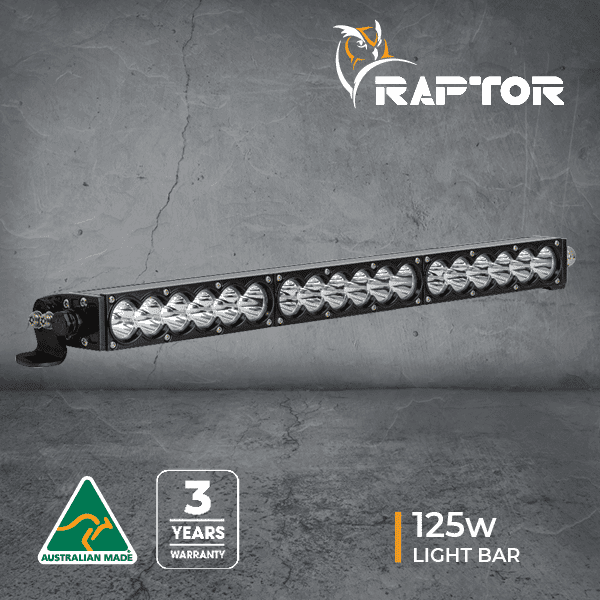

  • 1x Raptor 125w 20.5-Inch LED Light Bar in 5700K
  • 1x Wiring harness to suit
  • 1x Purpose-built Navara NP300 D23 Behind-Grille black powder-coated bracket kit
  • 1x Navara D23 high-beam plug & play wiring adaptor
  • 1x OEM-Style switch to fit into factory switch blank
  • 1x Mounting hardware kit (nuts, bolts, and brackets)
  • Fitting and wiring instructions

Specifications

125W Raptor Light Bar Specifications
Wattage 125 Watts
Light Source 18 High Power LEDs
Light Output – Raw 13,957 Lumens
Light Output – Effective 11,430 Lumens
Voltage 9-36V
Current Draw 10A @ 13.5V
Operating Temp. -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plugs 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel powder coated black
Colour Temperature 5700K
Lifespan 50,000 Hours
Dimensions 523 x 45 x 73mm
Net Weight 1.7kg
Mounting Suitable Side Mount Brackets
Warranty 3 Years
Beam Type Spot Beam
