Ultra Vision Lighting

Mitsubishi Triton MR Nov 2018-on Behind Grille Light Bar Kit

Mitsubishi Triton MR Nov 2018-on Behind Grille Light Bar Kit

Regular price $929.00
Regular price Sale price $929.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $232.25 AUD fortnightly with More info

Mitsubishi Triton MR Nov 2018-on Behind Grille Light Bar Kit

Looking for that extra punch of light on the front of your Mitsubishi Triton MR but don’t want to invest in a bull bar or remove parts of your vehicle’s grille?

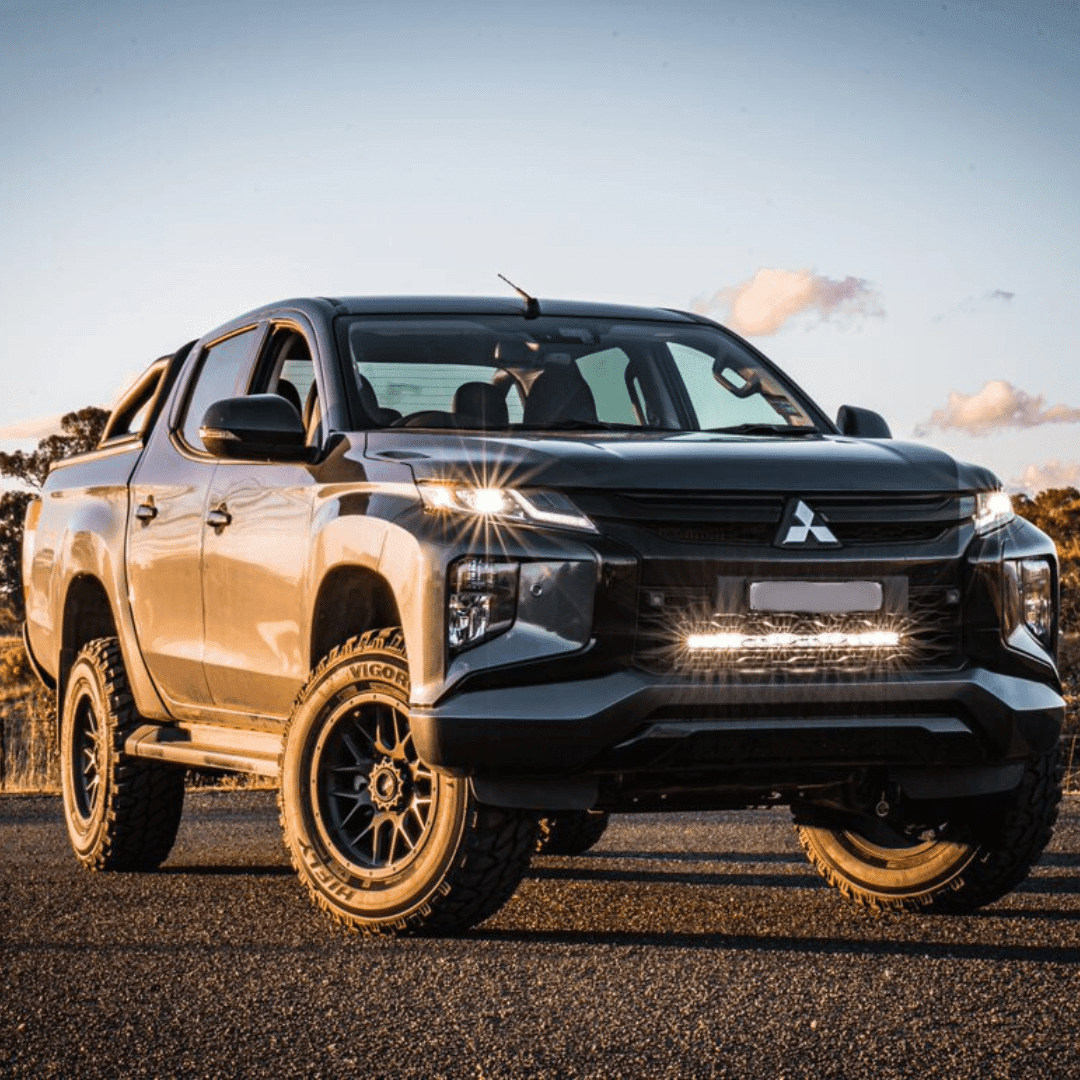

Ultra Vison’s Mitsubishi Triton MR Nov 2018-on Behind Grille Light Bar Kit has everything you need to wire and install a Raptor 165w LED Light Bar without any cutting or drilling required.

Using powder coated black purpose-built Triton brackets, which mount to existing points behind the grille. Only the grille shroud beneath the bonnet needs to be removed temporarily for access to mount the light bar behind.

Features

  • Designed specifically for the Mitsubishi Triton MR Nov 2018-on Models
  • No cutting or drilling required
  • No bull bar required

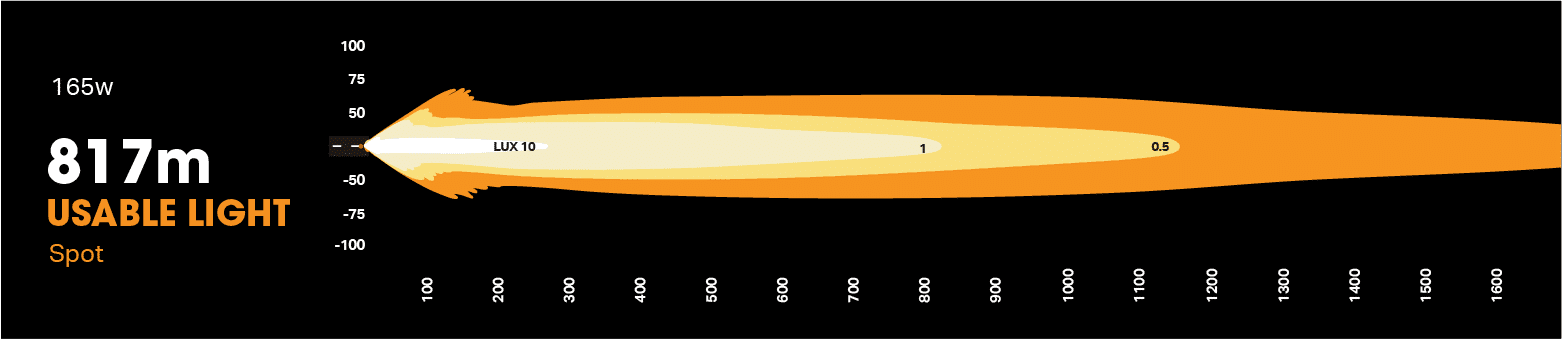

  • Includes 1x Raptor 165w Light Bar with 817m beam distance at 1 lux
  • Brackets powder-coated black
  • 3-year warranty
  • Designed and made in Australia
Each kit comes complete with:

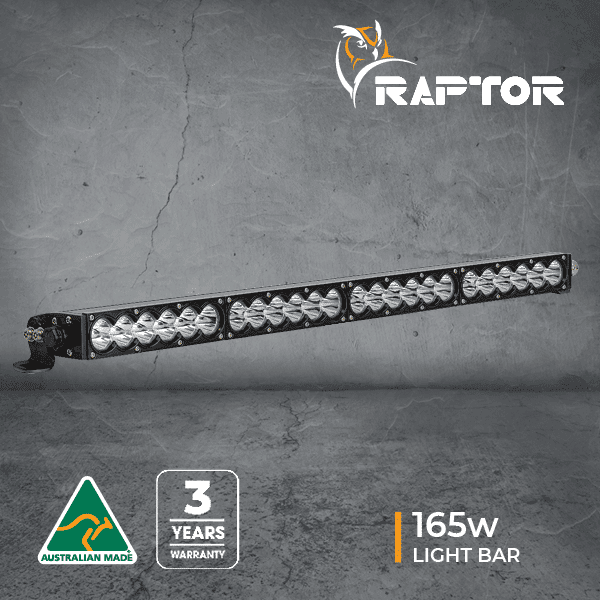

  • 1x Raptor 165w 26.5-Inch LED Light Bar in 5700K
  • 1x Wiring harness to suit
  • 1x Purpose-built Triton MR Behind-Grille black powder-coated bracket kit
  • 1x Triton MR high-beam piggyback wiring adaptor
  • 1x Mounting hardware kit (nuts, bolts, and brackets)
  • 1x OEM-style switch to fit into factory switch blank
  • Fitting and wiring instructions

Specifications

165W Raptor Light Bar Specifications
Wattage 165 Watts
Light Source 24 High Power LEDs
Light Output – Raw 18,609 Lumens
Light Output – Effective 15,240 Lumens
Voltage 9-36V
Current Draw 13A @ 13.5V
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plug 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel powdered-coated black
Colour Temperature 5700K
Lifespan 50,000 Hours
Dimensions 679 x 45 x 73mm
Net Weight 2.3kg
Mounting Suitable Side mount brackets
Beams Available Spot
Warranty 3 Years
