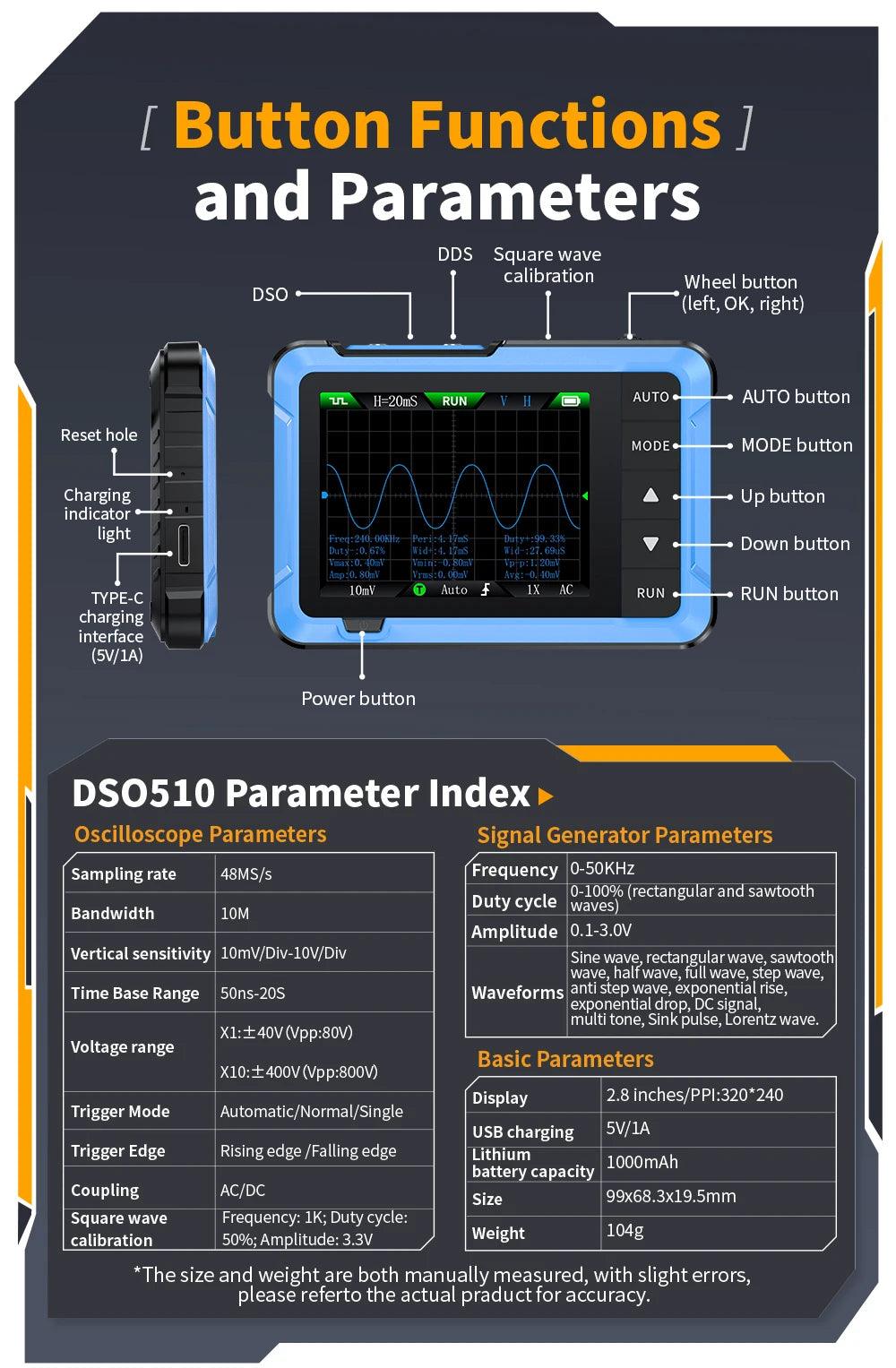

SPECIFICATIONS

Brand Name: FNIRSI

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display resolution: 320*240 Pixels

Digital Channels: 1

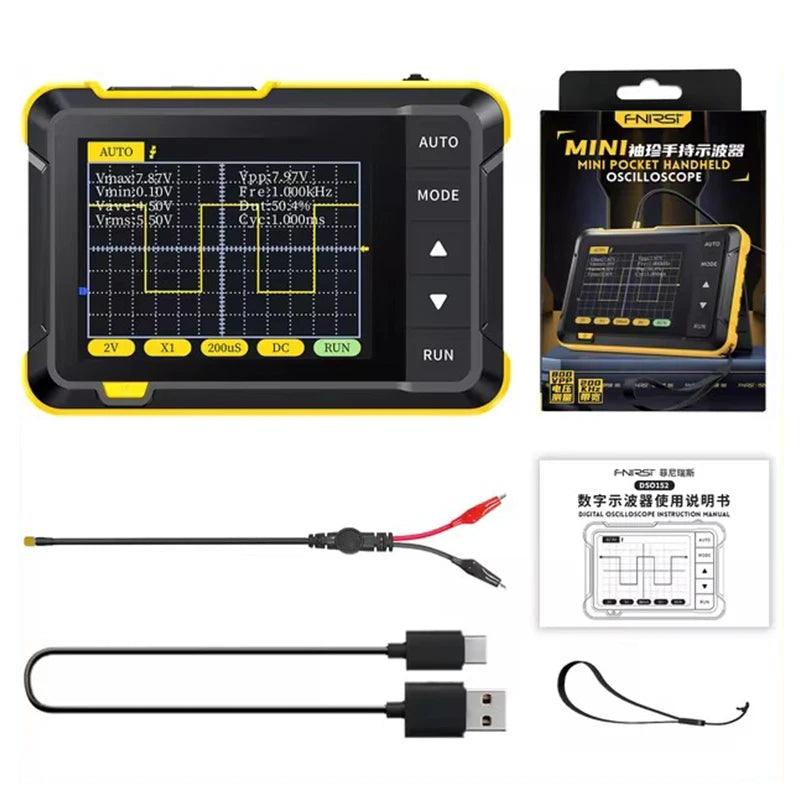

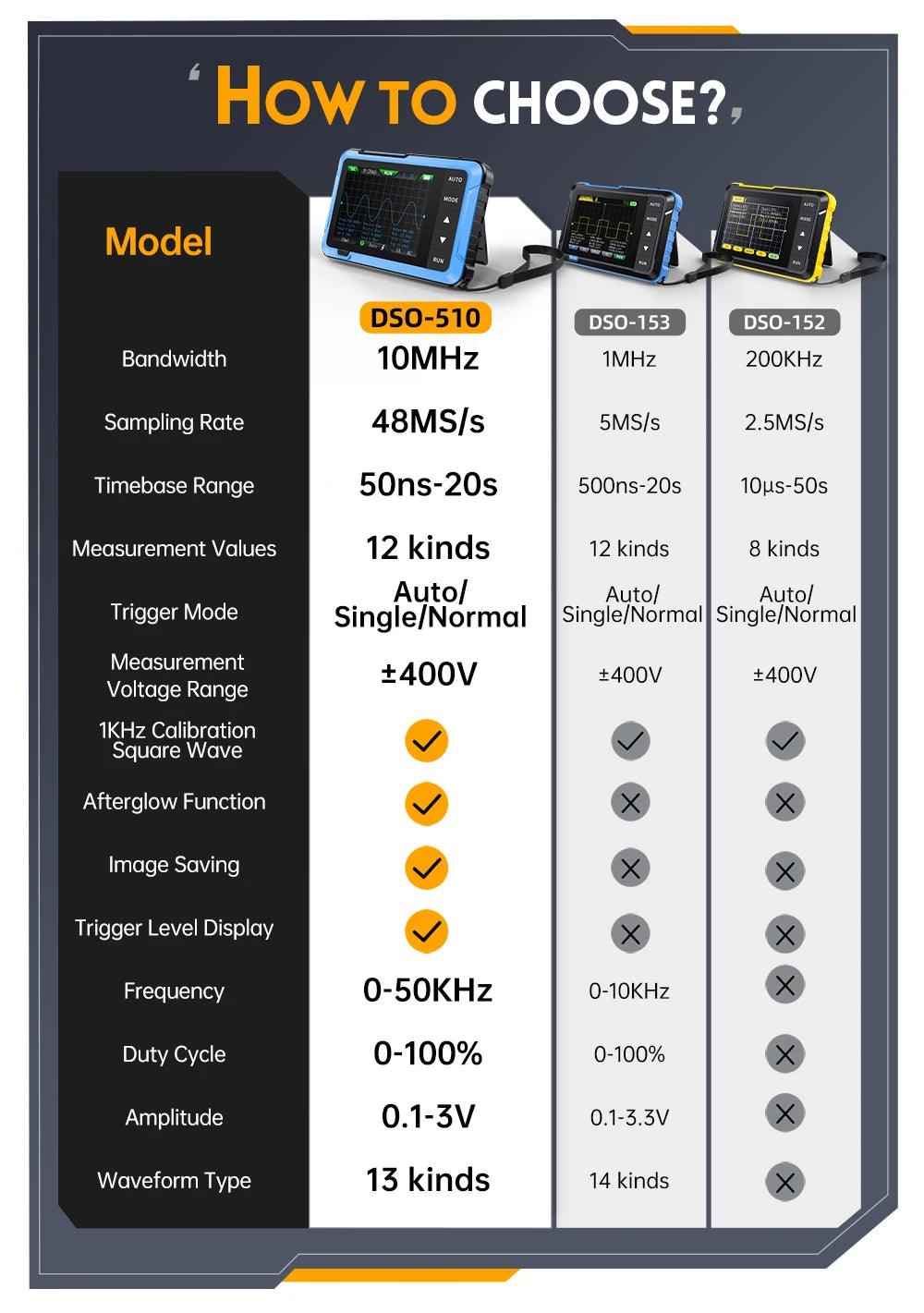

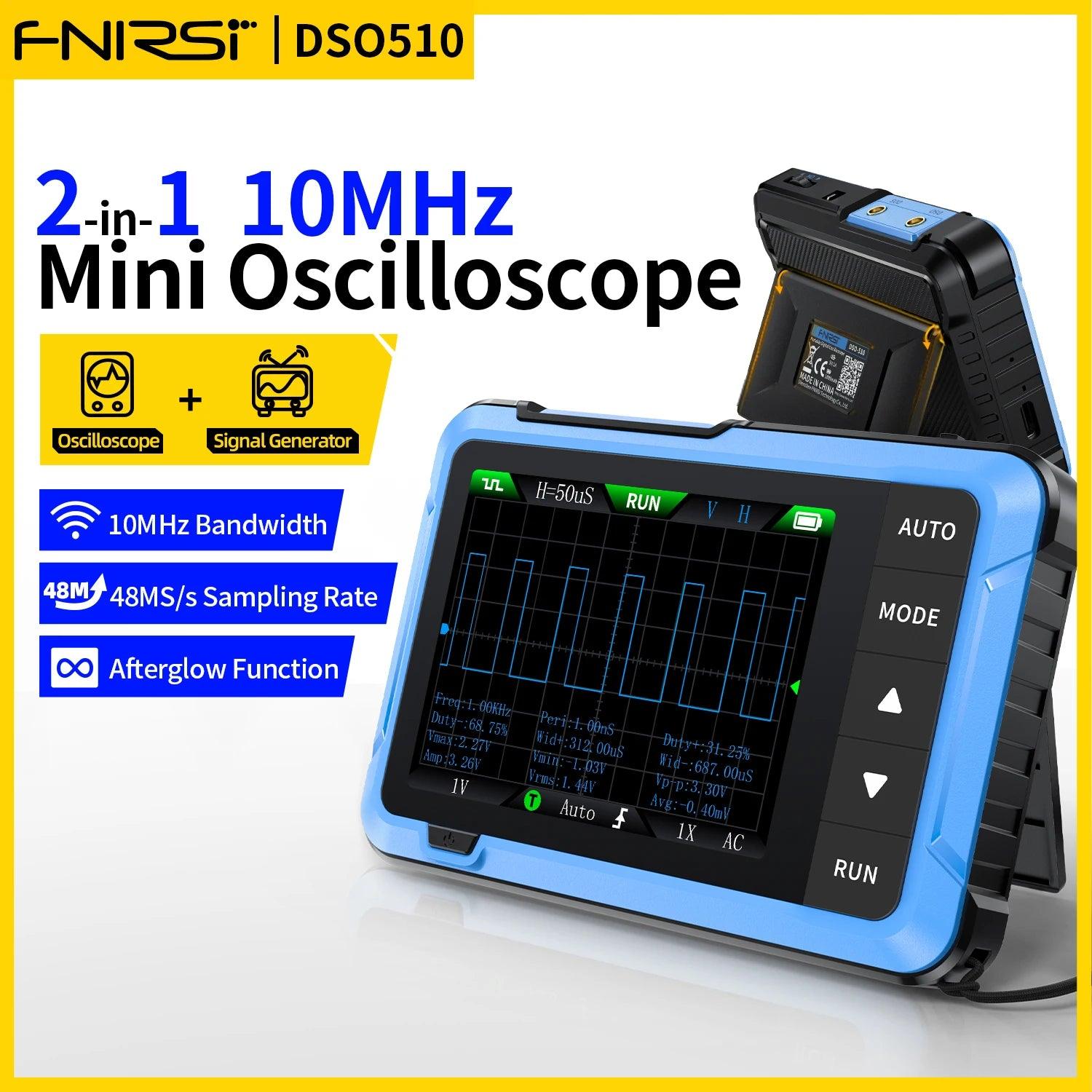

Model Number: DSO510/DSO153/DSO152

Display Size: None

Certification: CE

Real Time Sampling Rate: 48MS/S

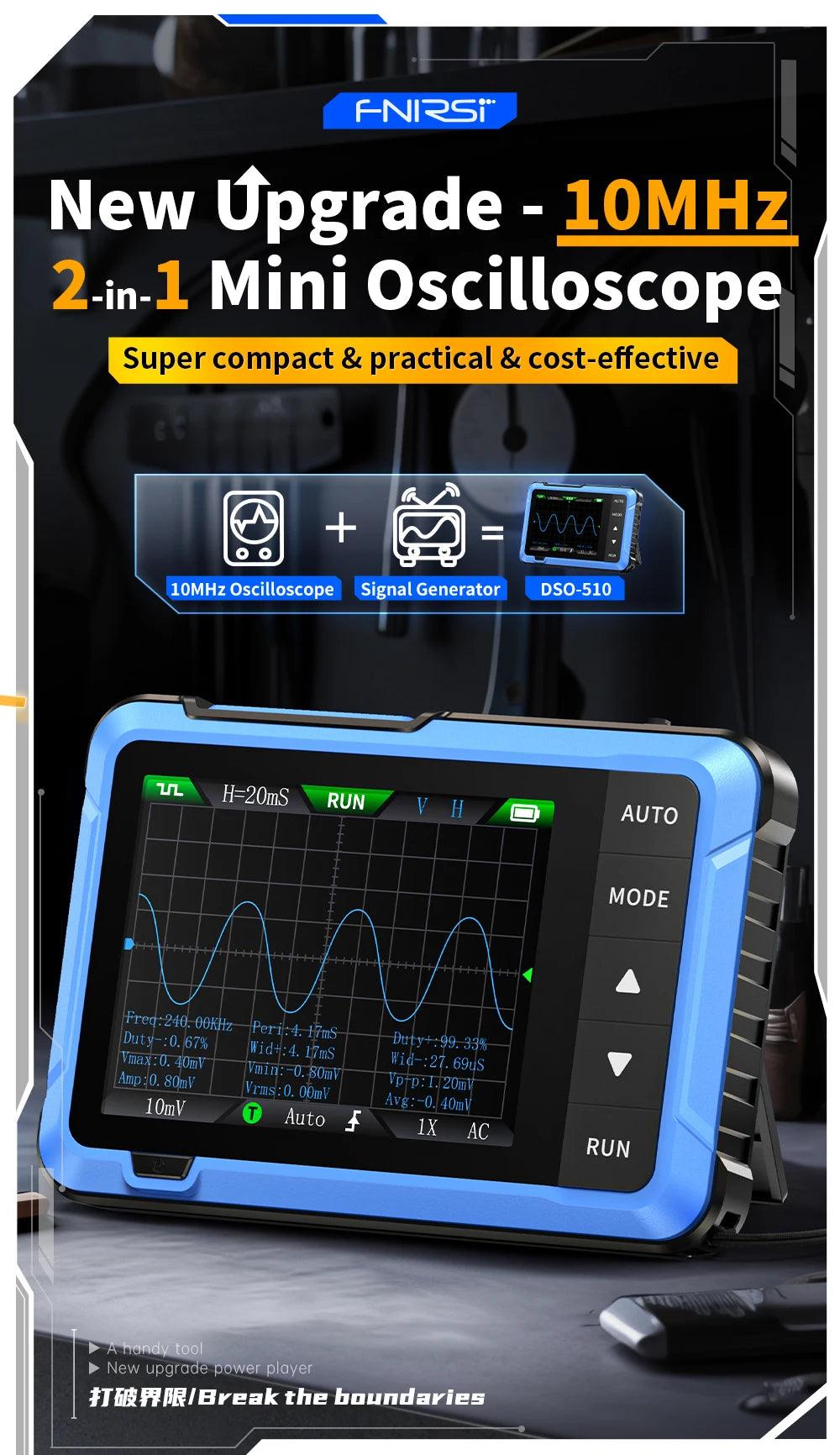

Band Width: 10MHz

Vertical sensitivity: 10mV/Div-20V/Div(Progress according to the 1-2-5 way)

Time base range: 10μs/Div-50s/Div(Progress according to the 1-2-5 way)

Voltage range: 1X 400VPP 10X 800VPP

Trigger method: Auto/Normal/Single

Coupling method: AC/DC

Display: 2.8 inches/PPI:320*240

USB charging: 5V/1A

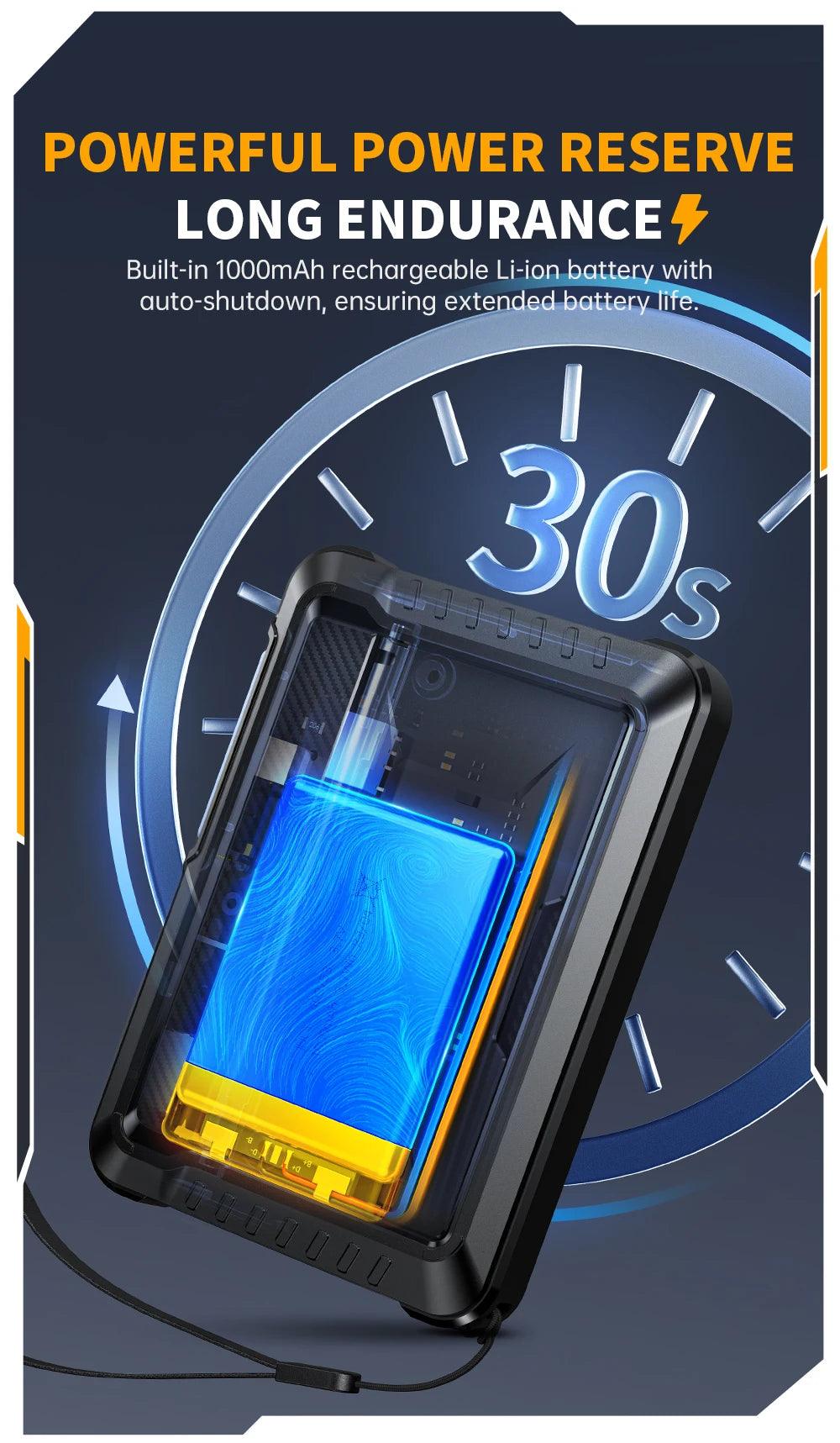

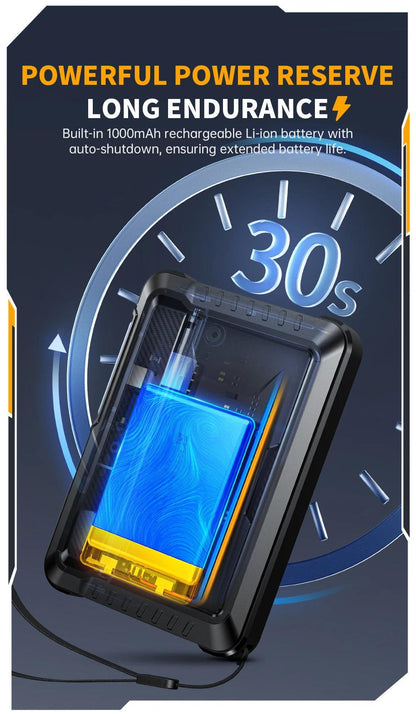

Lithium battery capacity: 1000mAh

Square wave calibration: Frequency: 1K

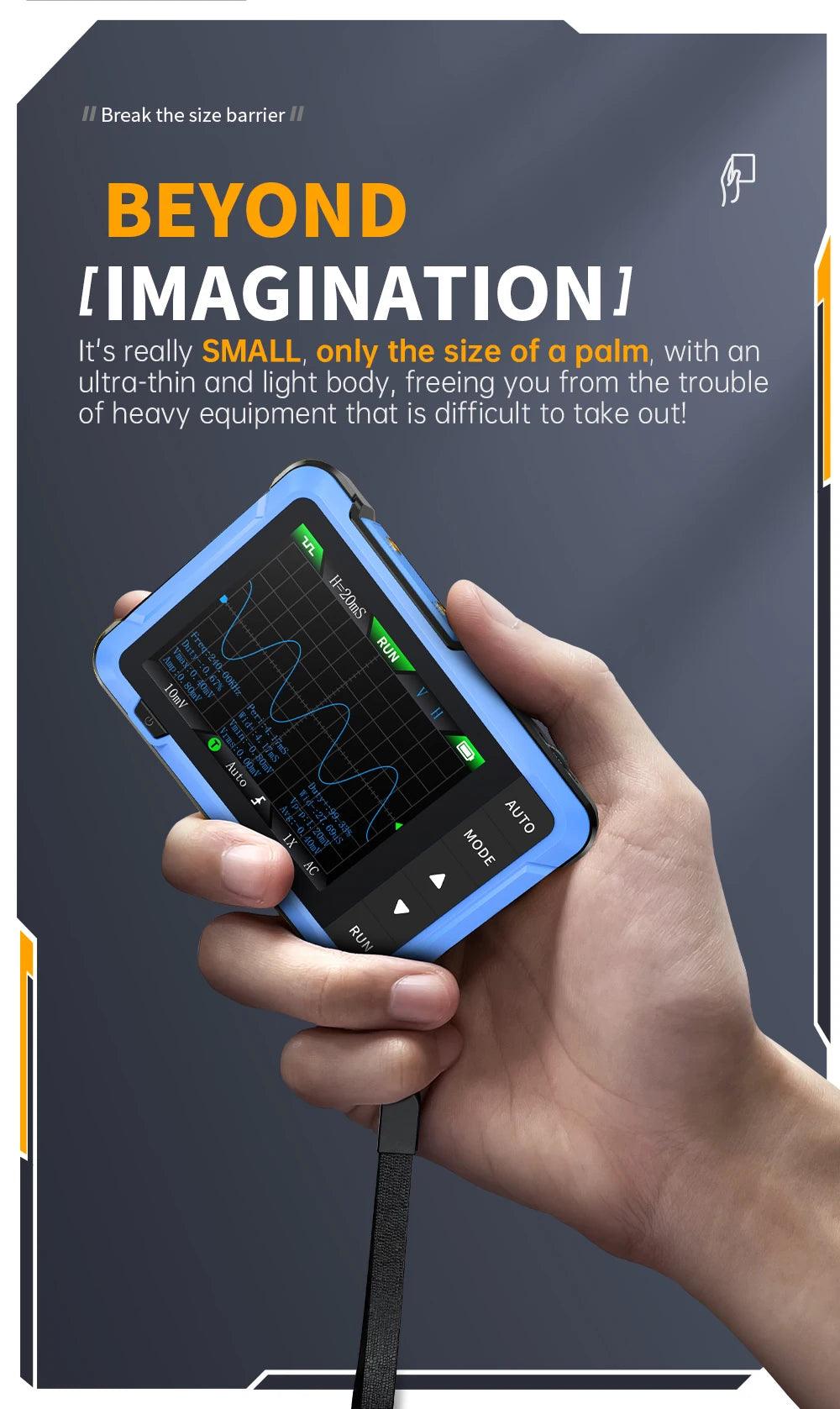

Size: 99mmx68.3mmx19.5mm

Weight: 104g

Duty cycle: 50%
