SPECIFICATIONS

Brand Name: FNIRSI

Origin: Mainland China

DIY Supplies: ELECTRICAL

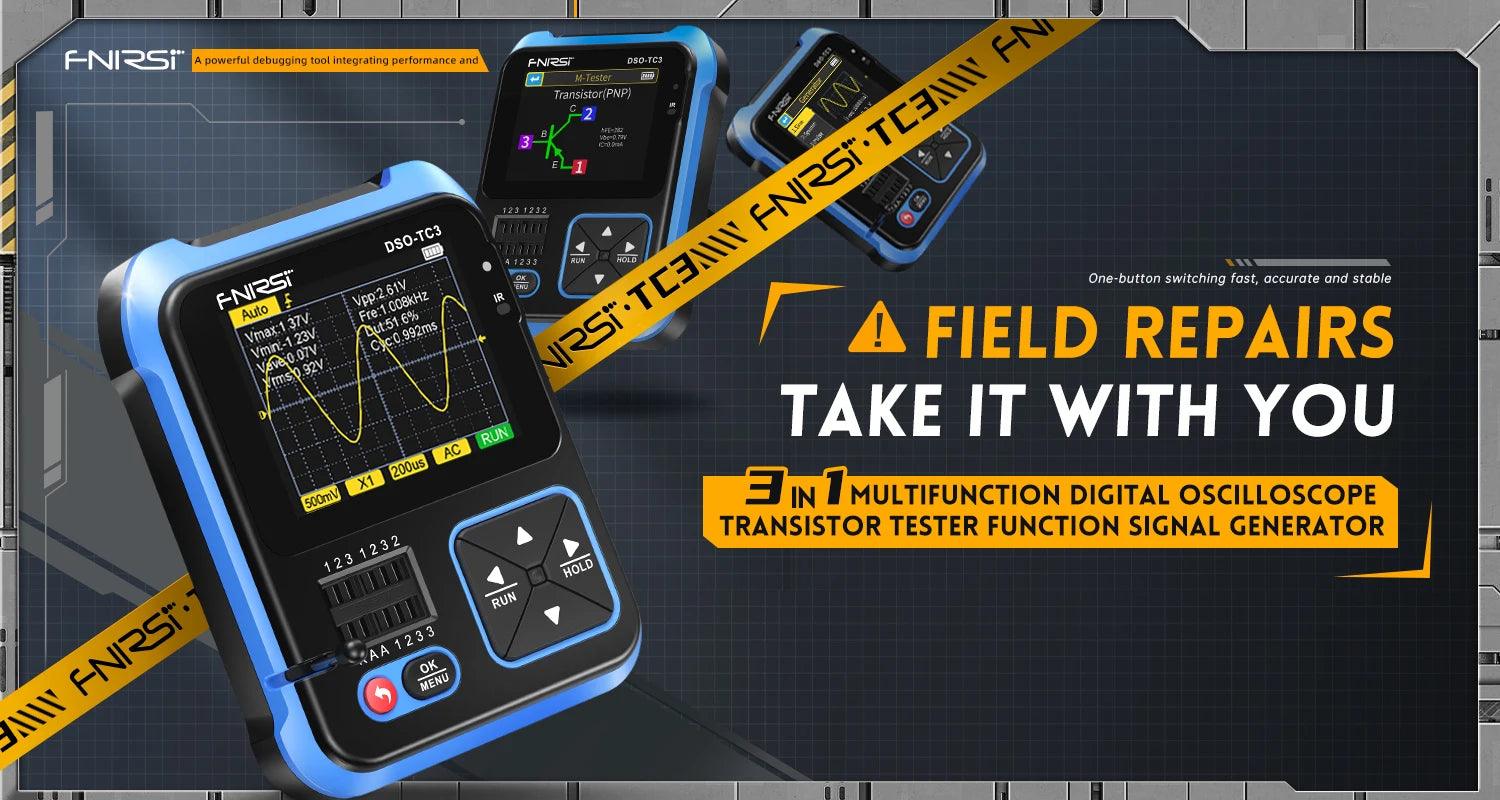

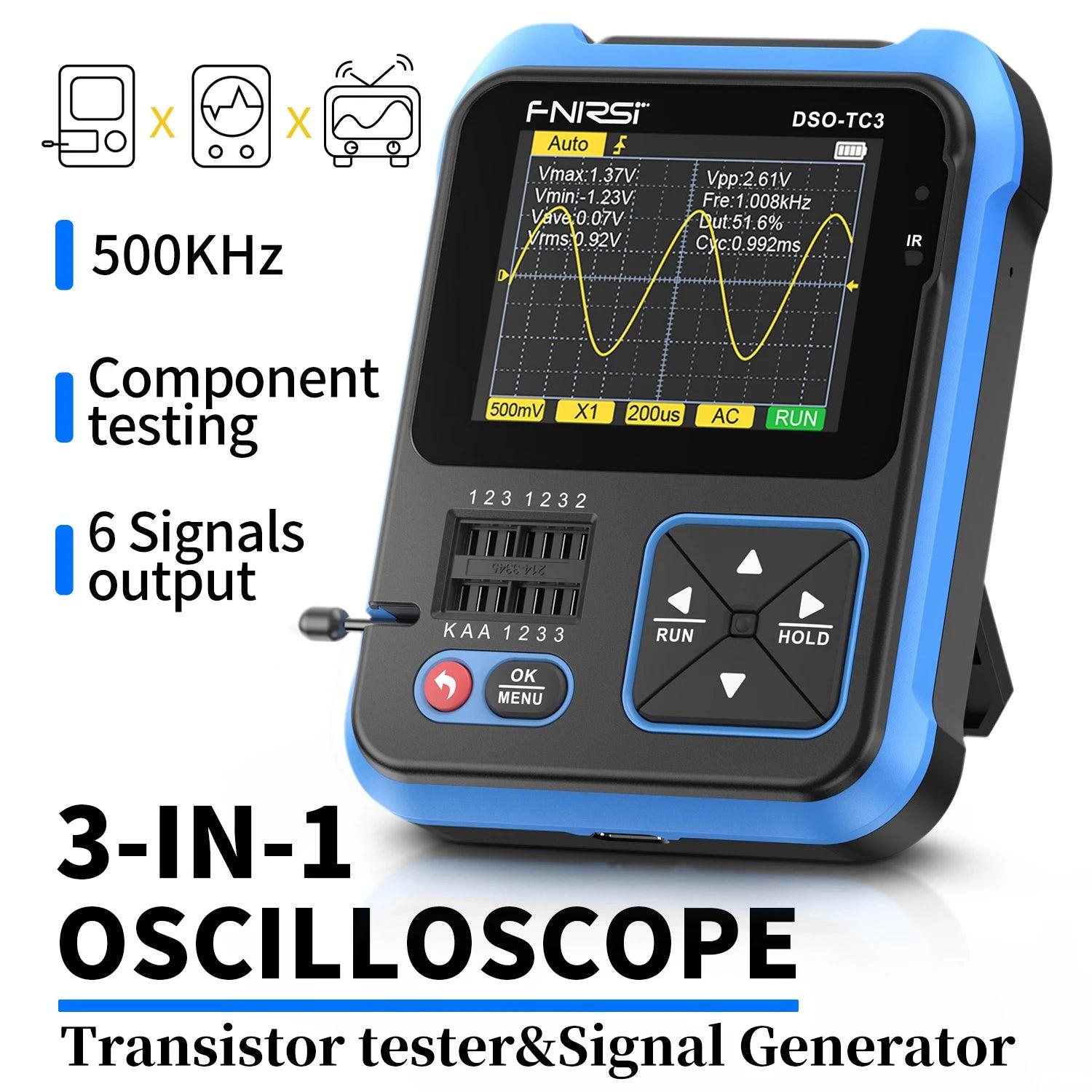

Model Number: DSO-TC3

Certification: CE

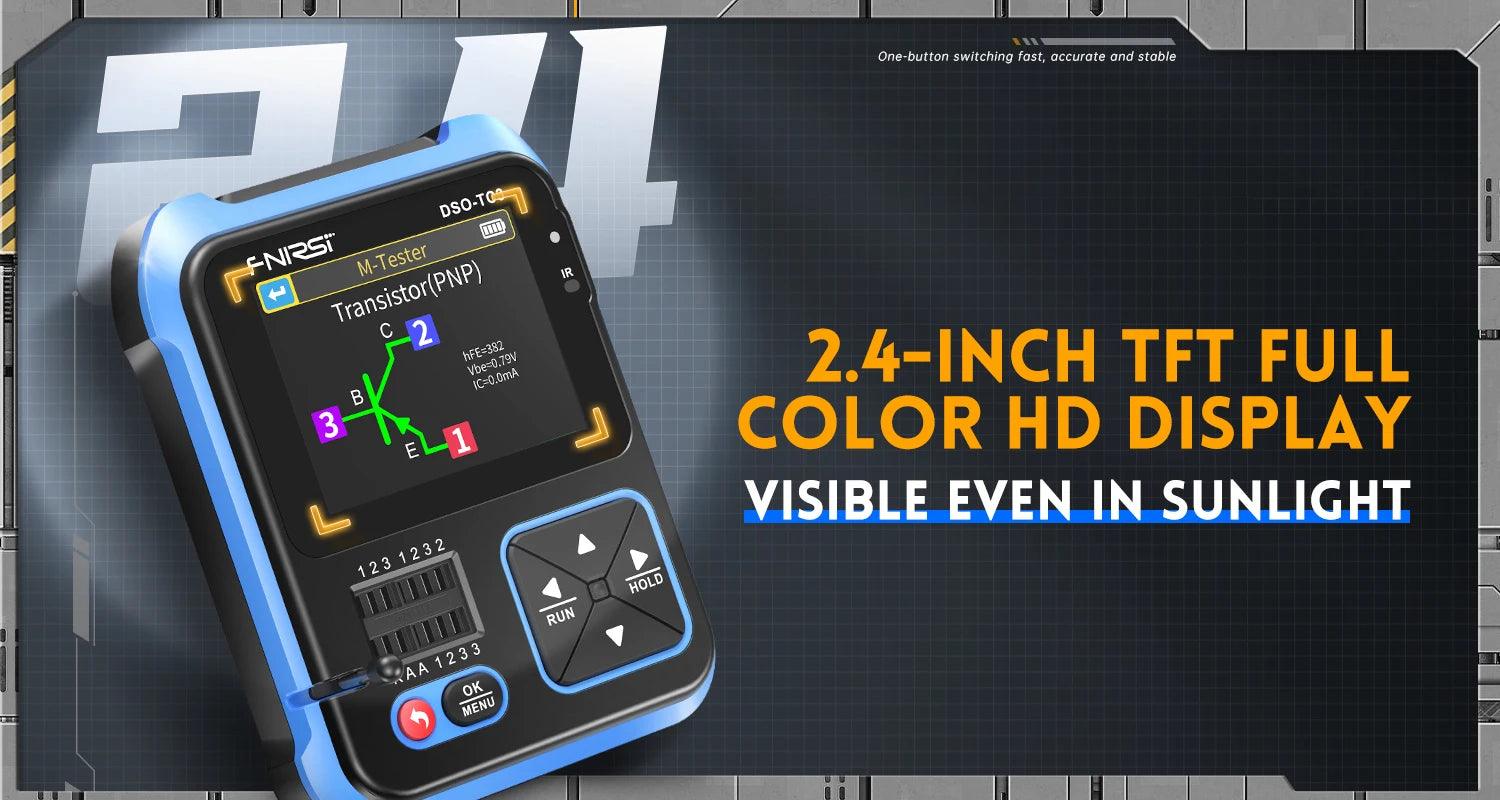

Display screen: 2.4 inch TFT color screen

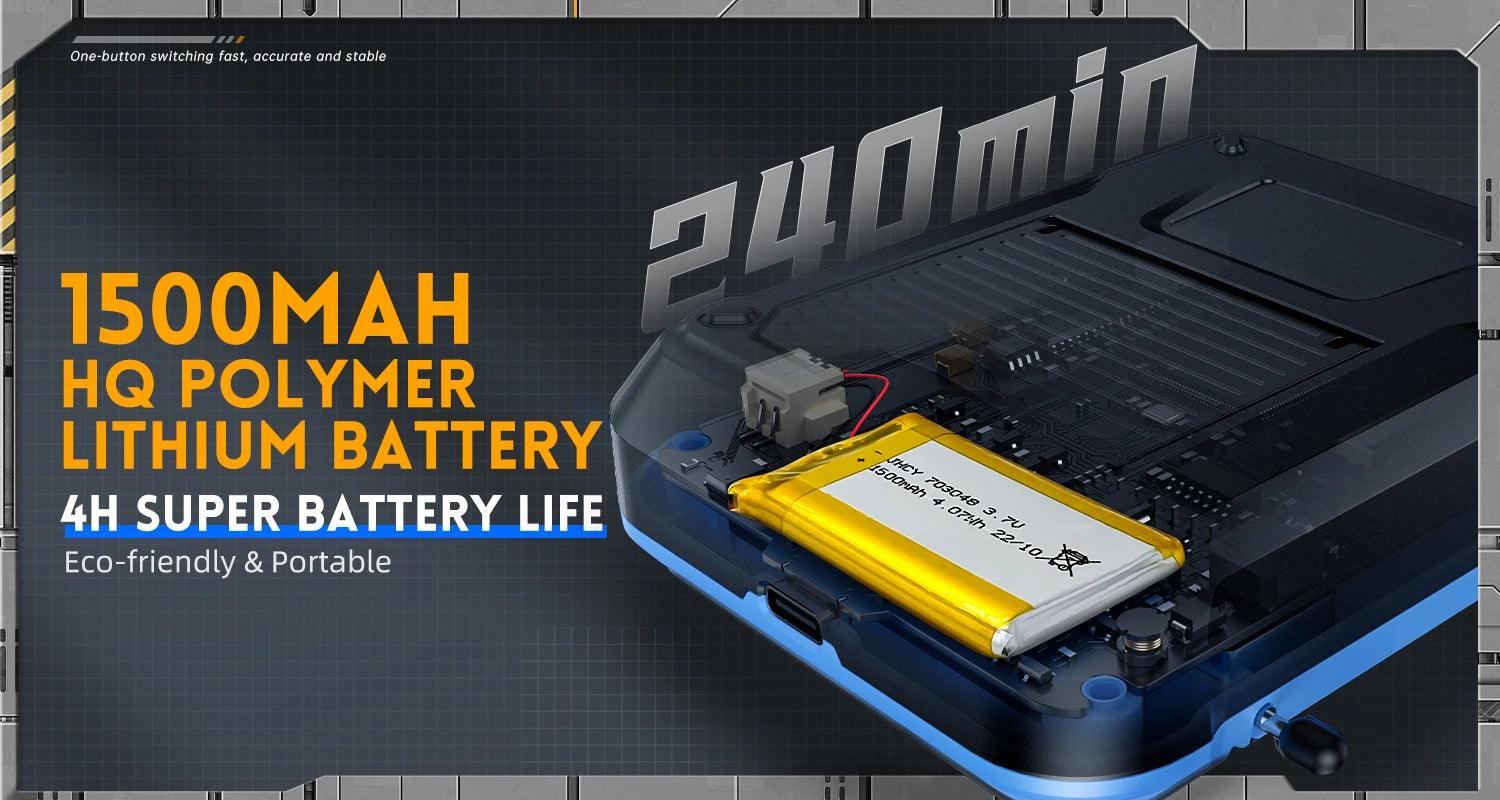

Supply voltage: Rechargeable lithium battery

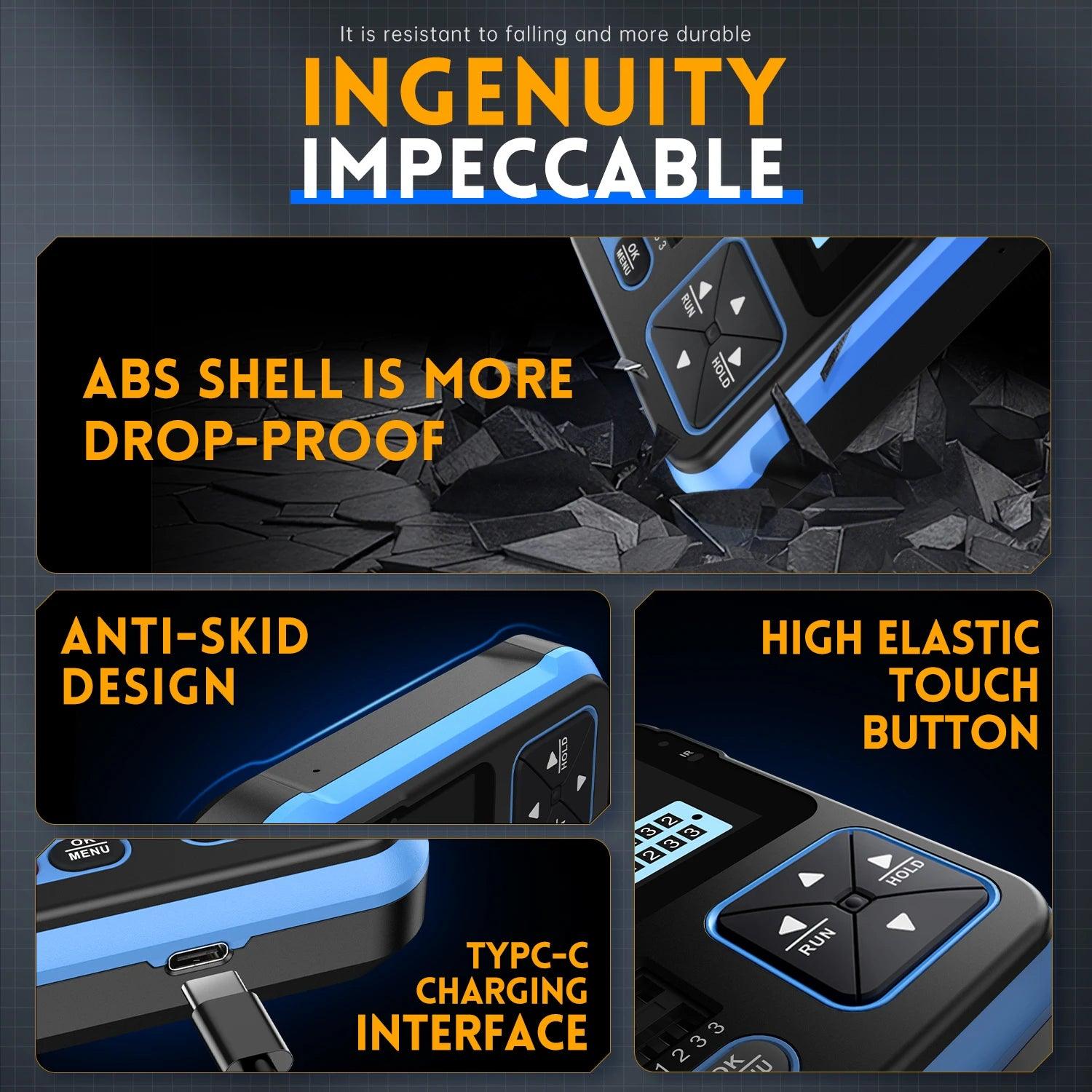

Charging specifications: Type-C 5V

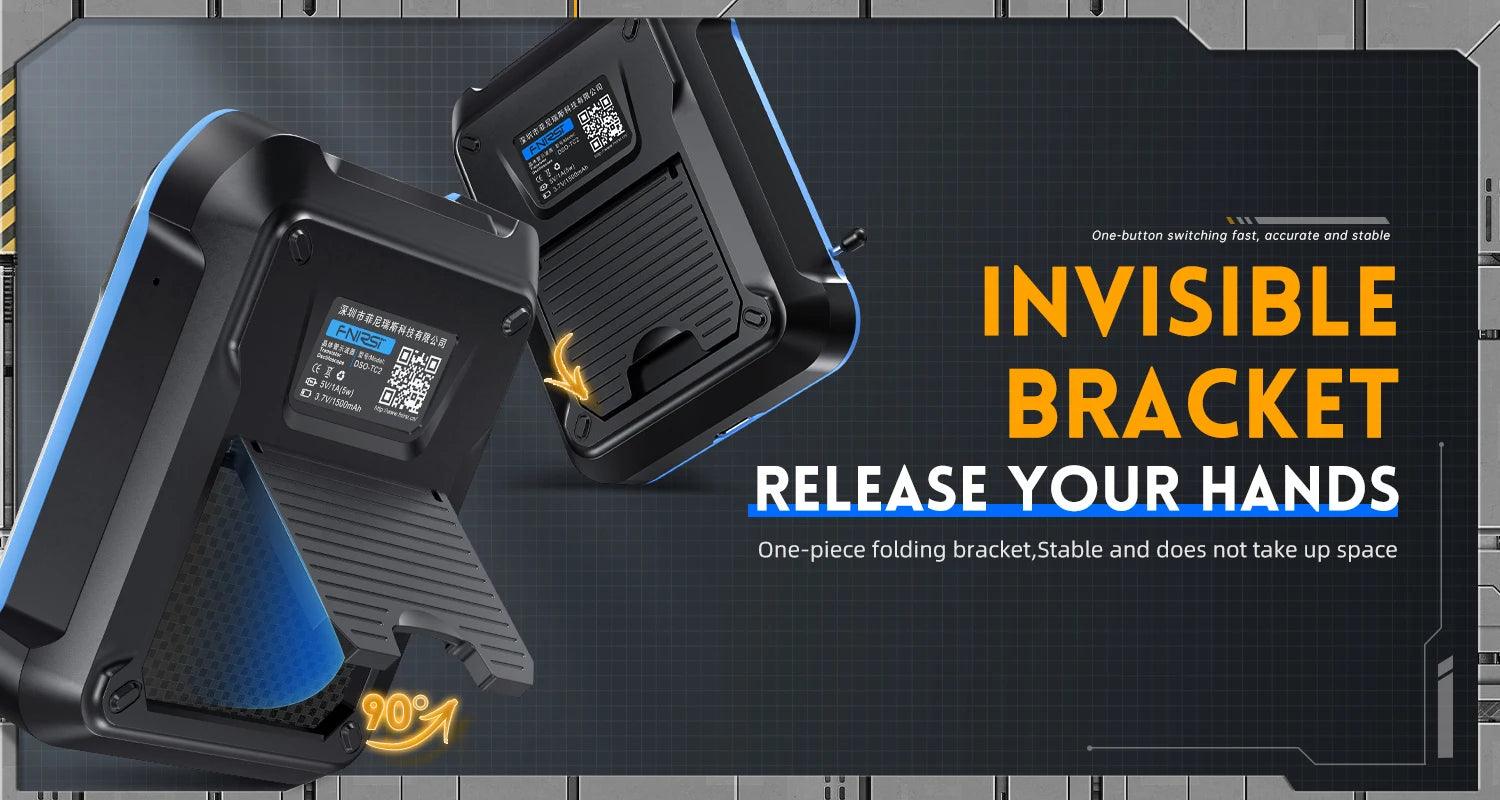

Bracket specifications: All-in-one foldable stand

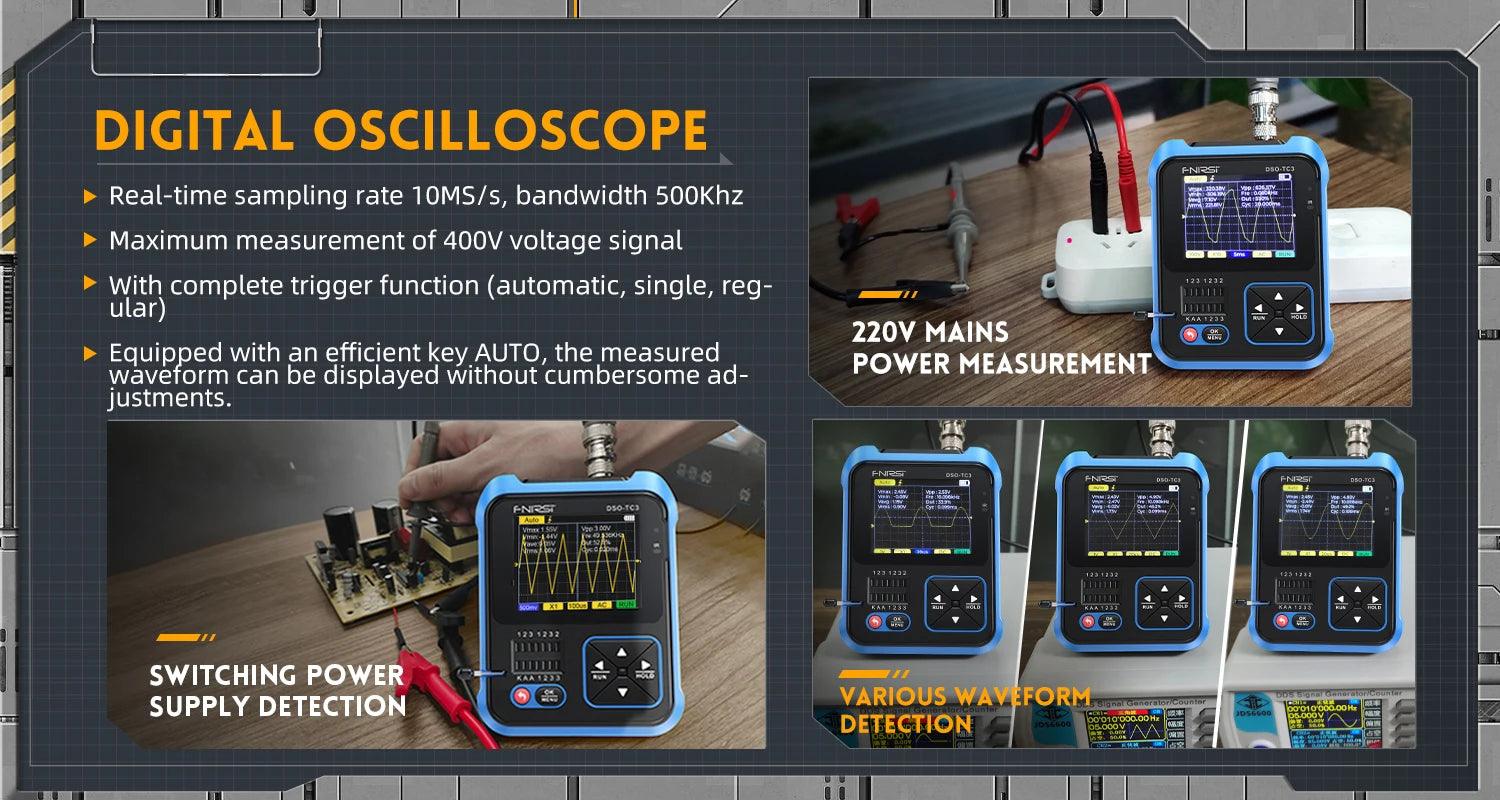

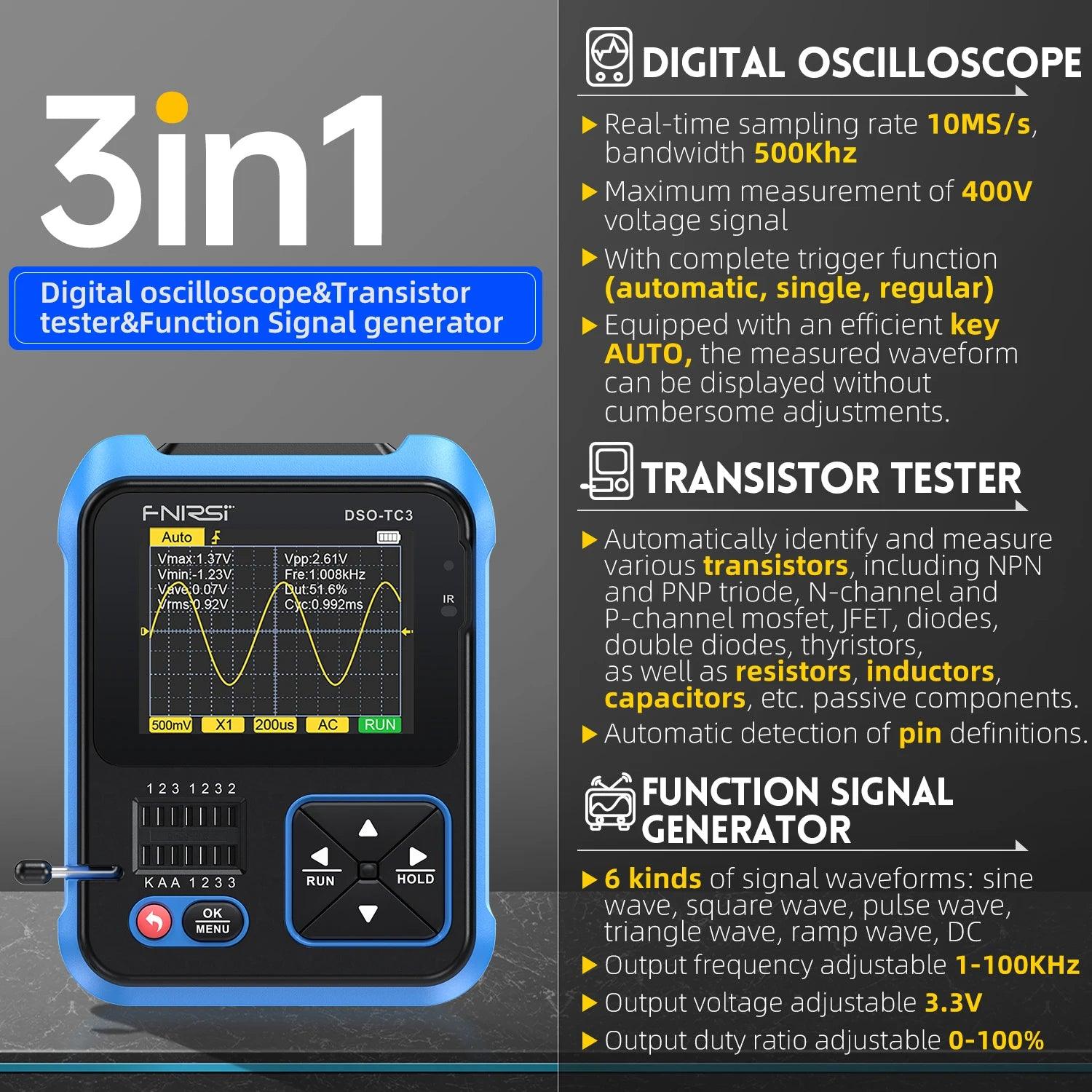

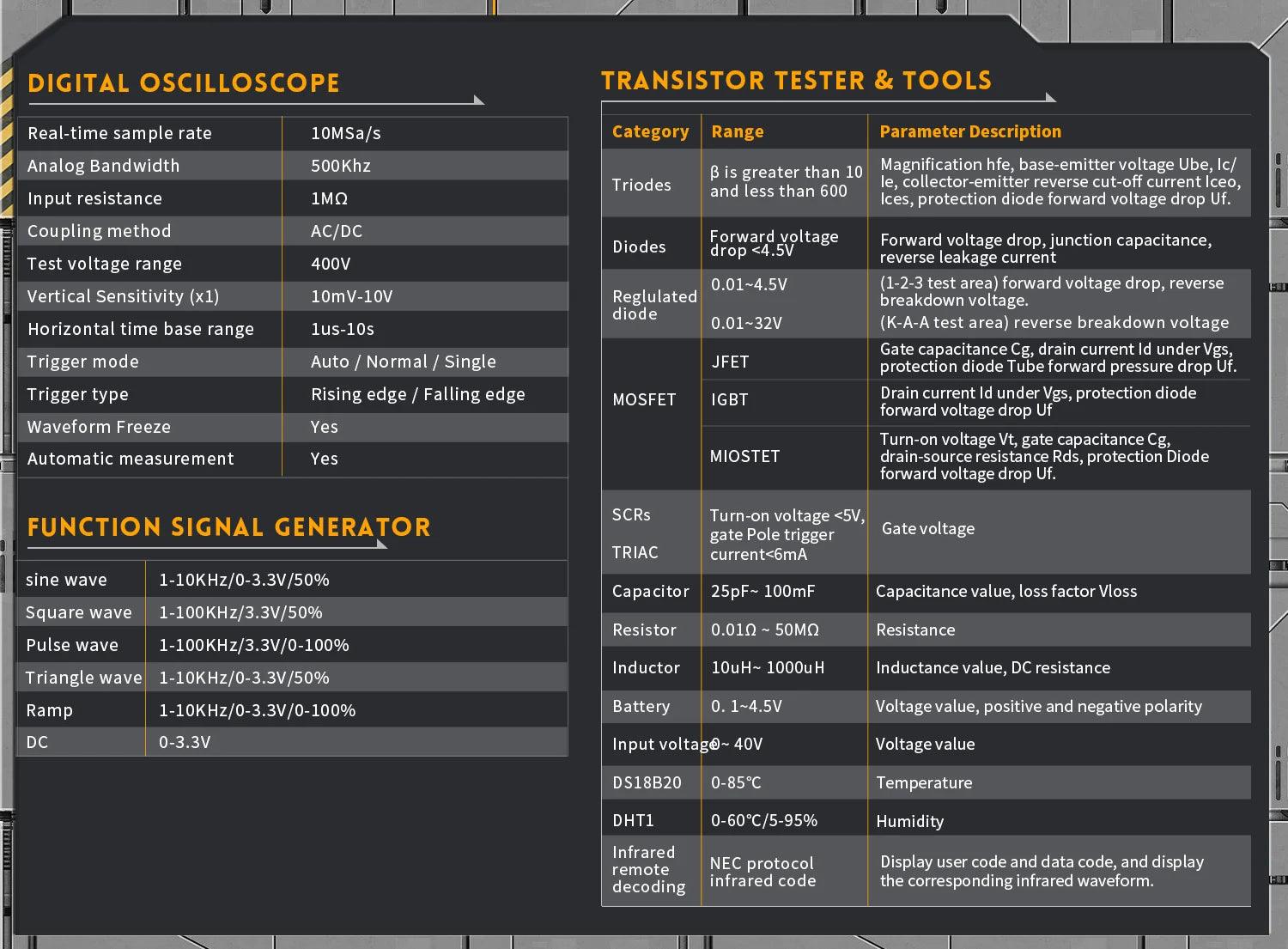

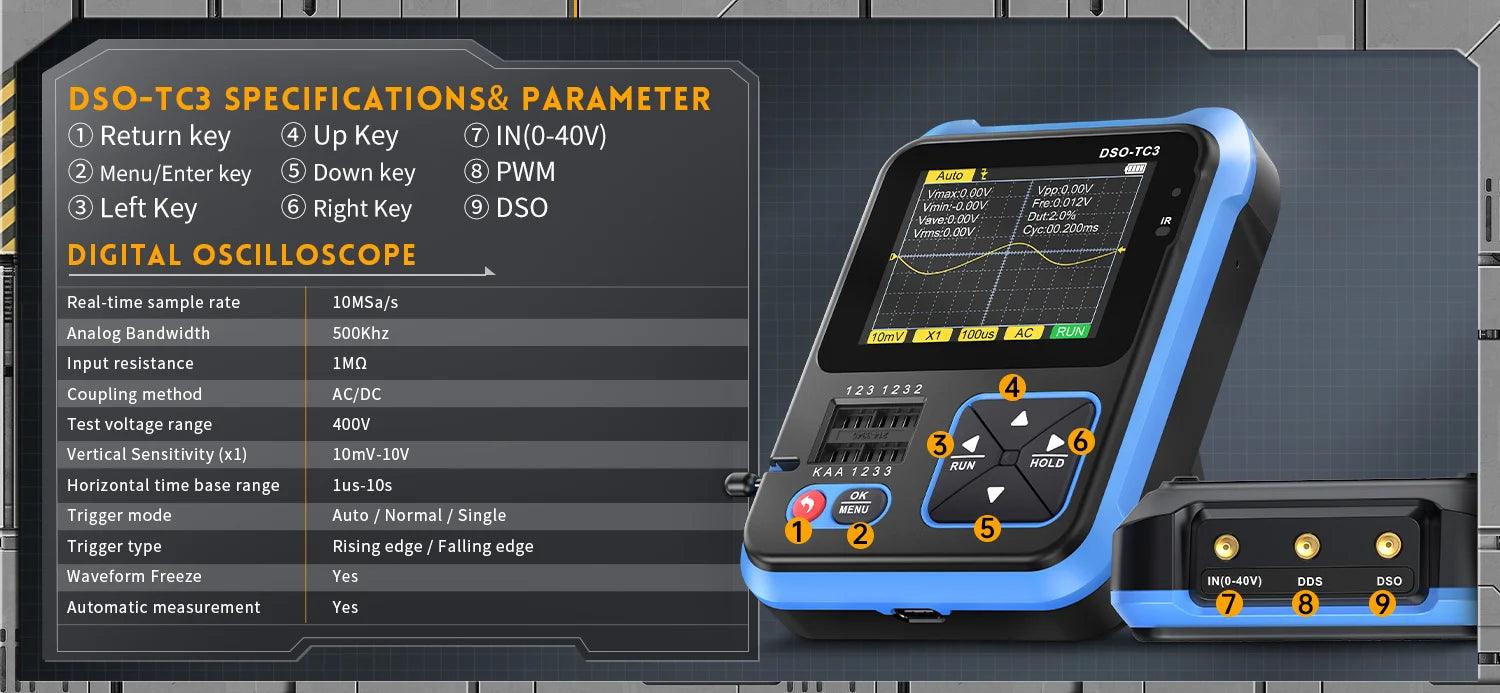

Real-time sample rate: 10MSa/s

Analog Bandwidth: 500Khz

Input resistance: 1MΩ

Coupling method: AC/DC

Test voltage range: 400V

Vertical Sensitivity (x1): 10mV-10V

Horizontal time base range: 1us-10s

Trigger mode: Auto / Normal / Single

Trigger type: Rising edge / Falling edge

Waveform Freeze: Yes

Automatic measurement: Yes

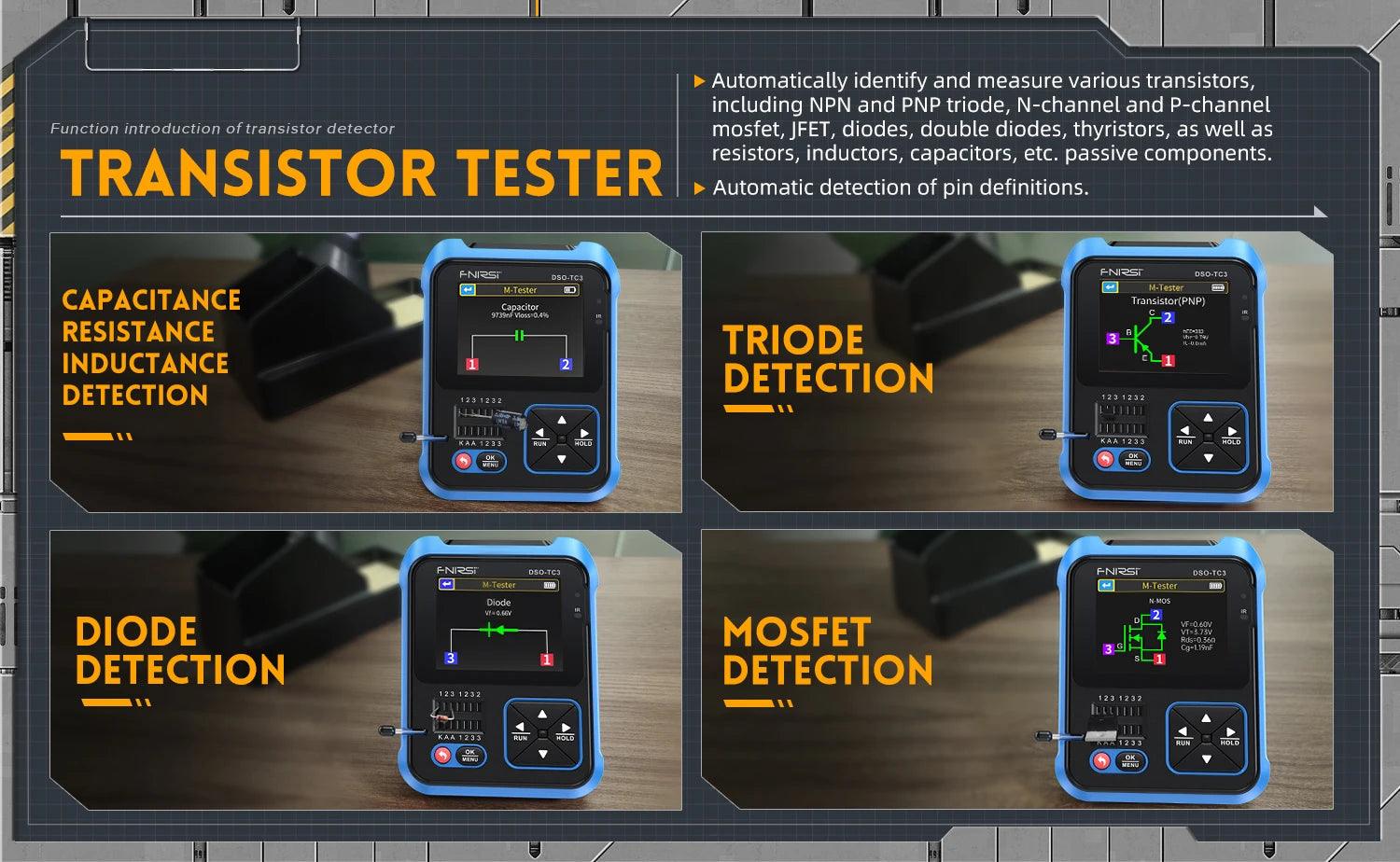

Diodes: Forward voltage drop <4.5V

Reglulated diode: 0.01~4.5V

MOSFET: JFET IGBT MOSFET

SCR: Turn-on voltage <5V, gate Pole trigger current <6mA

Capacitor: 5pF~100mF

Resistor: 0.01Ω~50MΩ

Inductor: 10uH~1000mH

Battery: 0.1~4.5V

Input voltage: 0~40V

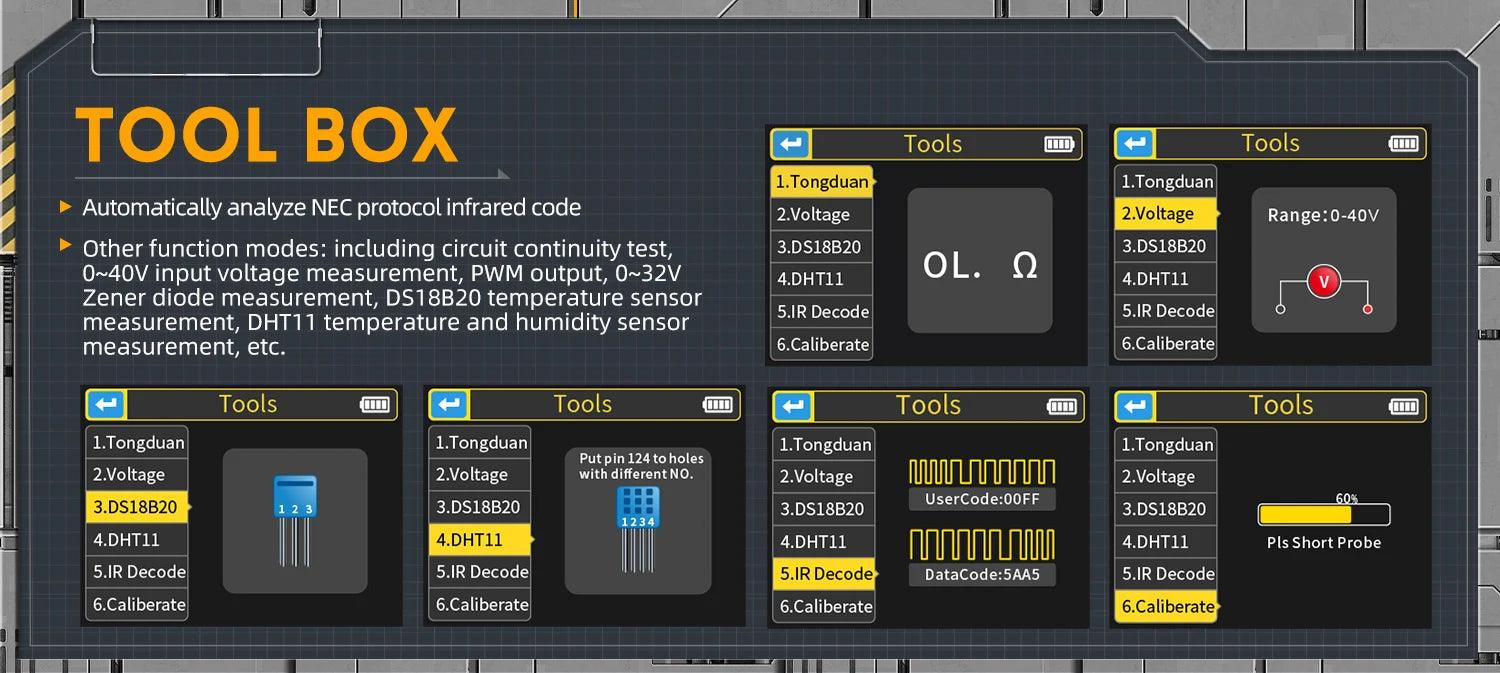

DS18B20: 0-85℃

DHT11: 0-60℃/5-95%

Infrared remote decoding: NEC protocol infrared code

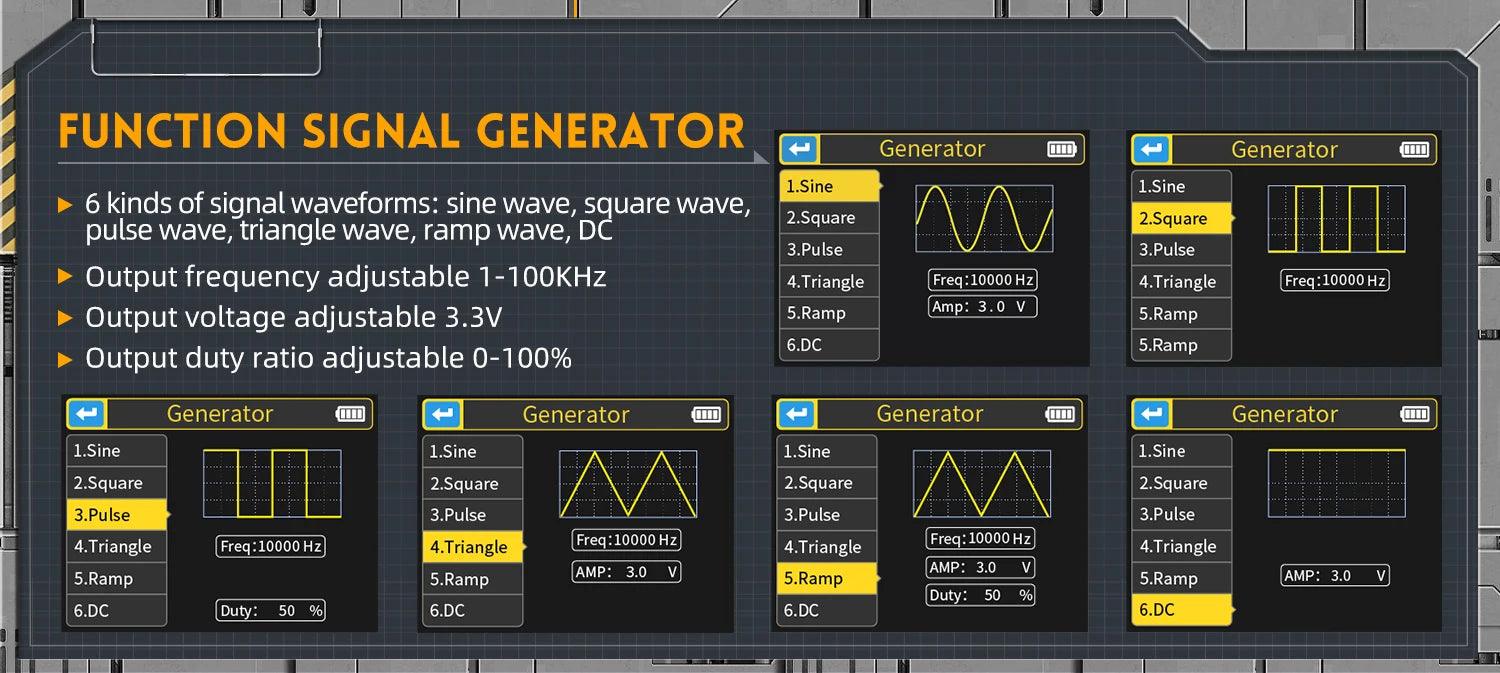

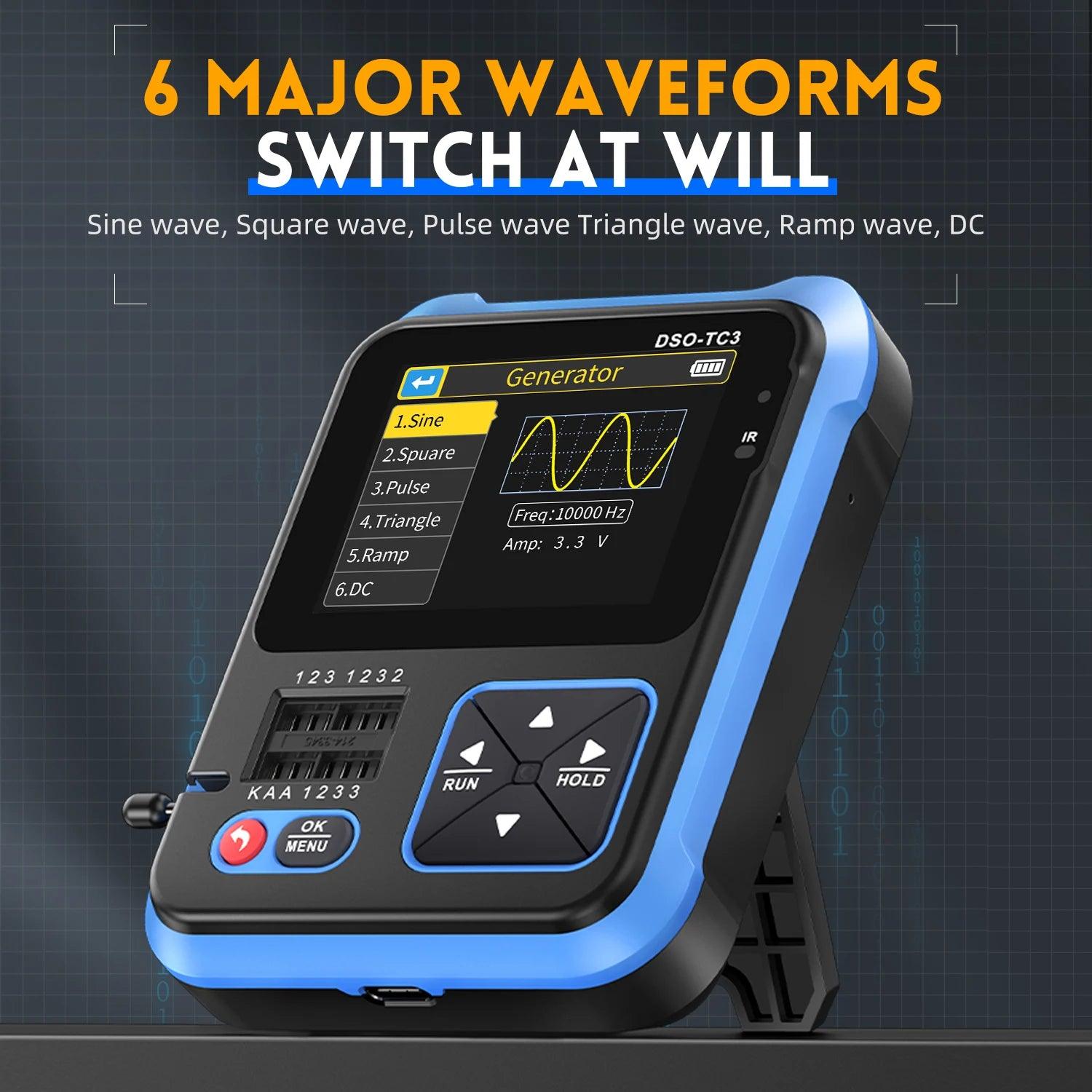

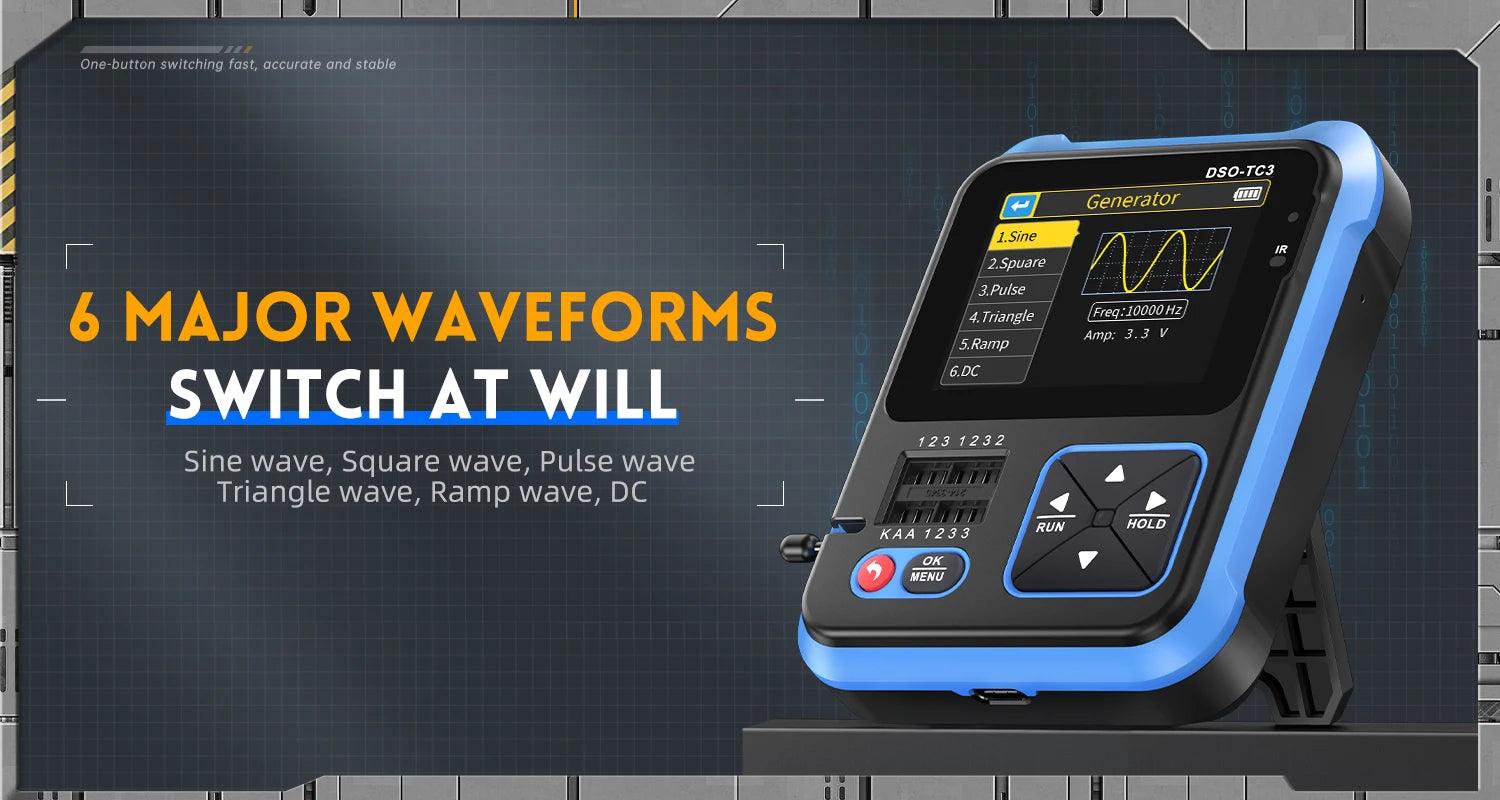

Triangle wave: 1-10KHz/0-3.3V/50%,1-10KHz/0-3.3V/50%

Square wave: 1-100KHz/3.3V/50%

Pulse wave: 1-100KHz/3.3V/0-100%

Ramp: 1-10KHz/0-3.3V/0-100%

DC: 0-3.3V
