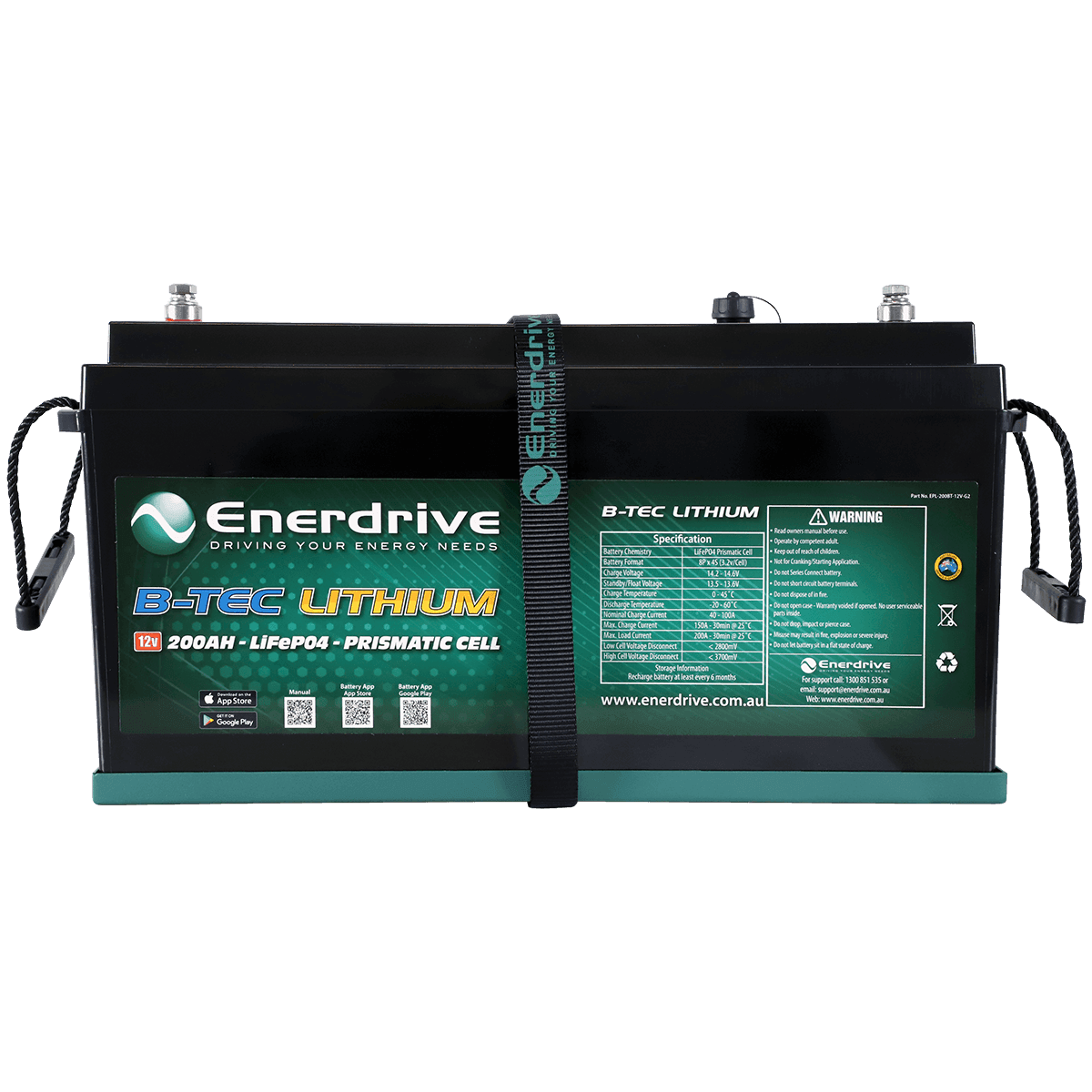

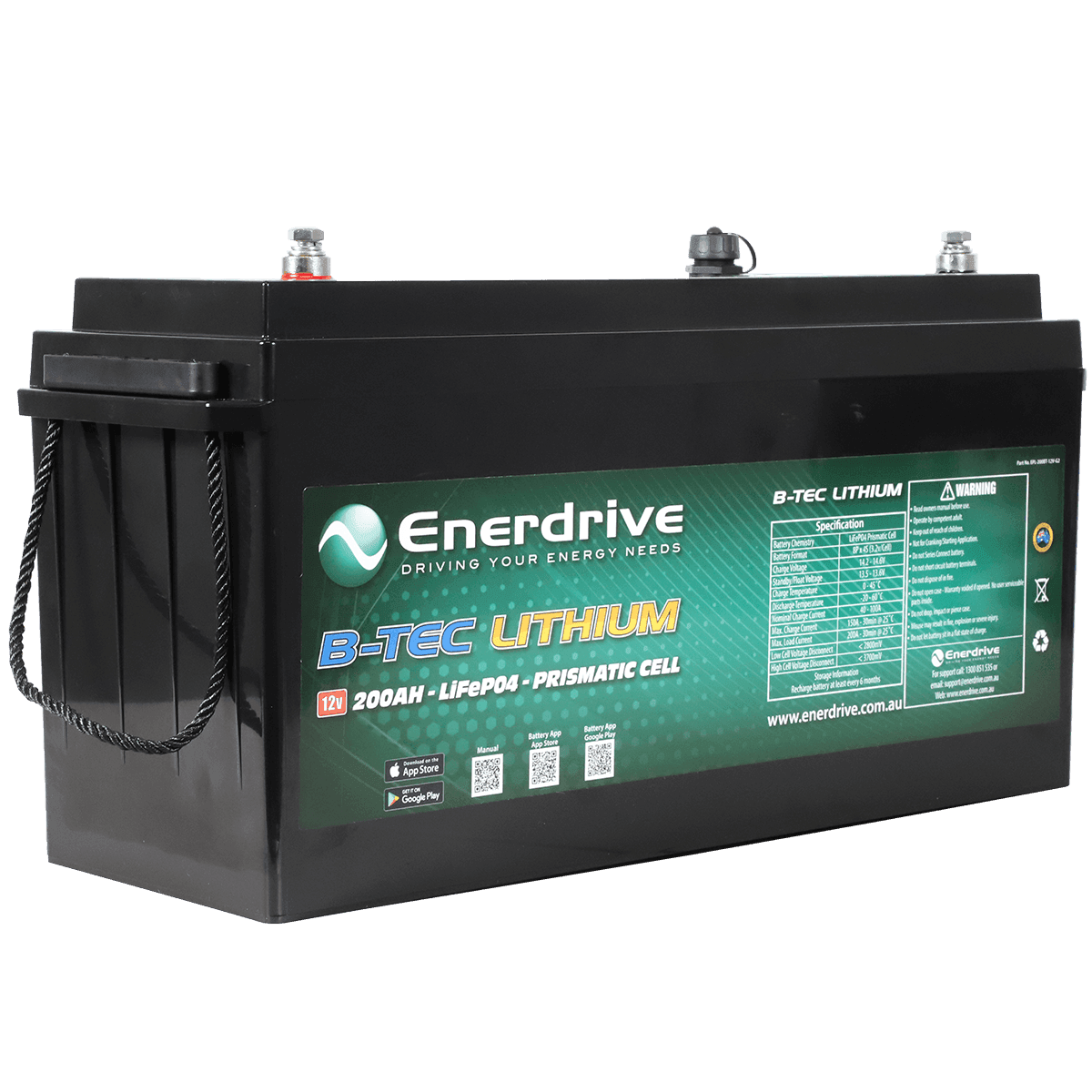

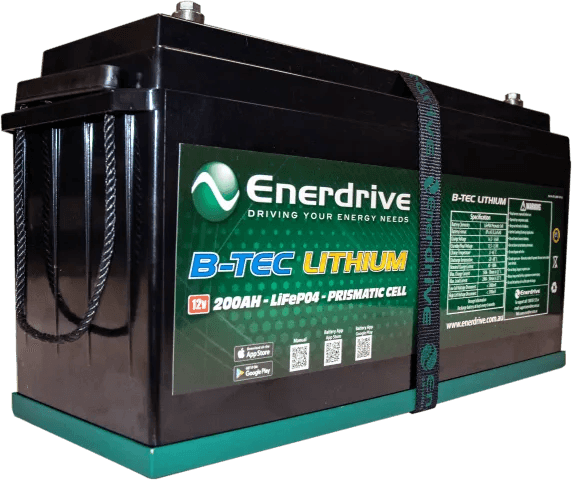

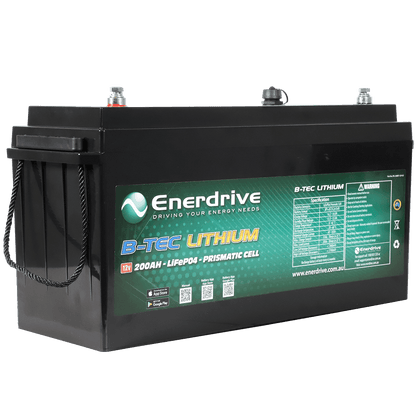

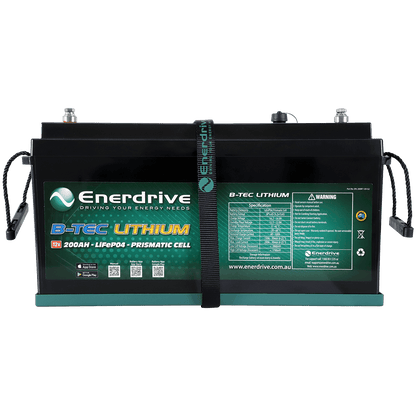

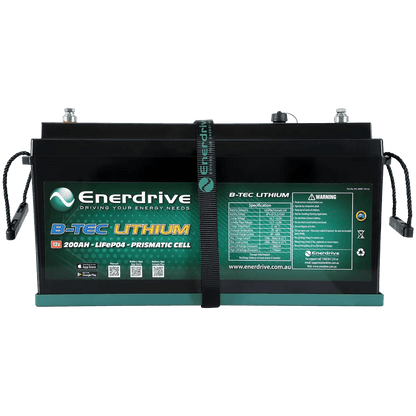

B-TEC 200amp / 12V LiFePo4 Battery BT Gen2

Name: B-TEC 200amp / 12V LiFePo4 Battery BT Gen2
Brand: Enerdrive Dometic
SKU: EPL-200BT-12V-G2
Price: 2250.0 AUD
Availability: InStock

$2,250.00

~~$2,690.00~~ $2,250.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

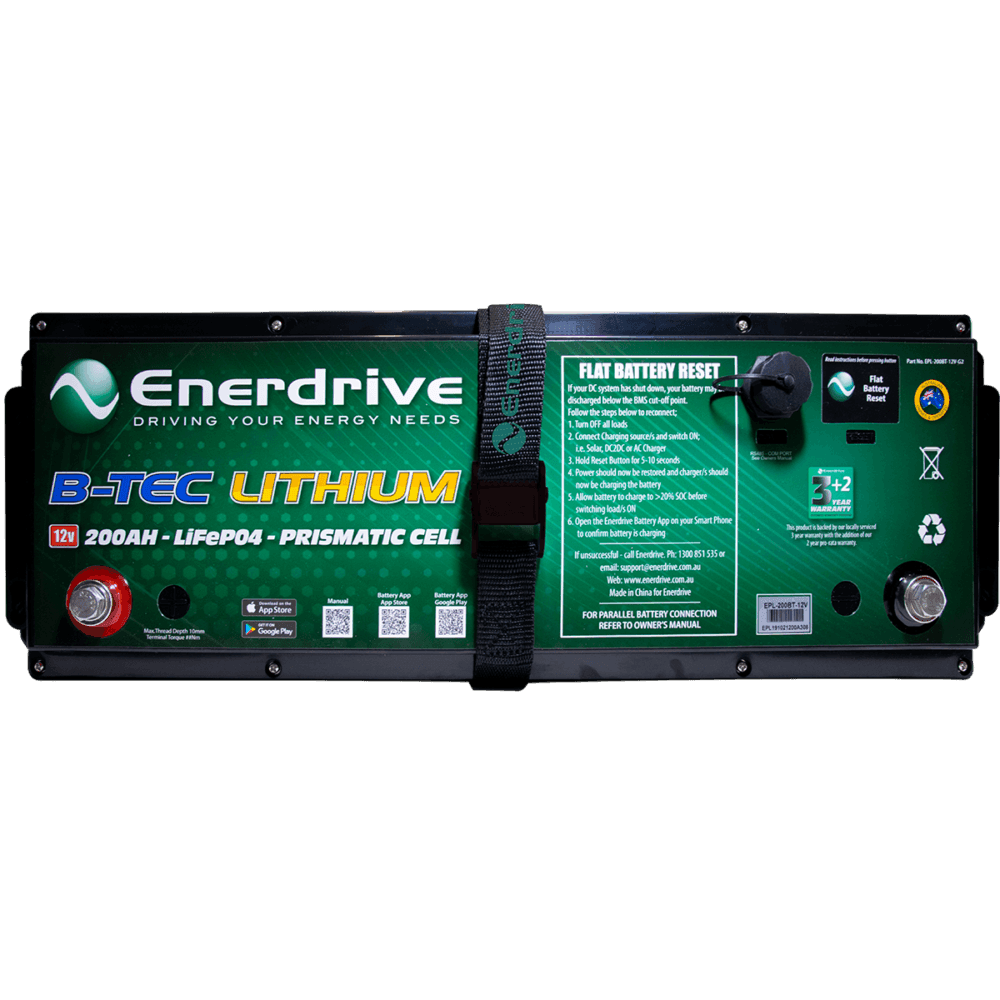

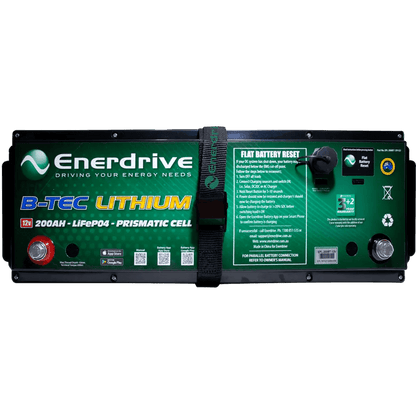

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

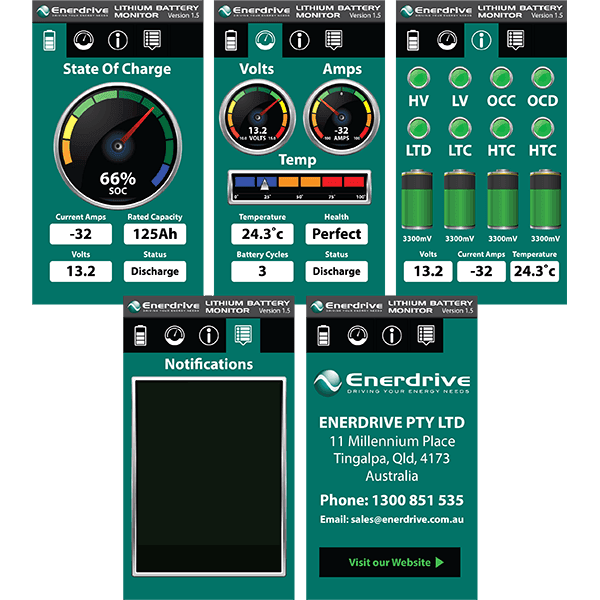

The Enerdrive Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

Battery Capacity
Battery Voltage
Battery Current (Amps)
Battery State of Charge (SOC)
Battery State of Health (SOH)
Battery Status
Individual Cell Voltage
Battery Temperature
Battery Cycles
Battery Alarms
Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY

*PLEASE NOTE, OCCASIONALLY SOME BATTERY PRODUCTS CAN HAVE WAIT TIMES FOR PRODUCTION OF UP TO 4 WEEKS* WE RECOMMEND CONTACTING US IF YOU HAVE ANY QUESTIONS ON STOCK AVAILABILITY

Specifications

Normal Specification EPL-200BT-12V G2
Nominal Voltage 12.8V
Nominal Capacity 200Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.40 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.80V
Maximum Charge Current 150A @ 25°C for 30mins
Recommended Charge Current for Maximum Life ≤60A
Standard Discharge Specification
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge Current 200A @ 25°C ±5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤11.20V
Circuit Protection
The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Over-Charge Protection
Over-charge Protection Per Cell 3.90V ± 0.03V
Over-charge Release Per Cell 3.60V ± 0.05V
Over-charge Release Method Discharge below release voltage
Over-Discharge Protection
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Over Current Protection
Discharge Over Current 220A for 30s – 450A for 1s
Protection Reset Time 5s Auto Release
Over Current Release Method Disconnect Load
Over Temperature Protection
Battery Discharge Over Temperature Protection to 65°C ± 5°C
Release at 50°C ± 5°C
Battery Charge Over Temperature Protection to 55°C ± 5°C
Release at 45°C ± 5°C
Short Circuit Protection Auto release after 5s
Mechanical Characteristics
Dimensions 505mm
172.5mm
265mm
Weight Approx 25.0 Kg
Storage Information
Temperature & Humidity Range ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH
≥ 30 days -10°C ̴ 30°C, 45 ̴ 75% RH
Self-discharge Rate ≤ 3% Per Month
