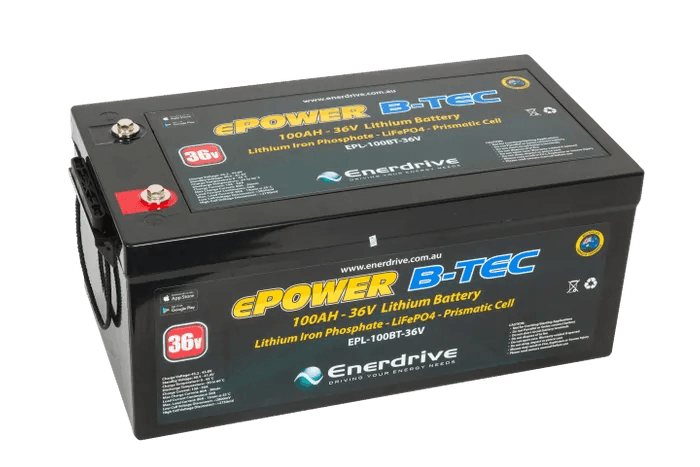

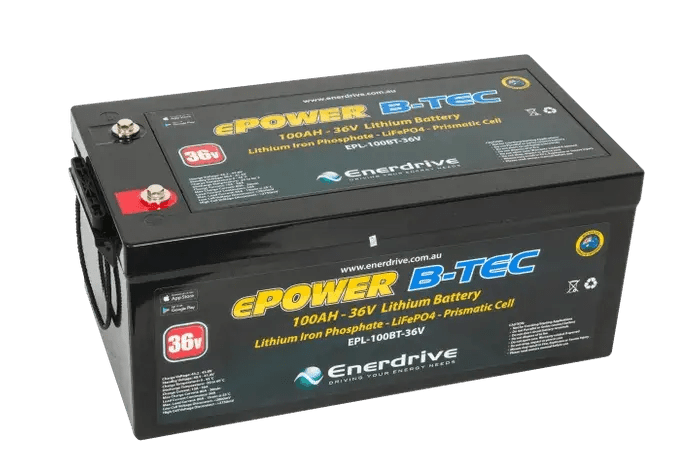

B-TEC 100amp / 36V LiFePo4 Battery BT

B-TEC 100amp / 36V LiFePo4 Battery BT

$3,895.00
$4,640.00 $3,895.00
Sale Sold out
Tax included. Shipping calculated at checkout.
The Enerdrive Enerdrive B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
  •     Battery Capacity
  •     Battery Voltage
  •     Battery Current (Amps)
  •     Battery State of Charge (SOC)
  •     Battery State of Health (SOH)
  •     Battery Status
  •     Individual Cell Voltage
  •     Battery Temperature
  •     Battery Cycles
  •     Battery Alarms
  •     Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY

*PLEASE NOTE, OCCASIONALLY  SOME BATTERY PRODUCTS CAN HAVE WAIT TIMES FOR PRODUCTION OF UP TO 4 WEEKS*  WE RECOMMEND CONTACTING US IF YOU HAVE ANY QUESTIONS ON STOCK AVAILABILITY

Specifications

Specifications
Normal Specification EPL-100BT-36V
Nominal Voltage 38.4V
Nominal Capacity 100Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 43.20 ̴ 43.80V
Standby (Float) Voltage 40.5 ̴ 41.40V
Maximum Charge Current 50A @ 25°C for 30mins
Recommended Charge Current for Maximum Life ≤33A
Standard Discharge Specification
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 33.00 ̴ 43.80V
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤33.60V
Circuit Protection The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Over-Charge Protection
Over-charge Protection Per Cell 3.90V ± 0.03V
Over-charge Release Per Cell 3.60V ± 0.05V
Over-charge Release Method Discharge below release voltage
Over-Discharge Protection
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥38.4V
Over Current Protection
Discharge Over Current 110A for 30s – 450A for 1s
Protection Reset Time 5s Auto Release
Over Current Release Method Disconnect Load
Over Temperature Protection
Battery Discharge Over Temperature Protection to 65°C ± 5°C
Release at 50°C ± 5°C
Battery Charge Over Temperature Protection to 55°C ± 5°C
Release at 45°C ± 5°C
Short Circuit Protection Auto release after 5s
Mechanical Characteristics
Dimensions Length 519mm
Width 273mm
Height 222mm
Weight Approx 37.7 Kg
Storage Information
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH
≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Self-discharge Rate ≤ 3% Per Month
Note: Specifications subject to change without notice.
