Ultra Vision Lighting

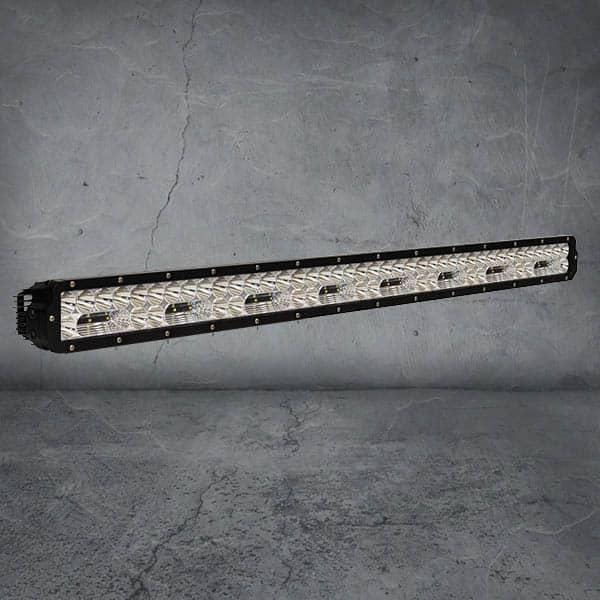

405W 45″ LED Light Bar

405W 45″ LED Light Bar

Regular price $1,719.00
Regular price Sale price $1,719.00
Sale Sold out
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $429.75 AUD fortnightly with More info

Colour Temperature
Hi/Lo
Mounting Type
  • NEW Performance you won’t believe – unrivalled distance and width outputs
  • NEW Widr® Optic – This unique reflector delivers market leading output, achieving huge distance with excellent spread

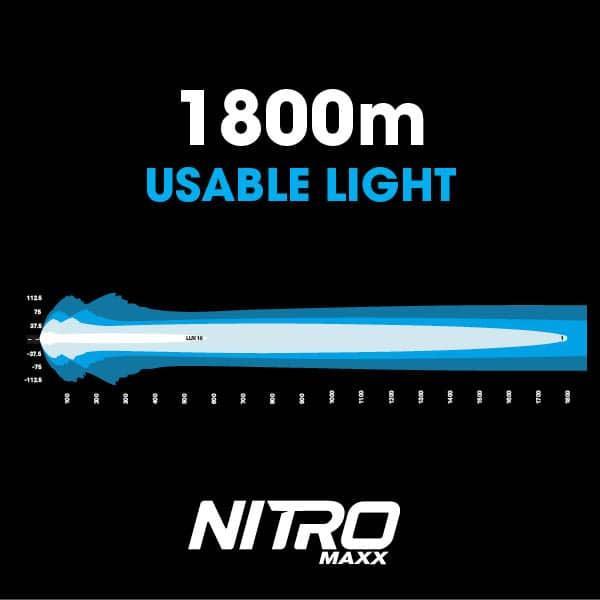

  • NEW Usable light – now 1800M
  • Designed and Made in Australia for the toughest environments on earth
  • Available with either 4500k or 5700k Colour Temperature
  • Both side and base mounts are available
  • 5 Year Warranty
  • A wiring harness and anti-theft nuts are included free of charge
  • Includes clear protective lens covers

The new Nitro Maxx range of light bars now have boosted performance, with the updated 405W LED light bar delivering an increased beam distance of 54%.

The Nitro light bars have become a hugely popular addition to the Nitro Maxx range. Featuring the Widr® reflector for width and a Contrl® reflector for distance, the Nitro Light Bar takes performance to another level.

The Hi/Lo function provides you with an even greater amount of flexibility in a range of driving conditions.

For the 5700K Hi & Lo model light bars:

  • Both Hi-Output & Lo-Output functions utilise 5700K LED’s, achieving 170° spread of light with our patented Widr® reflector.

For the 4500K Hi & Lo model light bars:

  • The Hi-Output function utilises a combination of 4000K and 5700K LED’s (4500K combined average) which gives the perfect open road driving experience with optimal distance and a 170° spread of light.
  • The Lo-Output * feature drops the light output to 3 x 4000K LEDs utilising our patented Widr® reflector for 170° of spread. This is perfect for foggy or dusty conditions and for reducing the glare on road signs.

*Please note the Lo-Output feature doesn’t work alongside the vehicle’s low beam, it just reduces the amount of light coming out of the light bar, while the vehicle’s high beam is still on.

Both side and base mounts are available, ensuring that fitment is simple in any application.

A wiring harness and anti-theft nuts are supplied with each bar. Please specify base or side mounting at the time of ordering.

Beam Pattern

405W NITRO LIGHT BAR SPECIFICATIONS
Wattage 400 Watts
Light Source 80 x 5w LED's
Light Output – Raw 48,800 Lumens
Light Output – Effective 37,750 Lumens
Voltage 9-36V
Current Draw 26A
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP68
Connector Type Plug 2 Pin std Deutsch
Housing 6063 T5 Aluminium
Outer Lens Construction Polycarbonate
Brackets Sliding Base / Side Mounts
Colour Temperature 4500K or 5700K
Lifespan 50,000 Hours

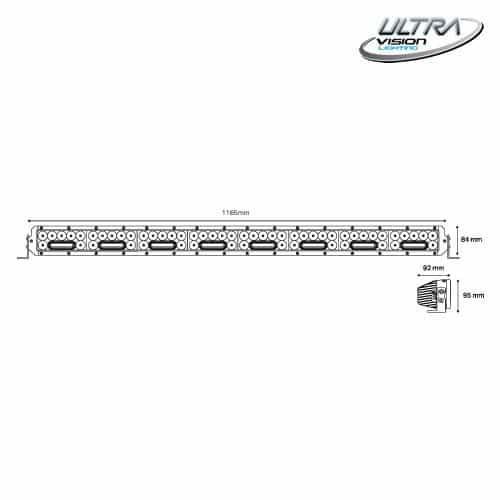

Dimensions 1165 x 92 x 84mm
Net Weight 7.7kg
Mounting Suitable Base or Side Mount
Beam Types Combo and Widr
Warranty 5 Years
Harness Included Yes
