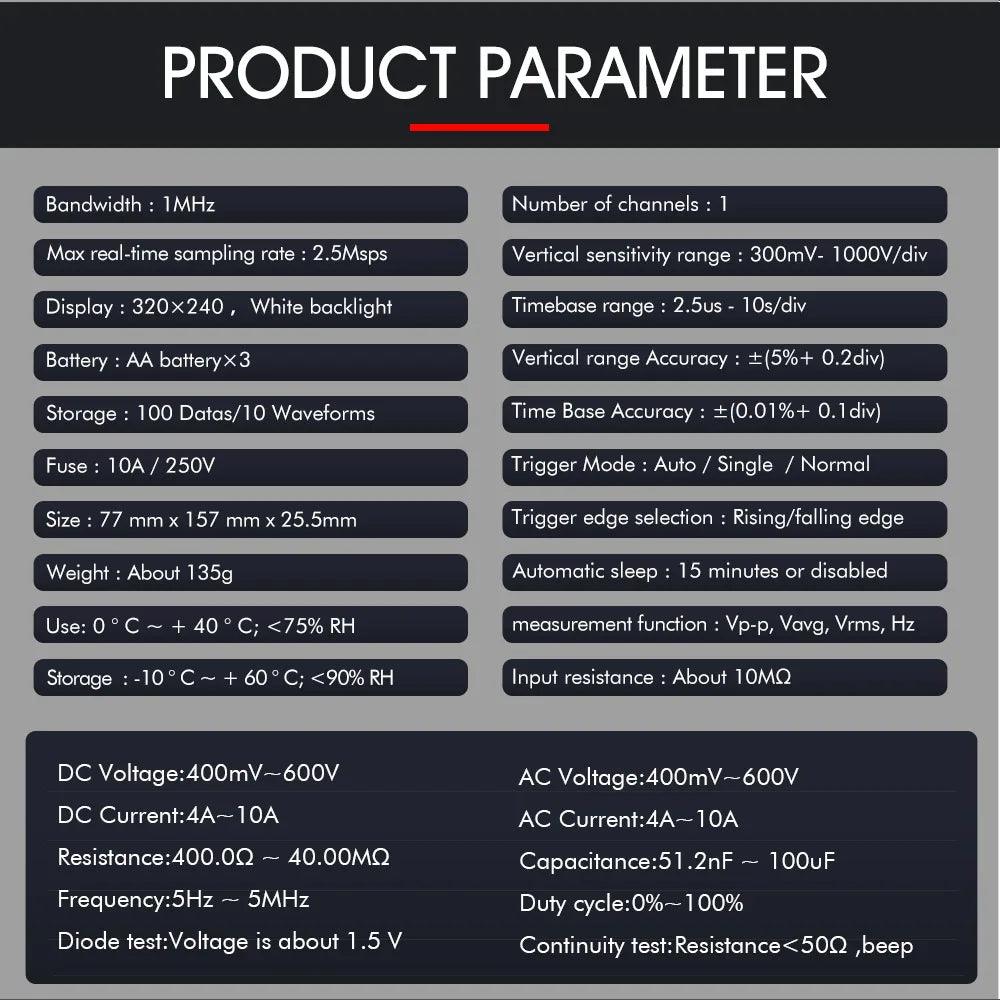

SPECIFICATIONS

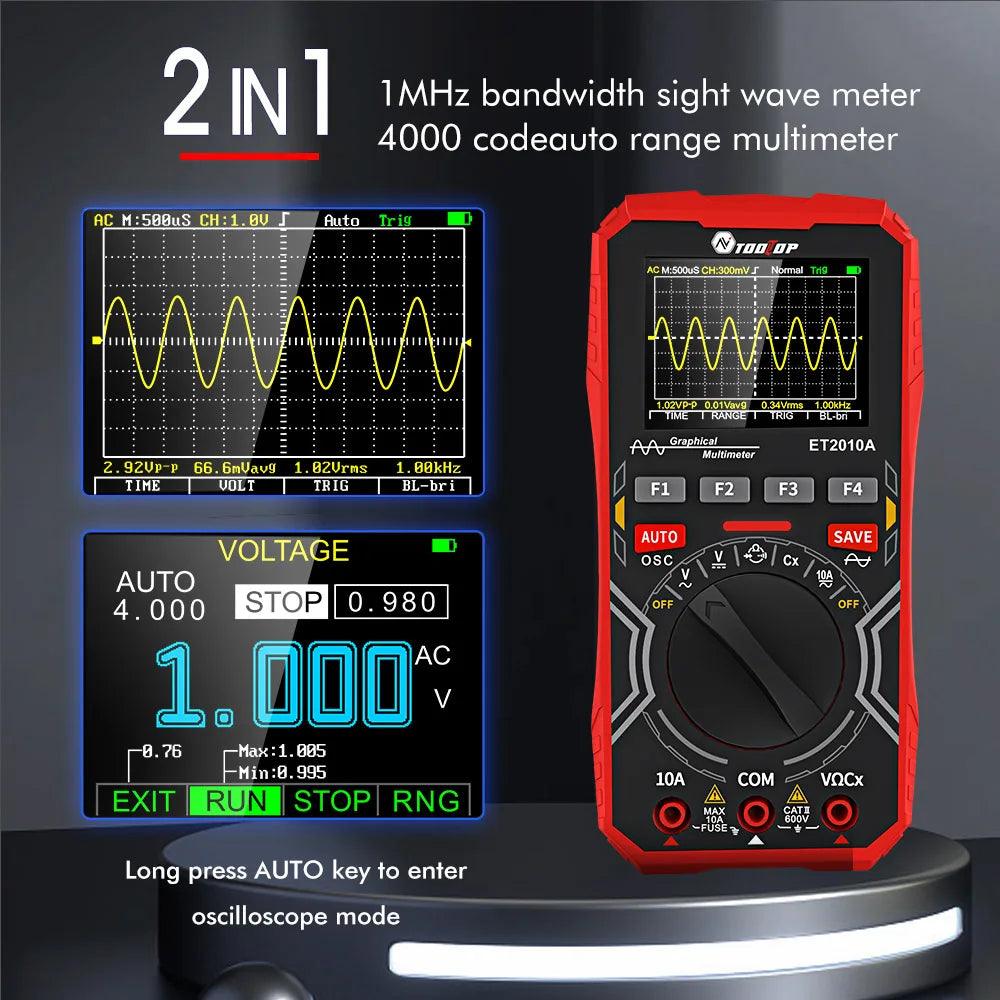

Oscilloscope Multimeter: Digital Oscilloscope Multimeter

Waveform Storage Oscilloscope:: Digital Oscilloscope

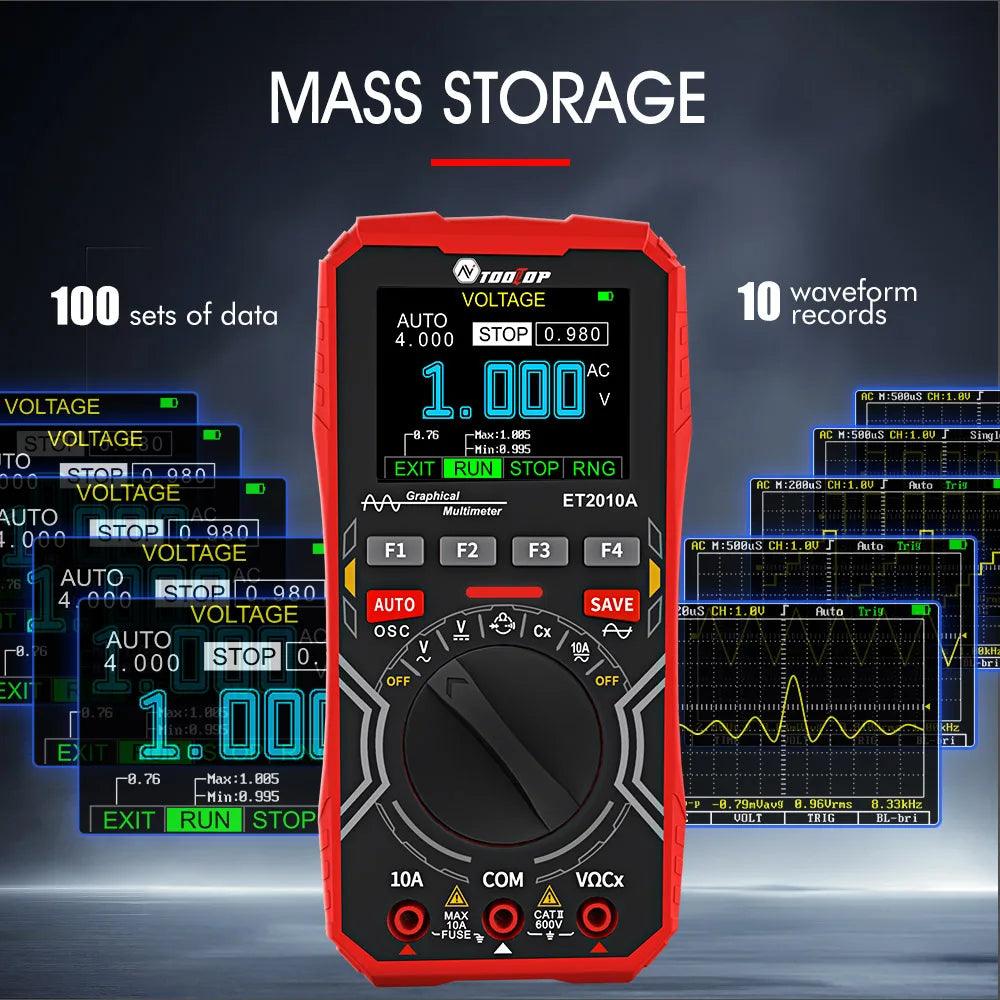

Storage: 100 groups of data / 10 groups of waveforms

Vertical sensitivity range: 300mV-1000V/div

Time base range: 2.5us-10s/div

Vertical waveform accuracy: ±(5%+0.2div)

Time base accuracy: ±(0.01%+0.1div)

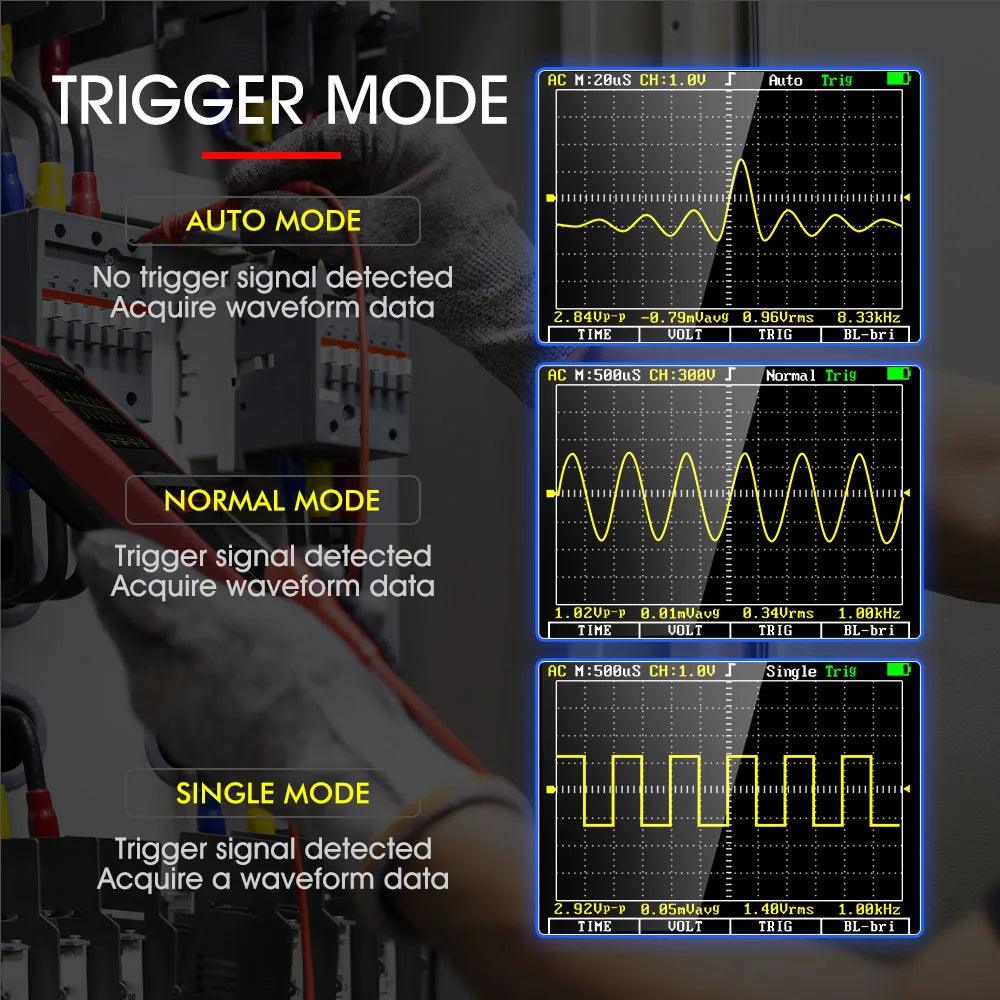

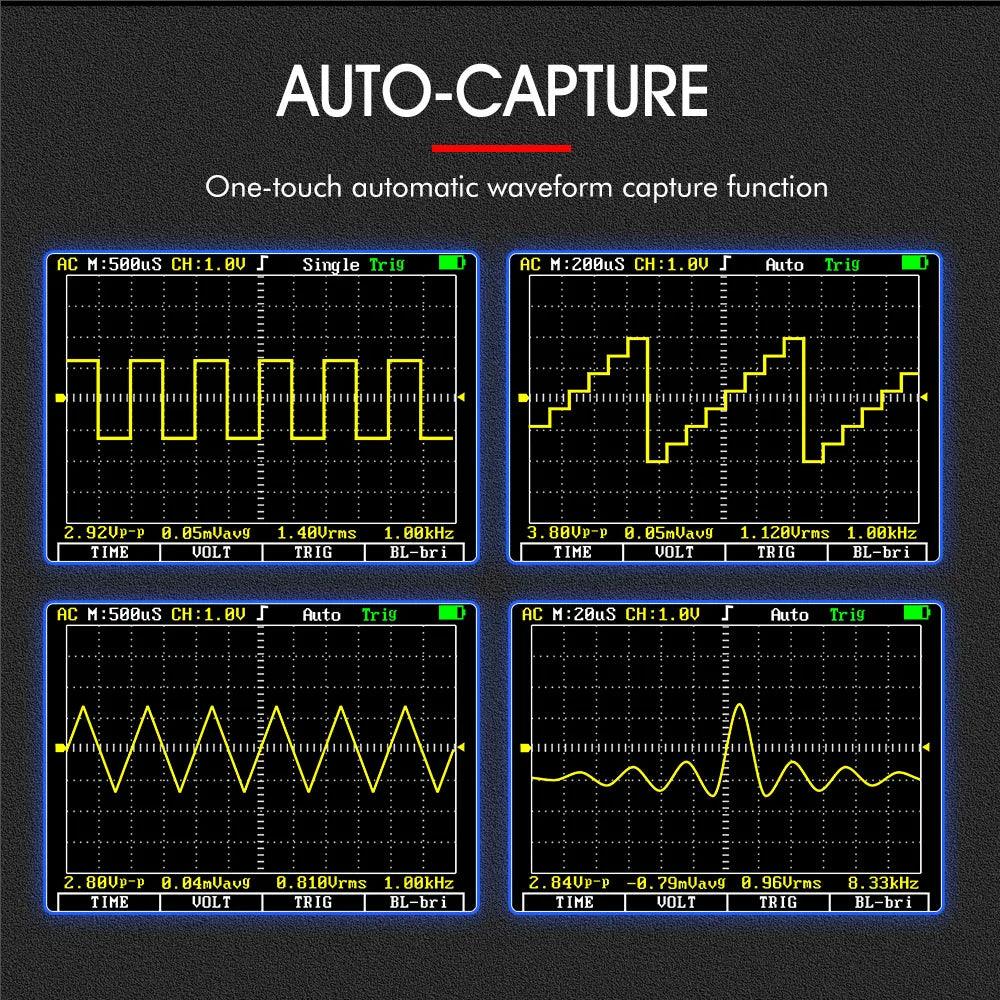

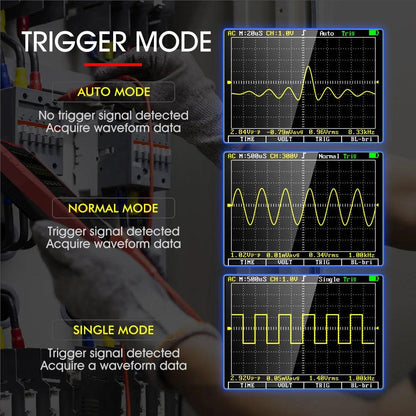

Trigger Mode: Auto/Single/Normal

Measurement Function: Vp-p,Vavg,Vrms,Hz

Input Resistance: Approx. 10MΩ

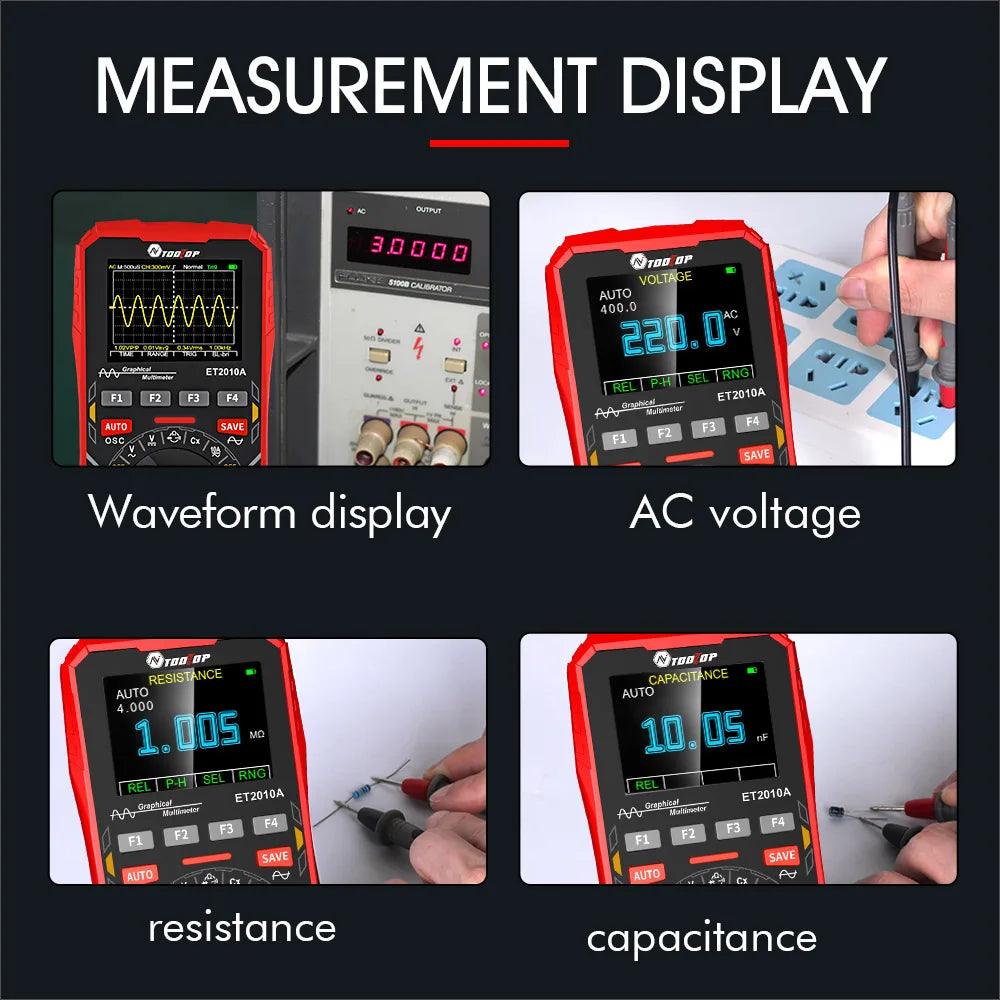

Digital multimeter: Auto range

DC voltage: 400mV-600V

AC Voltage: 400mV-600V

DC current: 4A-10A

AC Current: 4A-10A

Resistance: 400Ω-40MΩ

Capacitance: 51.2nF-100uF

Frequency: 5Hz-5MHz

Percentage: 0%-100%

Diode: Votage is about 1.5V

On-off buzzer: resistance <50Ω, buzzing sound

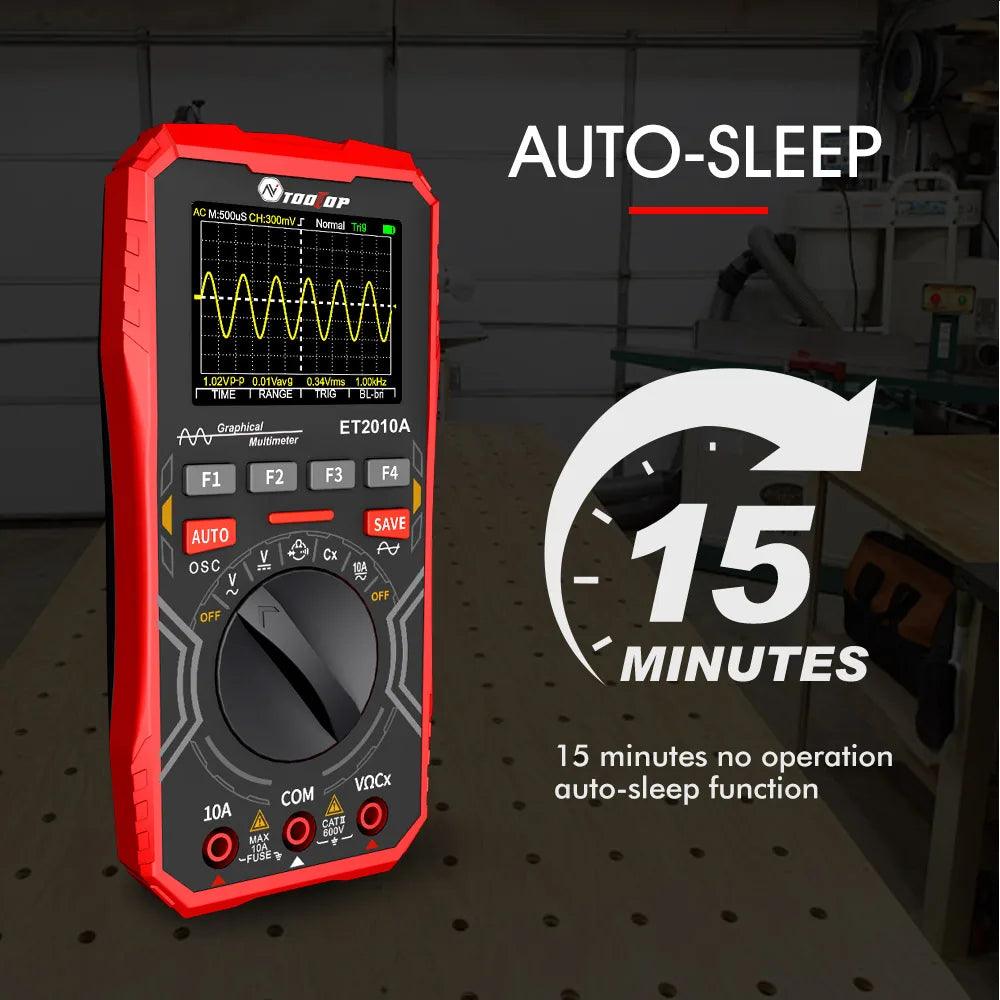

Automatic shutdown: no operation for about 15 minutes

Operating environment: 0℃-40℃, <75%RH

Storage environment: -10℃ to 60℃, <90%RH

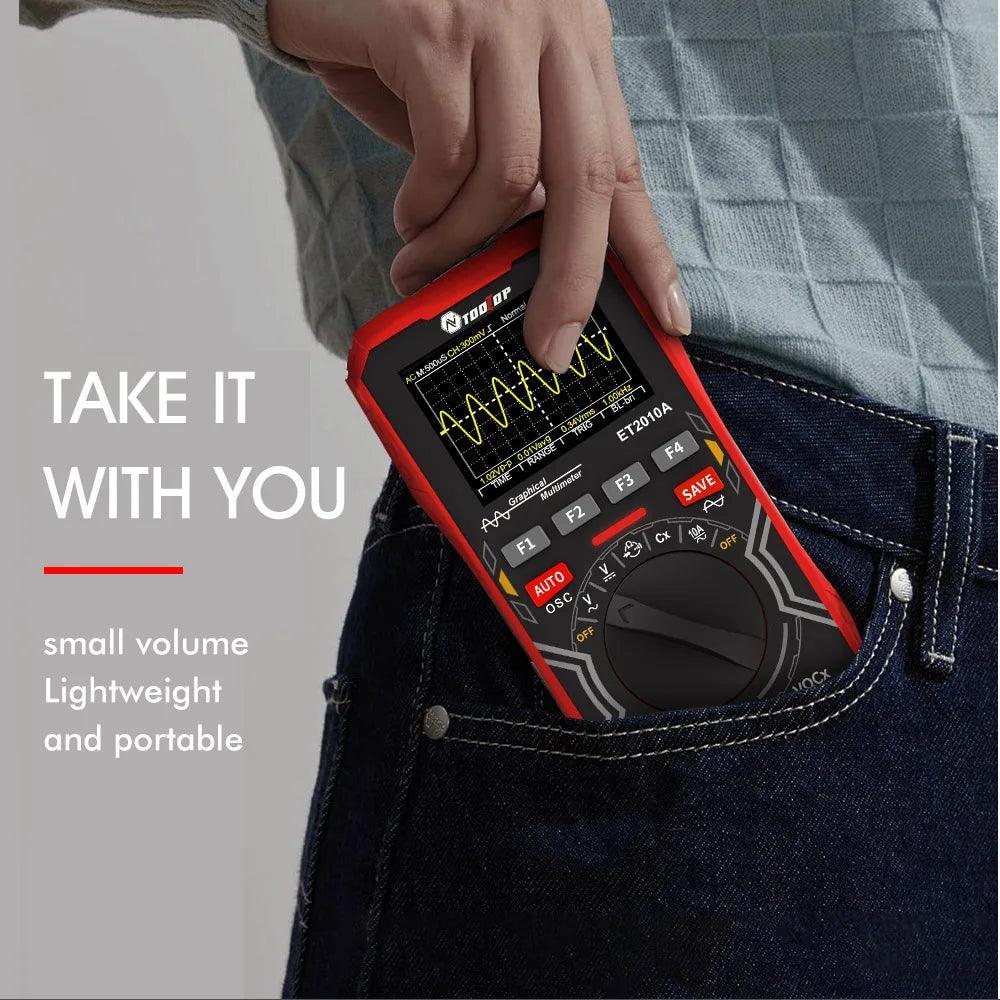

Oscilloscope Multimeter Size: 157x77x25.5mm

Oscilloscope Multimeter Weight: About 135g

Power supply: AA batteryX3 (battery not included)

Brand Name: cretrust

Model Number: ET2010A

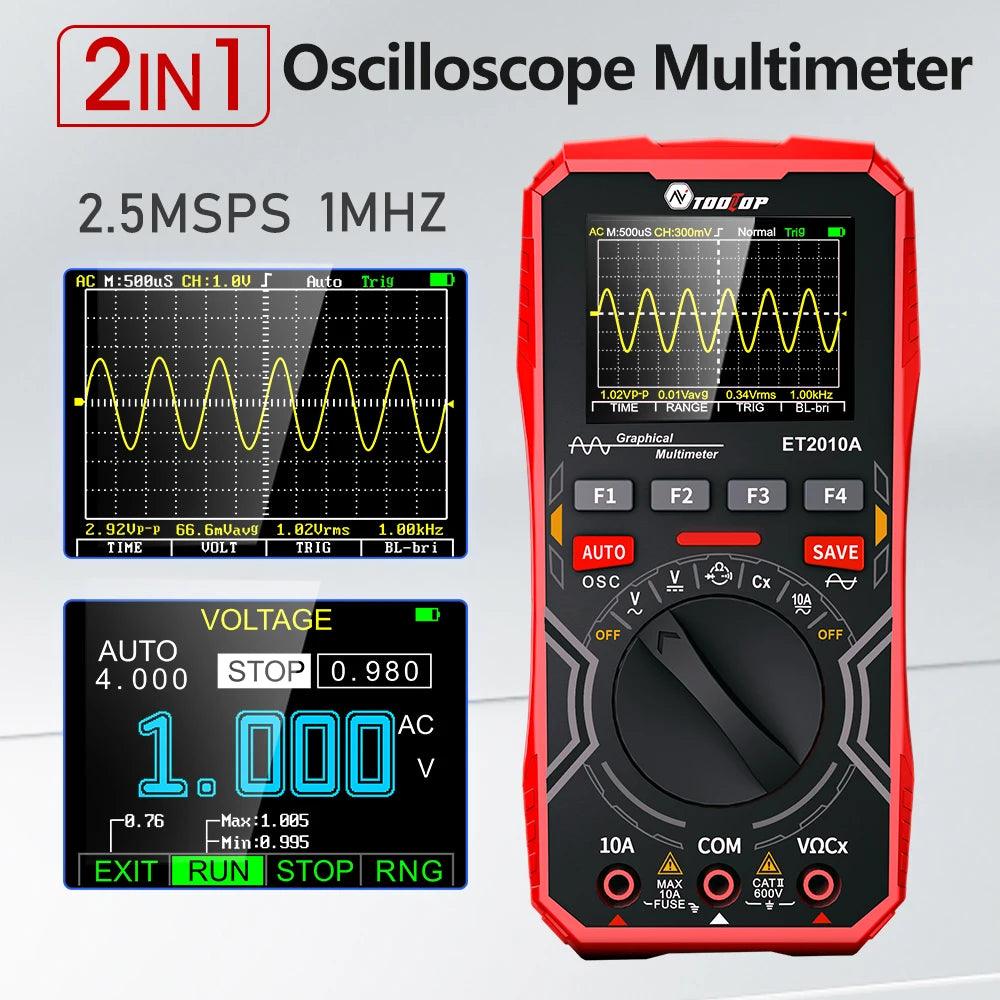

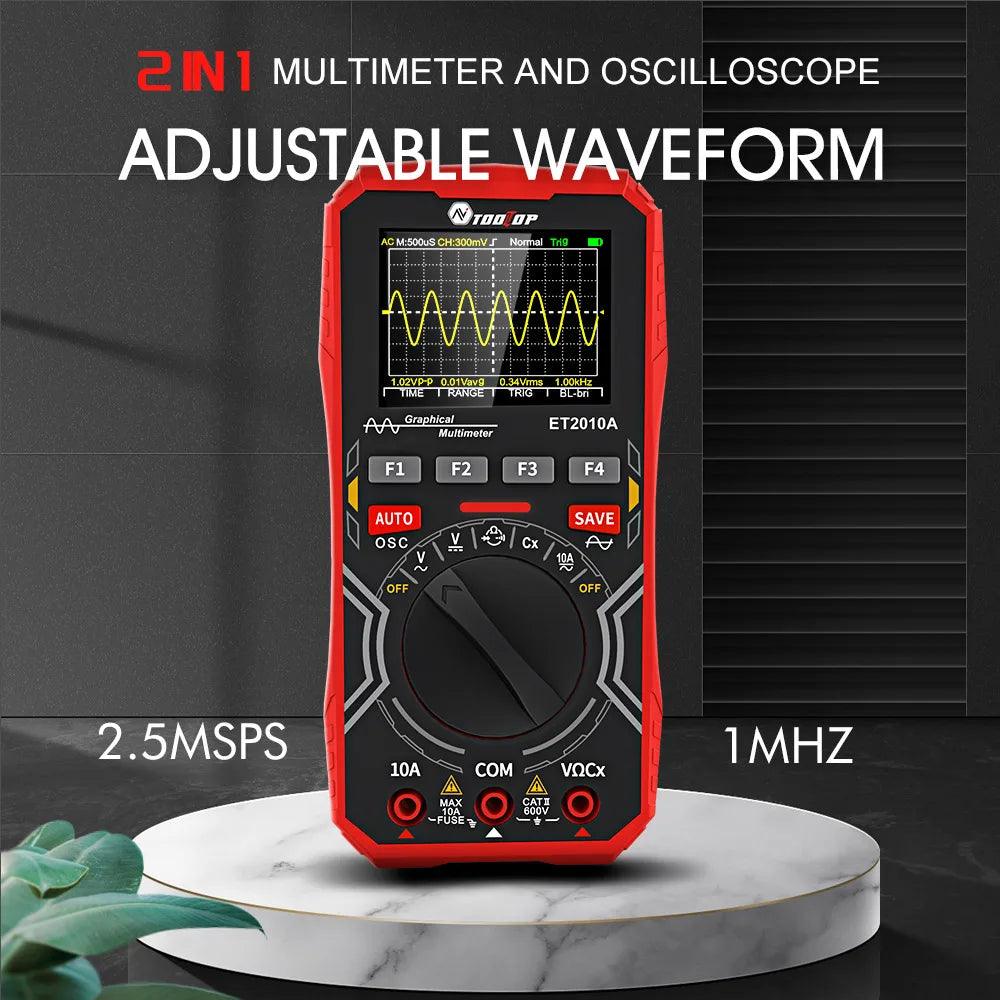

Real Time Sampling Rate: 2.5MS/s

Hign-concerned Chemical: None

Digital Channels: 1

Band Width: 1Mz

IS Battery Demountable: Yes

Origin: Mainland China

Display resolution: 320*240 Pixels

Display Size: 2.9 Inches & Under

Certification: CE

Certification: FCC

DIY Supplies: ELECTRICAL
