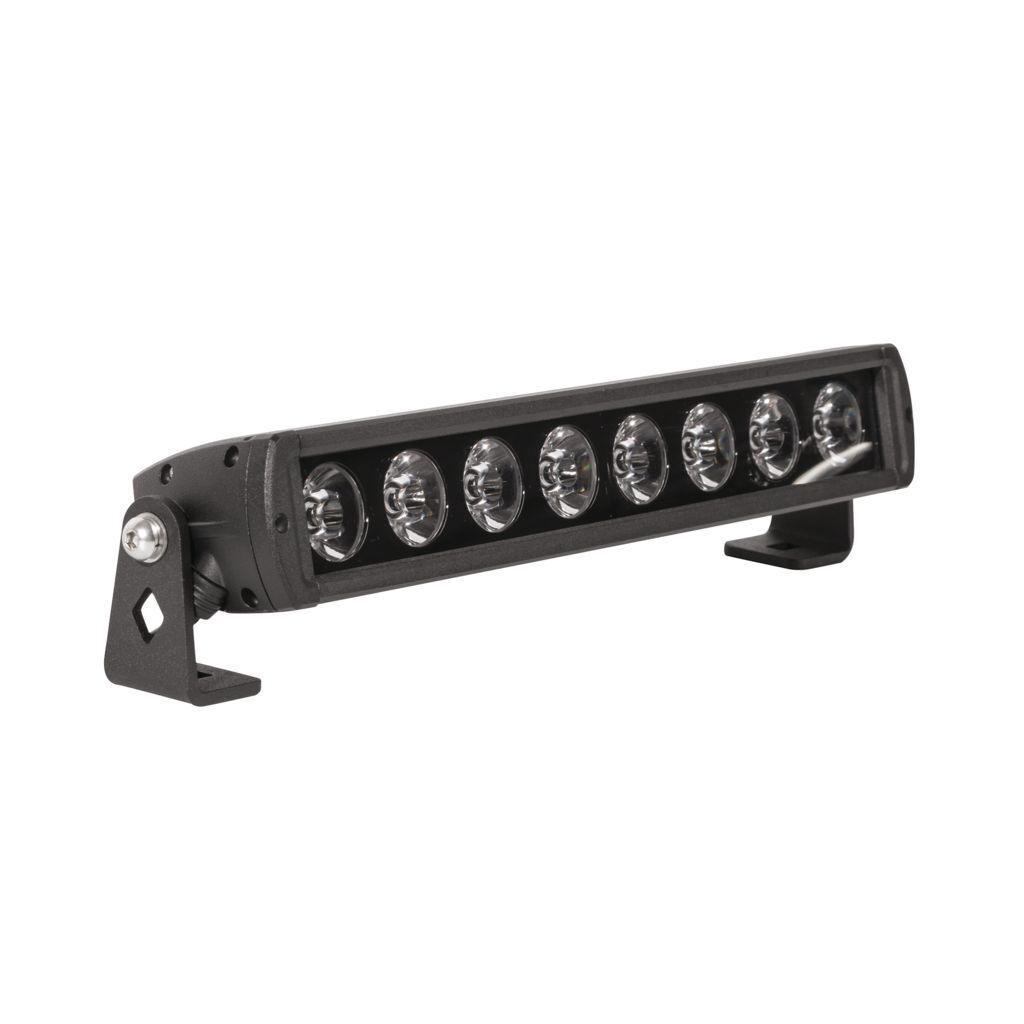

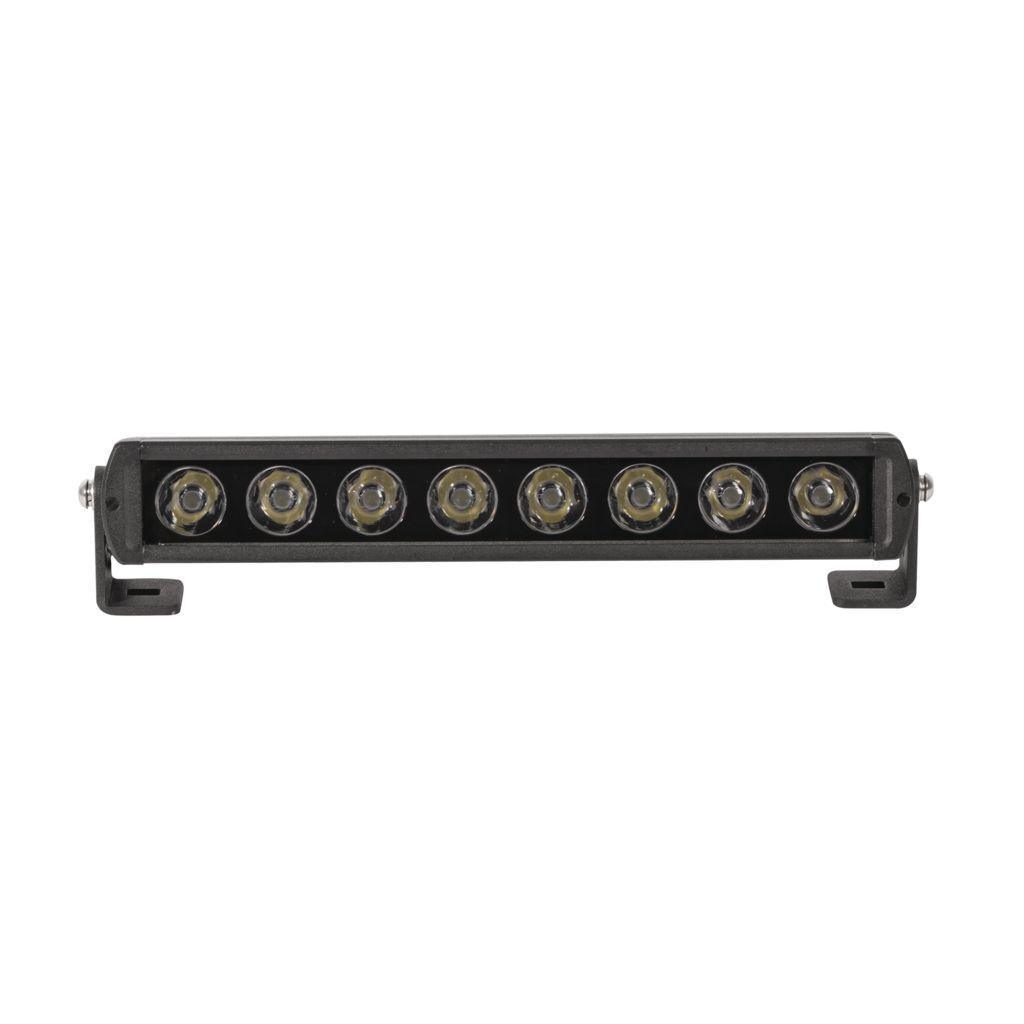

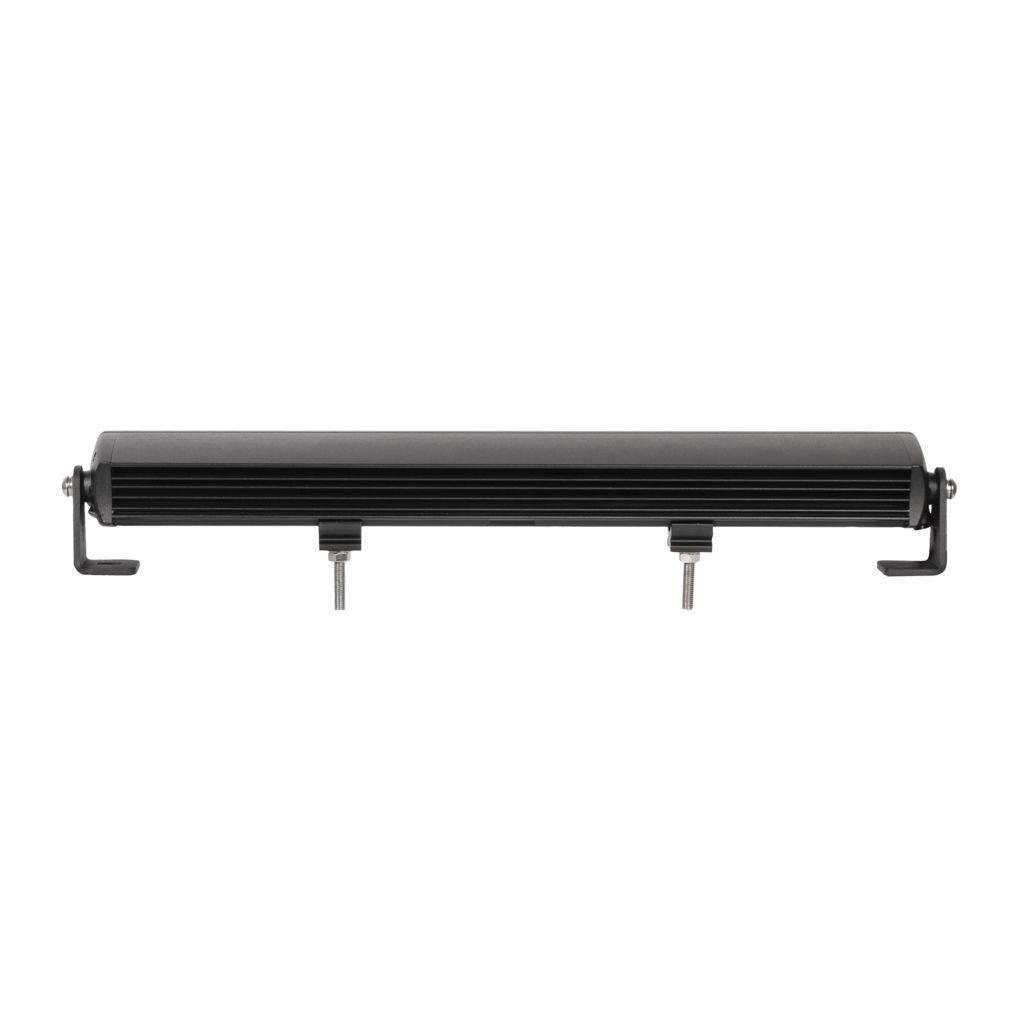

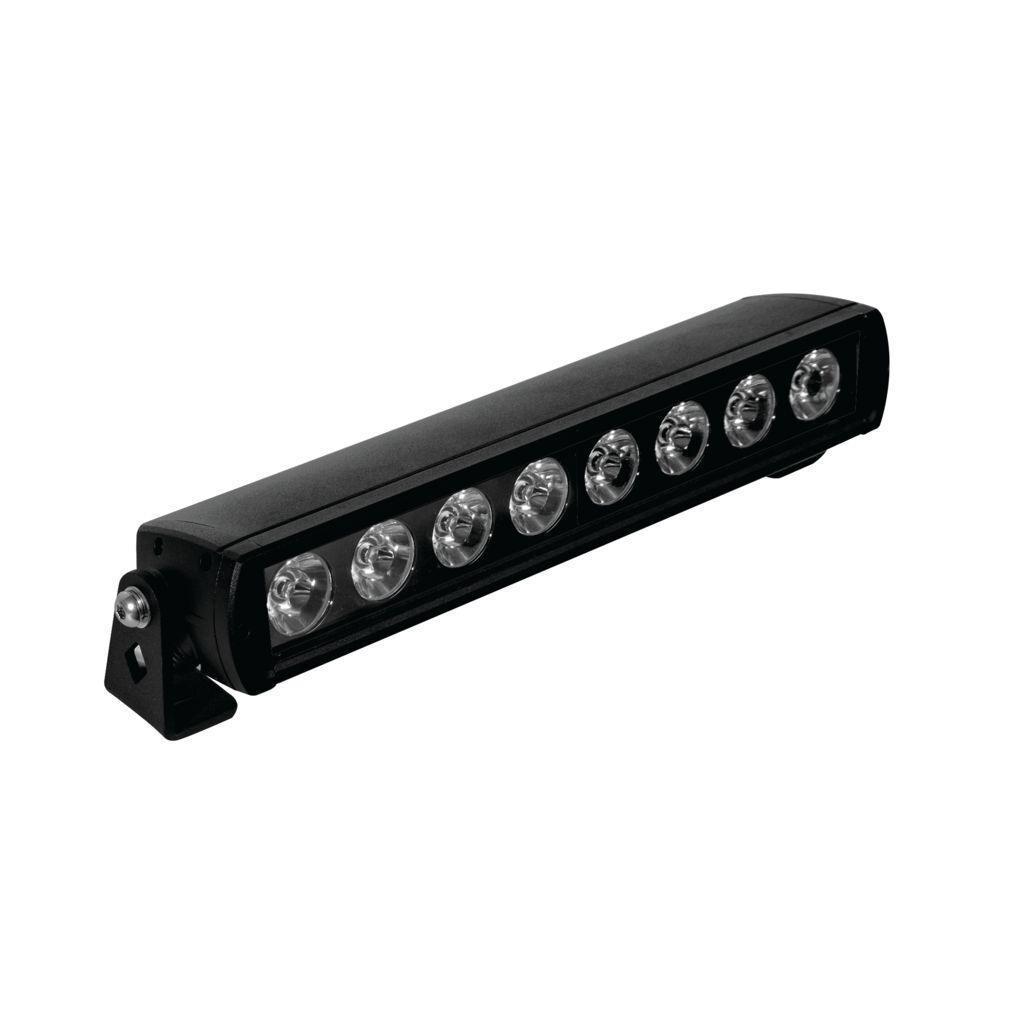

14” Led Lightbar Spot Beam 350MM

Features

• Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 80 Watt
• Integrated Electronic Thermal Management (ETM)
• Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
• Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
• Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
• 500mm Lead with 2 Pin Deutsch Plug
• Over and Under Voltage Protection
• Reverse Polarity Protection
• 8 x 10 Watt High Intensity Osram LED's
• UV, Water and Shock resistant
• 50,000 Hours LED Lifespan
• ECE R112, R10 and CE Approved
• IP68 and IP69K Rating
• Environment Temperature: -40°C ~ +60°C
• 5 Year Warranty

Spare Parts:-

• INPB001 Licence Plate Mounting Bracket
• IBB50MM Round Bullbar Mounting Bracket 50mm
• IBB64MM Round Bullbar Mounting Bracket 64mm
• Spot (Pencil) Beam Pattern 15 Degrees
• IBB76MM Round Bullbar Mounting Bracket 76mm
• IAS40MM 40mm Spacer Mounting Bracket
• IBB01 Back Mounting Bracket
• IBB02 Spare Bottom Mounting Bracket

8,280 Raw Lumens, 1 Lux @ 392m and 6,000K
Current Draw: 5amp @ 12 Volt and 2.6amp @ 24 Volt
Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
Light Transmittance >95%

Specifications
