Reverse Camera 9" Touch Screen HD Mirror Display

Name: Reverse Camera 9" Touch Screen HD Mirror Display
Brand: Gator
SKU: GRV90MKT
Price: 199.0 AUD
Availability: InStock

$199.00

Sale Sold out

Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $49.75 AUD fortnightly with More info

Product variants

Quantity

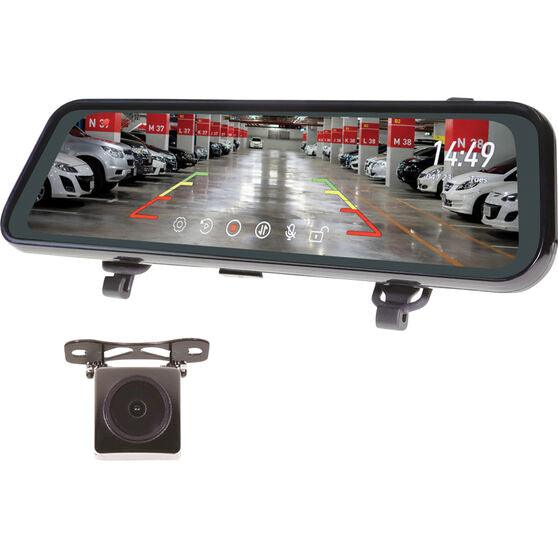

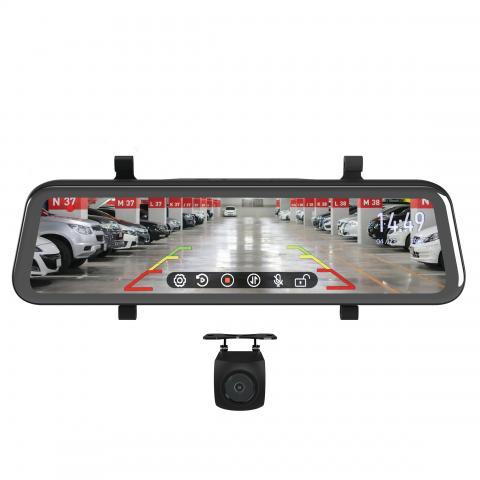

Reverse, live streaming and recording capabilities, the Gator GRV90MKT provides the ultimate surveillance and protection for the rear of your vehicle. Featuring a super wide 9" high resolution touch display and HD 1080P camera, the mirror monitor simply clips over the existing rear view mirror on the vehicle for convenient unobtrusive viewing. While driving, the mirror monitor will simply appear as a standard reflective mirror and also has the ability to live stream, displaying what is behind the vehicle in real time, which is ideal for Trucks, Utes, Vans and Motorhomes which may have limited rear vision. When reverse gear is selected, the monitor will automatically switch to the reverse camera and display parking gridlines to provide guidance when reversing. GRV90MKT also has a built in G-Sensor and loop records, simply add a Class 10 micro SD card up to 64GB to the unit and it will capture any incidents or events that may occur at the rear of the vehicle.

Specifications

MONITOR SPECIFICATIONS

MONITOR SIZE: 9.35"
MOUNTING TYPE: CLIP ON REAR VIEW MIRROR
INPUT VOLTAGE: 5V (12/24V ACCESSORY POWER ADAPTER INCLUDED)
VIDEO INPUTS: 1
CONNECTION TYPE: 2.5MM JACK
DIMENSIONS: 72mm(H) X 260mm(W) X 18mm(D)

REAR CAMERA SPECIFICATIONS

MOUNT TYPE: SURFACE MOUNT
CAMERA RESOLUTION: 1080P
CAMERA ANGLE: 110 DEGREE
IMAGE SENSOR (CMOS or CCD): CMOS IMX323
PARKING GRIDLINES: YES
IP RATING: IP65
INPUT VOLTAGE: 12V
CONNECTION TYPE: MICRO 4 PIN
VIDEO CABLE LENGTH: 5.4M (Additional 3M Extension Cable Also Available - GRV90EXT - sold separately)
REVERSE TRIGGER ON VIDEO CABLE: YES
DIMENSIONS (Camera Only): 19mm(H) x 24mm(W) x 22mm(L)

RECORDING SPECIFICATIONS

NUMBER OF CHANNELS: 1
RESOLUTION: FULL HD 1080P (REAR)
FRAMES PER SECOND: 25 (REAR)
CAMERA ANGLE: 110° (REAR)
G-SENSOR: YES
SUPER CAPACITOR / BATTERY: 400MAH 3.7V BATTERY
AUTO POWER ON/OFF: YES
MICROPHONE: YES
SPEAKER: YES
USB/POWER INPUT: YES (MICRO)
HARD WIRE KIT: OPTIONAL
POWER ADAPTOR VOLTAGE: 12/24V
DASH CAM INPUT VOLTAGE: 5V 1.5A
RECORDING MODES:
CONTINUOUS LOOP: YES (SEAMLESS CYCLE RECORDING)
DRIVING IMPACT/INCIDENT DETECTION: YES
MANUAL (SOS): YES
PARK IMPACT DETECTION: NO
PARK MOTION DETECTION: NO
MEMORY CARD CAPACITY / CLASS: SUPPORTS UP TO 64GB (CARD MUST BE C6 OR ABOVE, C10 IS RECOMMENDED)

KIT SPECIFICATIONS

WIRED OR WIRELESS: WIRED
INCLUSIONS:
6M CAMERA CABLE (INCLUDING CAMERA LEAD)
USB LEAD

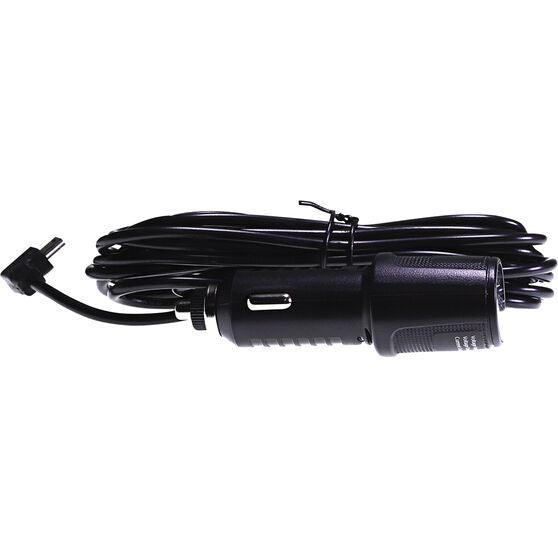

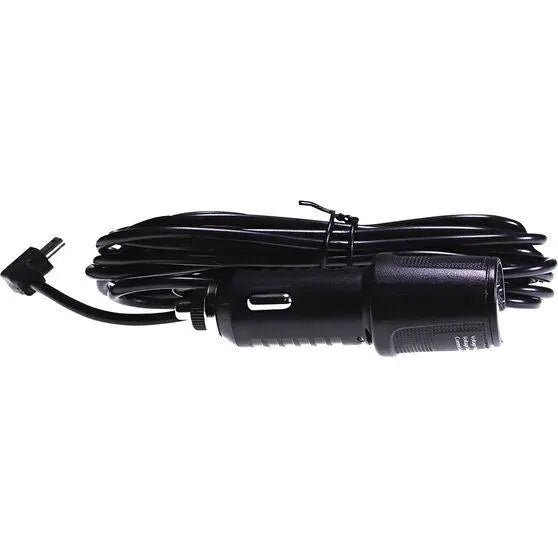

12V/24V CHARGING ADAPTER
MOUNTING SCREWS
3M ADHESIVE FOR BUTTERFLY CAMERA
MIRROR PROTECTING PADS
RUBBER MOUNTING CLIPS

OPTIONAL EXTRAS AND SPARE PARTS

OPTIONAL EXTRAS:
GRV90EXT: 3M Video Extension Cable
GUNIHWC: Hard Wire Kit
SPARE PARTS (Not in retail packaging & no barcode)
GRV9RC: Replacement Rear Camera
GRV9LOOM: Replacement main camera harness (4 pin to 2.5mm jack)
GRV912V: 12/24V Cigarette lighter adapter
GRV9RMC: Monitor rubber mounting clips
GRV9BRA: Monitor mounting brackets

Features

9" high resolution super wide LCD touch screen mirror monitor
1080P High definition camera with video recording at 30 fps for clear crisp recordings (optional micro SD card required, sold separately)

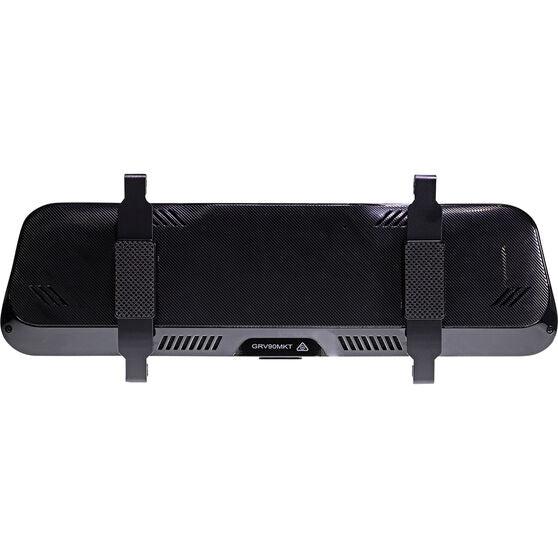

Rubber clip-on mirror mount for simple and secure installation, suitable for all vehicles with a rear-view mirror
110-degree wide angle camera lens reduces blind spots at the rear of the vehicle
Automatic reverse trigger displays reverse image and parking gridlines when reverse gear is engaged to assist with reverse parking
Live streaming function enables the monitor to display rear vision while driving, ideal for vehicles with limited rear vision
Built in G-Sensor detects an impact and securely saves the video footage on the micro SD Card separate from the continuous loop files (optional micro SD card required, sold separately)
Seamless cycle loop recording function continuously records in an indefinite loop without stopping, constantly overwriting the oldest file with the newest video (optional micro SD card required, sold separately)
Supports Micro SD card class 10 up to 64GB (sold separately)

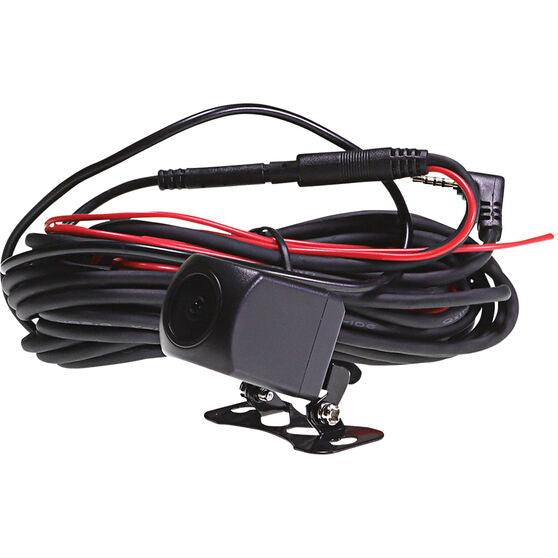

Includes a 5.4m rear camera cable with trigger wire to connect the rear cam to the monitor
GRV90EXT 3m extension cable also available if extra length is required for installation in longer vehicles such as; utes, trucks and vans (sold separately)
GUNIHWC Hard Wire Kit available for connection via vehicle fuse box instead of using the included accessory socket power adaptor (sold separately)
Also includes USB lead, mounting screws, 3M adhesive, mirror protector pads and rubber mounting clips
