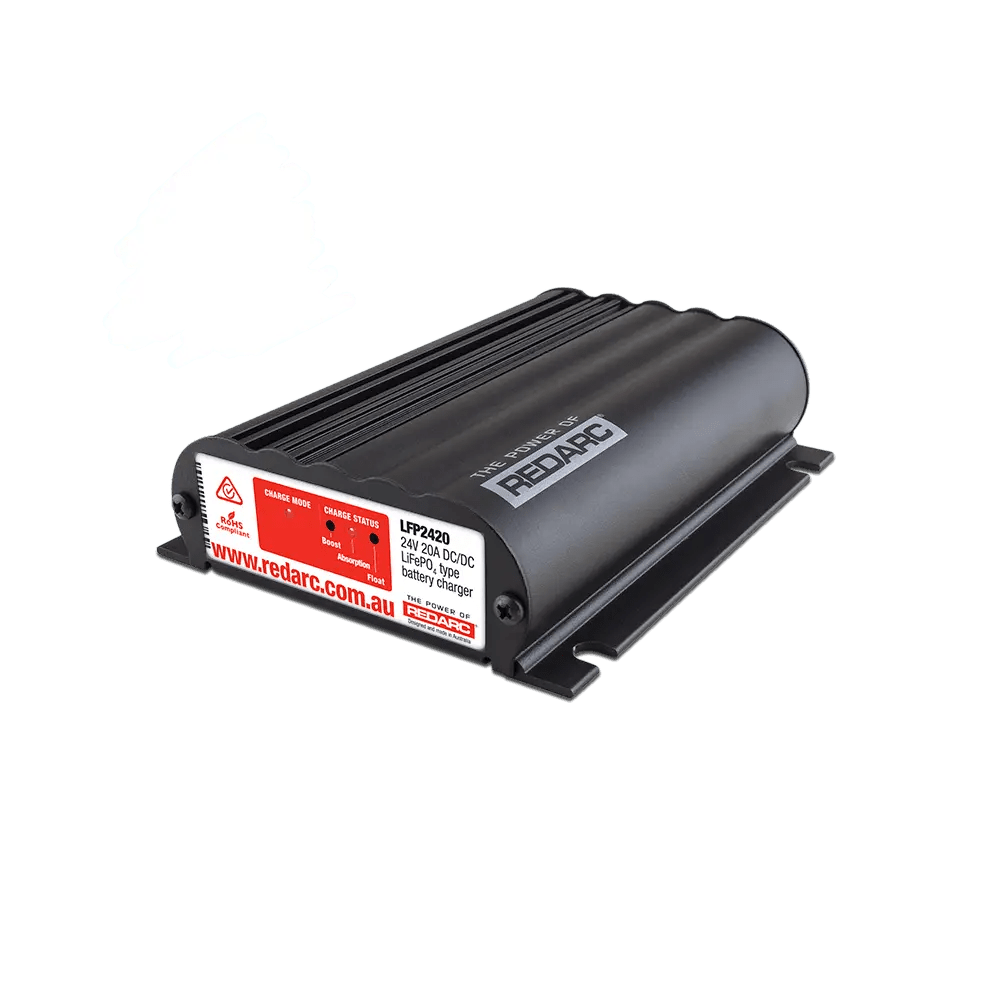

Redarc 24V 20A DC/DC Charger (Under Bonnet) LITHIUM

The REDARC LFP2420 In-vehicle battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge Lithium Iron Phosphate (LiFeP04) batteries to their optimal level with chemistry specific battery charging algorithms.

The LFP2420 features a three stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.

The LFP2420 features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.

Features

Three Stage DC to DC Battery Charger
MPPT Solar Regulator
Start Battery Isolator
Fully sealed
No fan for super quiet operation
Charges Lithium Iron Phosphate (LiFeP04) batteries

Input Charge Vehicle or solar
Installation Type In-cabin or under bonnet
Output Current Rating (Cont.) 20A
Current Rating (Continuous 20°C) 20A
Input Fuse Rating 60A/40A (Not supplied)
Output Fuse Rating 30A (Not supplied)
Output Power 600W
Output System Voltage 24VDC
Input (Operating) Voltage 9-32V
Open Circuit Voltage 17.5V-32.0V
Battery Type LiFePO4
Absorption Stage Voltage Level 28.8V
Float Stage Voltage Level 27.2V
No Load Current <100mA
Standby Current Draw <8mA
Ambient Temperature -20ºC to +80ºC
Minimum O/P Battery Volts 4.2V
Weight (kg) 0.68
Main Unit Dimensions 150x120x37mm
Warranty 2 Years
Type Approval CE, C-Tick, AS/NZS CISPR11:2004
