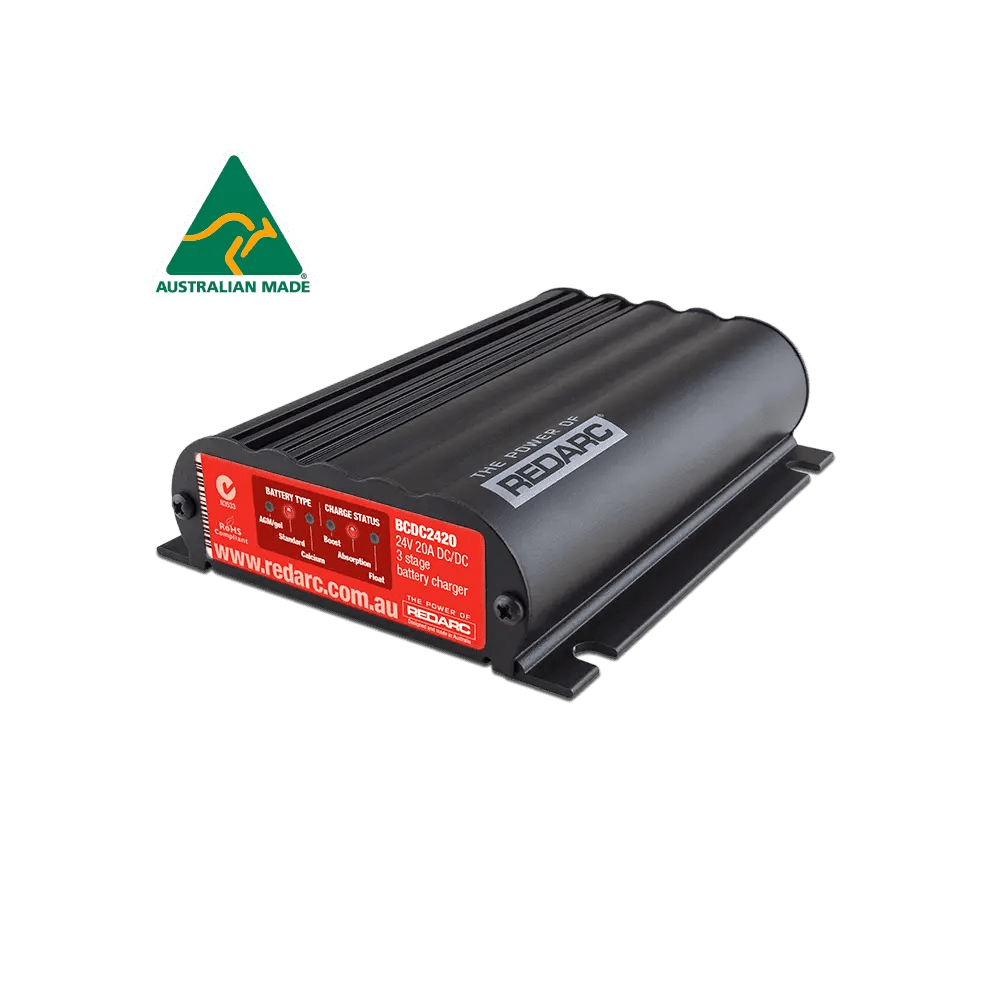

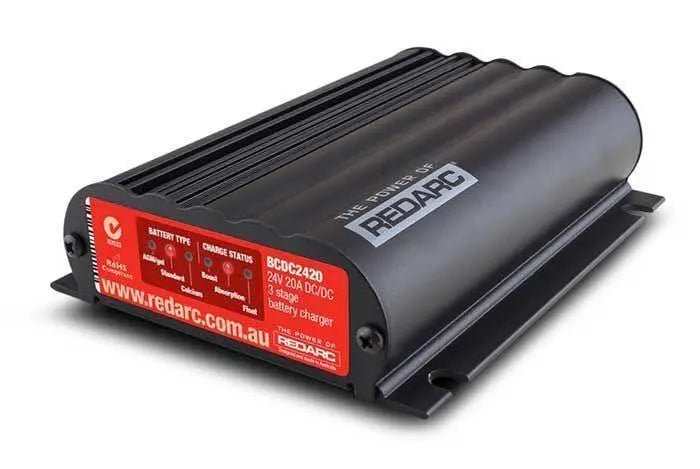

Redarc 24V 20A DC/DC Charger (Under Bonnet)

The REDARC BCDC2420 battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge any commonly used automotive 24V battery system to an optimal level with chemistry specific battery charging algorithms.

Fully potted and sealed, this DC-DC charger is perfect for under bonnet installations to withstand heat, water, dust and vibration to deliver perfect performance every time.

The BCDC2420 features a multi-stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.

The BCDC2420 features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.

Features

Multi-Stage DC to DC Battery Charger
MPPT Solar Regulator
Start Battery Isolator
Fully sealed
No fan for super-quiet operation
Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries

Input (Operating) Voltage 9 - 32VDC
Maximum Charging Voltage 30.6V
Output Current Rating (Cont.) 20A
Input Fuse Rating 50A
Output Fuse Rating 30A
Warranty 2 Years
Standby Current Draw <50mA
Output System Voltage 24VDC
Output Power 600W
Length (mm) 150
Width (mm) 120
Height (mm) 37
Weight (kg) 0.68
Type Approval E and CE
Input Charge Vehicle or solar
Installation Type In-cabin or under bonnet
