Enerdrive Dometic

B-TEC 300amp / 12V LiFePo4 Battery Gen2

B-TEC 300amp / 12V LiFePo4 Battery Gen2

Regular price $3,210.00
Regular price $4,020.00 Sale price $3,210.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

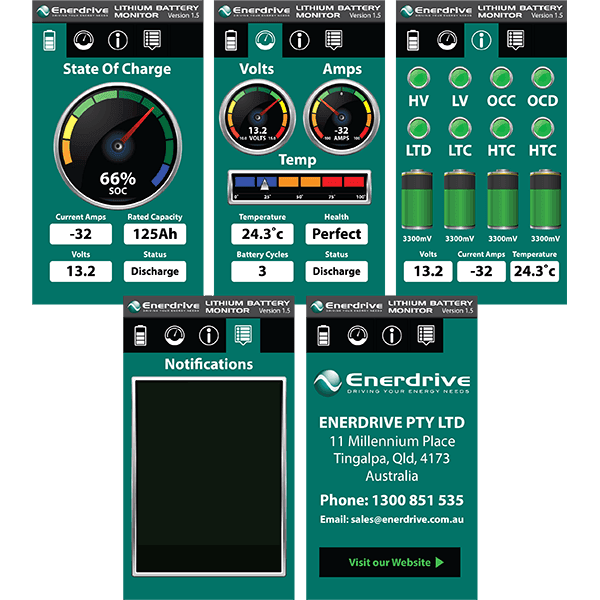

The Enerdrive Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

  •     Battery Capacity
  •     Battery Voltage
  •     Battery Current (Amps)
  •     Battery State of Charge (SOC)
  •     Battery State of Health (SOH)
  •     Battery Status
  •     Individual Cell Voltage
  •     Battery Temperature
  •     Battery Cycles
  •     Battery Alarms
  •     Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY

*PLEASE NOTE, OCCASIONALLY  SOME BATTERY PRODUCTS CAN HAVE WAIT TIMES FOR PRODUCTION OF UP TO 4 WEEKS*  WE RECOMMEND CONTACTING US IF YOU HAVE ANY QUESTIONS ON STOCK AVAILABILITY

Specifications

Nominal Voltage 12.8V
Nominal Capacity 300Ah
Cycle Life (DOD - 80% controlled conditions) ≥2000 Cycles
Battery Charger Temperature 0~45°C
Nominal Charge Voltage CV/CC* 14.20~14.60V
Standy (Float) Voltage 13.50 ̴ 13.80V
Maximum Charge Current 190A @ 25°C for 30mins
Recommended Charge Current 80~120A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge/Pulse Current 250A @ 25˚C ±5˚C for 15 mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤11.20V
Over-charge Protection Per Cell 3.90V ± 0.03V
Over-charge Release Per Cell 3.60V ± 0.05V
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Discharge Over Current 280A for 25s – 400A for 3.5s
Protection Reset Time Approx 10s Auto Release
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Short Circuit Protection Auto release after 5s
Dimensions (LxWxH) 521mm x 280mm x 238mm
Weight 38.2kg
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Self-discharge Rate ≤ 3% Per Month
