Enerdrive Dometic

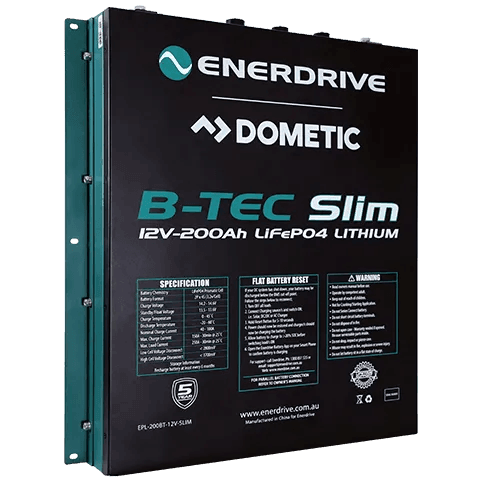

B-TEC 200amp / 12V LiFePo4 Slim Metal Case Battery

B-TEC 200amp / 12V LiFePo4 Slim Metal Case Battery

Regular price $2,999.00
Regular price $3,245.00 Sale price $2,999.00
Sale Sold out
Tax included. Shipping calculated at checkout.
The Slimline incorporates a “Built-In Reset Port" with a separate plug for wiring in a Remote switch making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the remote reset button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.
  • Extremely compact size W 530 x H 600 x D 83 mm. All connection points for the battery are at one end including all Comms Ports and Reset Port.
  • Reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water tight with less chance of water ingress.
  • Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality.
  • Water resistant metal casing meeting IP64 rating and all external bolts and fittings are blind so limits the chance for water to travel from external to internal. Rubber style seals between all metal framing. Frames overlap as well to help avoid water ingress.

The Enerdrive B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

  •     Battery Capacity
  •     Battery Voltage
  •     Battery Current (Amps)
  •     Battery State of Charge (SOC)
  •     Battery State of Health (SOH)
  •     Battery Status
  •     Individual Cell Voltage
  •     Battery Temperature
  •     Battery Cycles
  •     Battery Alarms
  •     Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

The 200Ah Slimline battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY

*PLEASE NOTE, OCCASIONALLY  SOME BATTERY PRODUCTS CAN HAVE WAIT TIMES FOR PRODUCTION OF UP TO 4 WEEKS*  WE RECOMMEND CONTACTING US IF YOU HAVE ANY QUESTIONS ON STOCK AVAILABILITY

Specifications

Features

Brand

Enerdrive Dometic

Dimensions

Video

Warranty
